Description

Price

1

CRANKCASE ASSEMBLY

838-15100-01-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, HEXAGON

97013-08050-00

Unavailable

4

BOLT, HEXAGON

97013-08055-00

$2.55

5

BOLT (663)

97013-08060-00

$4.41

6

BOLT(6TC)

97027-08070-00

Unavailable

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

BOLT (248-11361-00)

90116-08064-00

$7.49

9

GASKET, CYLINDER

857-11351-09-00

$4.42

10

CYLINDER 1

(885-11311-00-00)

Unavailable

11

CYLINDER 2

(885-11321-00-00)

Unavailable

12

GASKET, CYL HEAD 1

828-11181-09-00

Unavailable

13

UNAVAILABLE IN PRICE BOOK

8A1-11111-00-00

Unavailable

14

HEAD, CYLINDER 2

885-11121-00-00

Unavailable

15

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

16

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

17

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

18

BOLT, STUD

(95611-08650-00)

Unavailable

19

WASHER, PLATE (397)

90201-08100-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

PIPE, JOINT

8E4-24461-00-00

Unavailable

22

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

23

HOSE (L450)

90445-10144-00

Unavailable

24

CLIP

90467-090A2-00

Unavailable

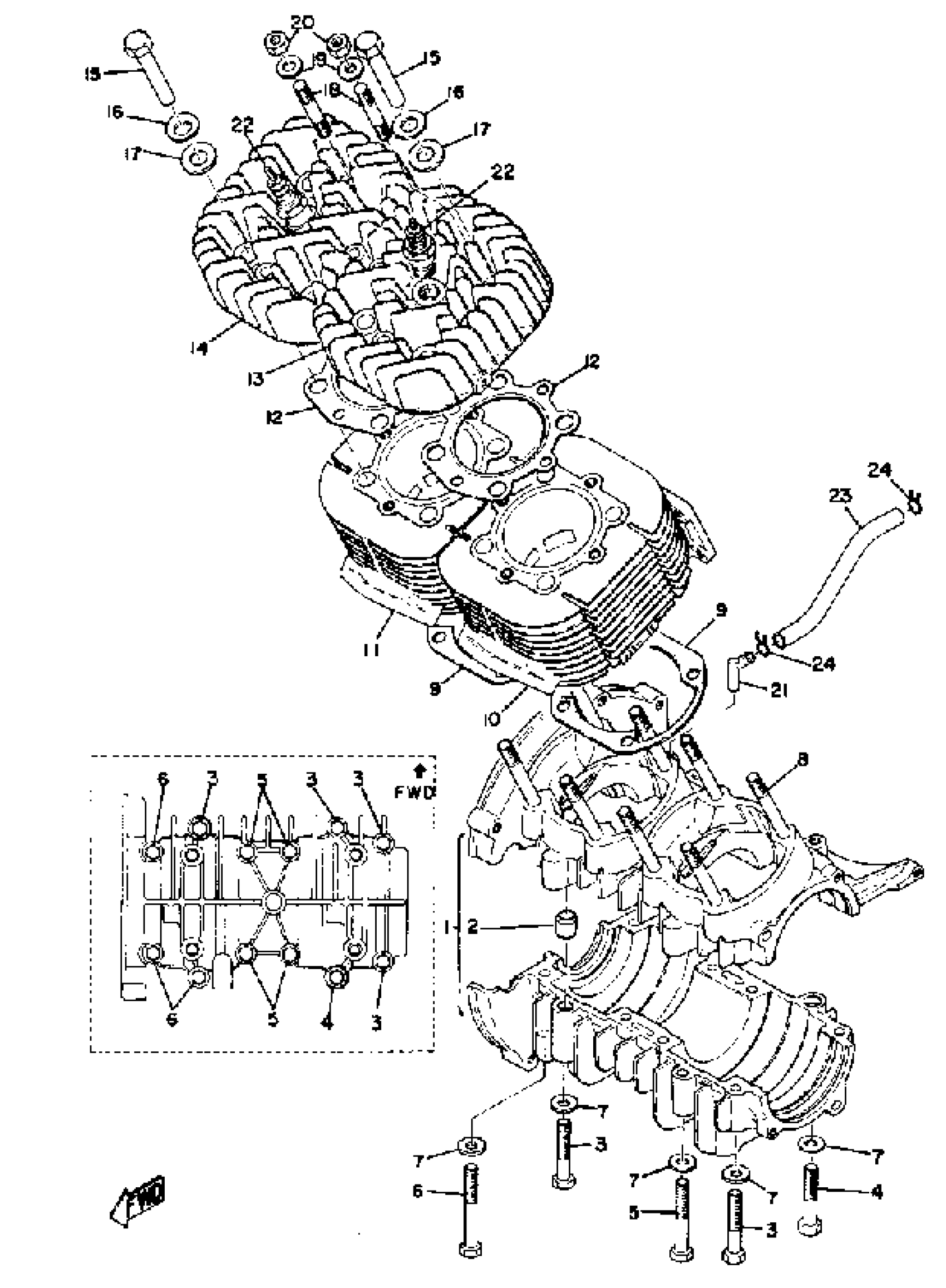

Yamaha GP440 1976 CRANKCASE - CYLINDER Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

BOLT, HEXAGON

BOLT, HEXAGON

BOLT (663)

BOLT(6TC)

.. WASHER, PLATE

BOLT (248-11361-00)

GASKET, CYLINDER

CYLINDER 1

CYLINDER 2

GASKET, CYL HEAD 1

UNAVAILABLE IN PRICE BOOK

HEAD, CYLINDER 2

NUT, SPEC''L SHAPE

WASHER, CONICAL SPRING 12,2 X

YBS66-12 WASHER,PLAIN

BOLT, STUD

WASHER, PLATE (397)

NUT(6L2)

PIPE, JOINT

PLUG, SPARK (NGK BR-9EVX)

HOSE (L450)

CLIP
