1972 Yamaha GP433SS Track Drive Diagram

← All diagrams

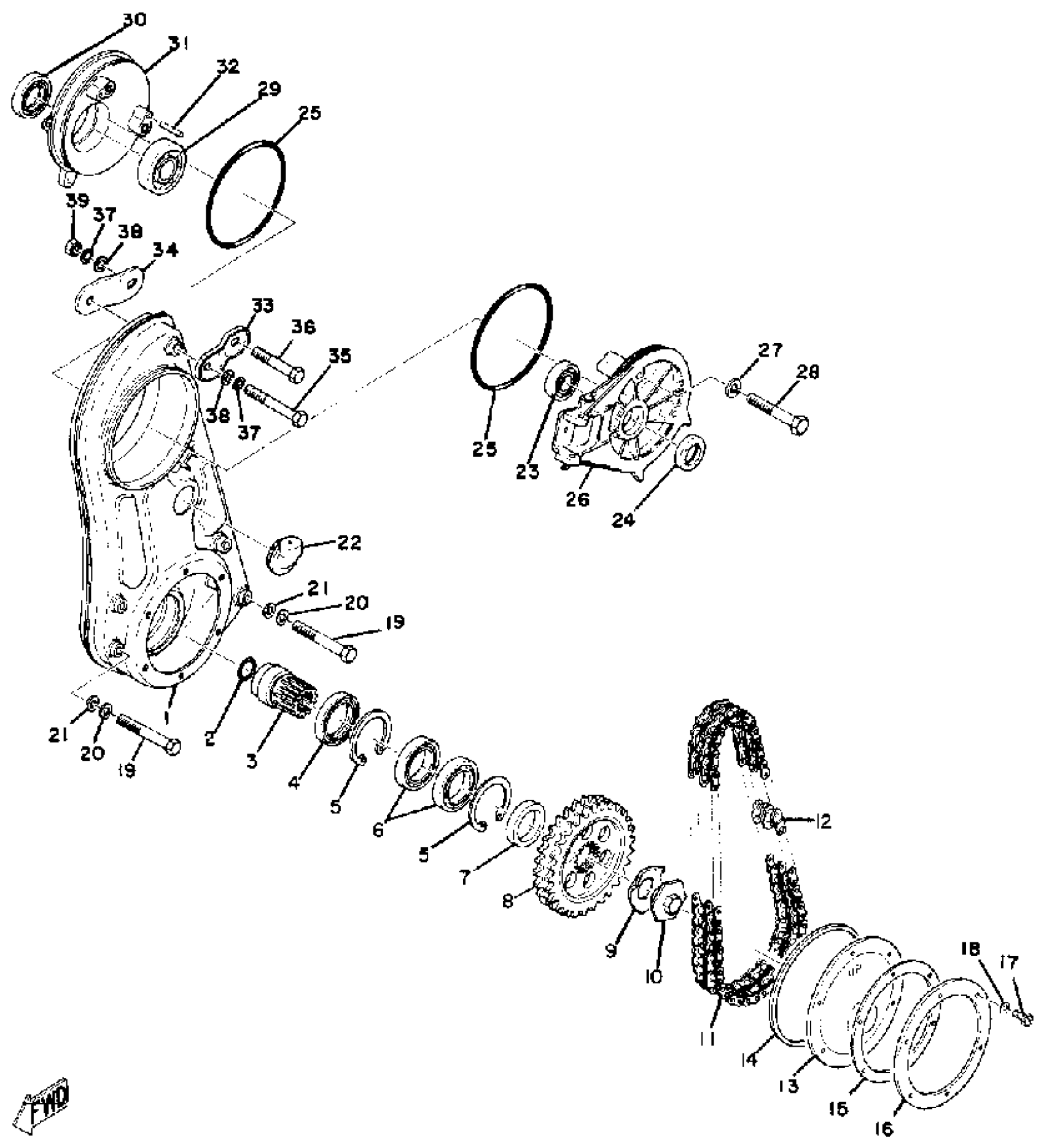

Find the part on the Track Drive diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

820-47541-00-00

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL

810-47571-00-00

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

COLLAR

90387-35205-00

1
Out of stock

8

SPROCKET, CHN DRVN

802-47548-50-00

1
Out of stock

8

SPROCKET, CHAIN DRIVEN (23T)

802-47548-60-00

1
Out of stock

9

SPRING, BELLEVILLE

821-47582-00-00

1
Out of stock

10

BOLT

90109-24203-00

1
Out of stock

11

CHAIN (DK425-2 62L)

94804-25062-00

1
Out of stock

11

CHAIN (DK425-2 64L)

94804-25064-00

1
Out of stock

12

. JOINT CHAIN

94904-25001-00

1
Out of stock

13

CAP, HOUSING

821-47543-00-00

1
Out of stock

14

RING, RUBBER HOUSING

806-47558-00-00

1
Out of stock

15

GASKET

821-47544-00-00

1
Out of stock

16

PLATE

821-47591-00-00

1
Out of stock

17

SCREW

90143-05004-00

—

$2.20

In stock

18

WASHER, SEAL

90210-05005-00

1
Out of stock

19

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER, PLAIN

92903-08200-00

1
Out of stock

22

CAP 2

810-47559-00-00

1
Out of stock

23

BEARING(2JN)

93306-00315-00

—

$27.16

In stock

24

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

25

O-RING

93211-13109-00

1
Out of stock

26

HOUSING, SECONDARY SHAFT LEFT

818-47561-00-00

1
Out of stock

27

WASHER (821)

90210-08002-00

—

$5.68

In stock

28

BOLT (663)

97013-08060-00

—

$3.25

In stock

29

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

30

OIL SEAL (30X47X7-810)

93102-30083-00

—

$11.08

In stock

31

HOUSING, SEC SHAFT

810-47562-00-00

1
Out of stock

32

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

33

STAY1

820-47565-00-00

1
Out of stock

34

STAY 2

820-47566-00-00

1
Out of stock

35

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

36

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

38

WASHER, PLAIN

92903-08200-00

1
Out of stock

39

NUT(6L2)

95333-08600-00

—

$3.20

In stock
