1972 Yamaha GP433SS Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

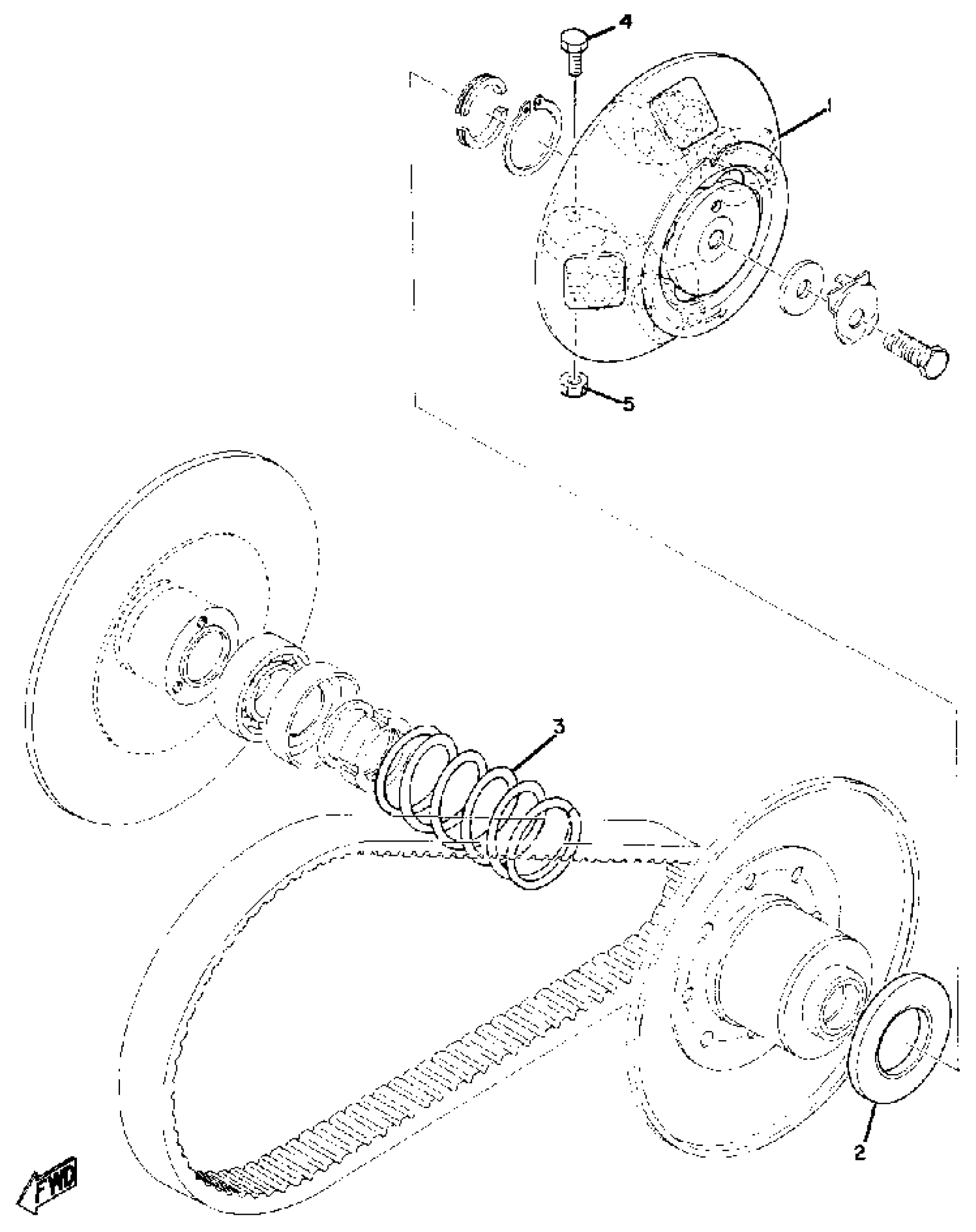

1972 Yamaha GP433SS Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI SHV CAP

829-17630-00-00

1
Out of stock

2

CAM

809-17623-00-00

1
Out of stock

3

SPRING, COMPRESSION (829-17643-70)

90501-50168-00

1
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

5

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
← Primary Sheave Pump Gear Unit →
