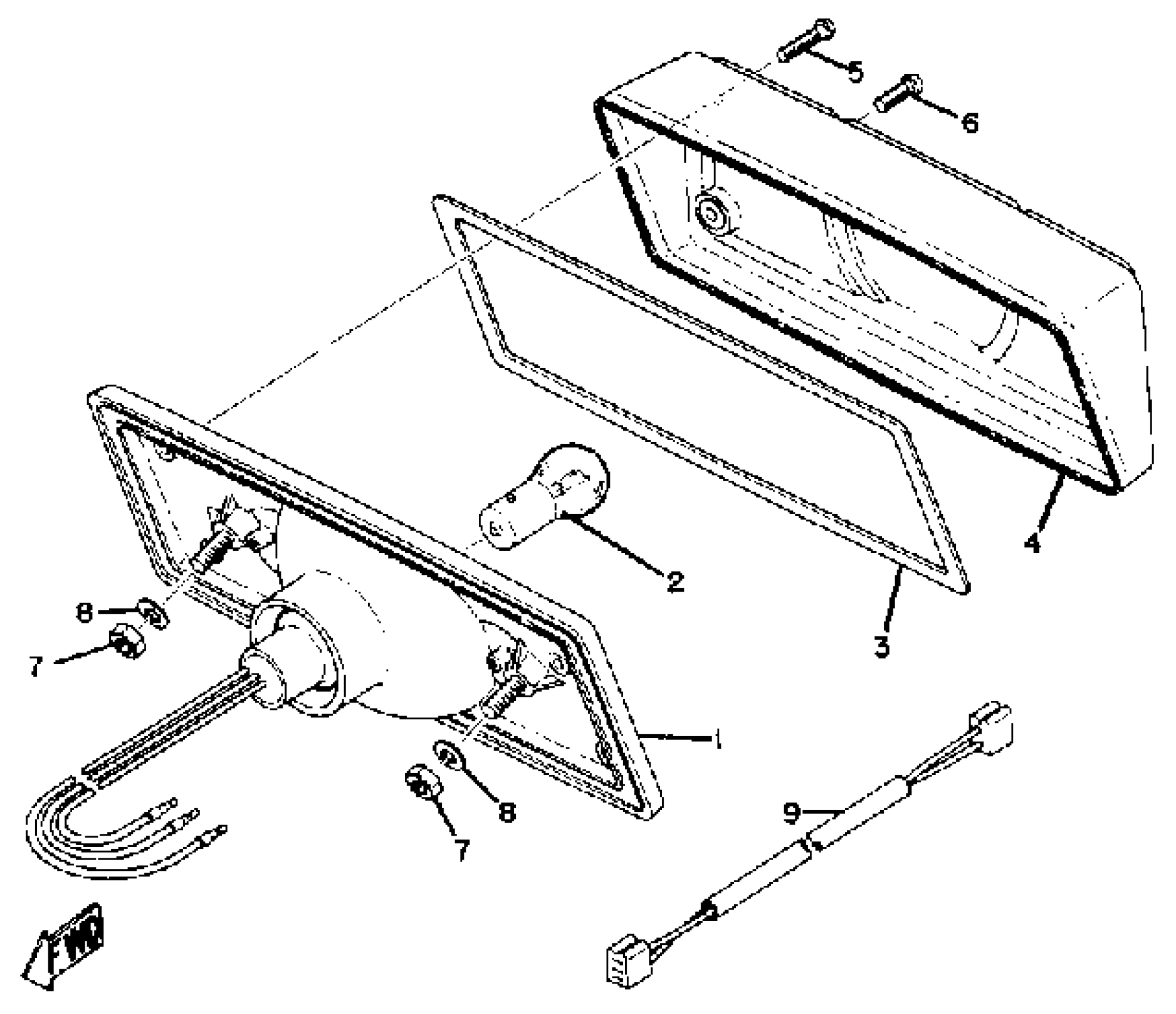

Yamaha GP433SS 1972 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

821-84710-00-00

Unavailable

1

. BASE TAIL LAMP (821-84711-00)

821-84711-01-00

Unavailable

2

. BULB

35R-83311-00-00

Unavailable

3

SEAL

3TJ-14457-00-00

Unavailable

4

. LENS, TAILLIGHT

821-84721-00-00

Unavailable

5

SCREW, PAN

98507-04030-00

Unavailable

6

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

CORD, TAILLIGHT

822-84727-00-00

Unavailable
