1972 Yamaha GP433SS Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

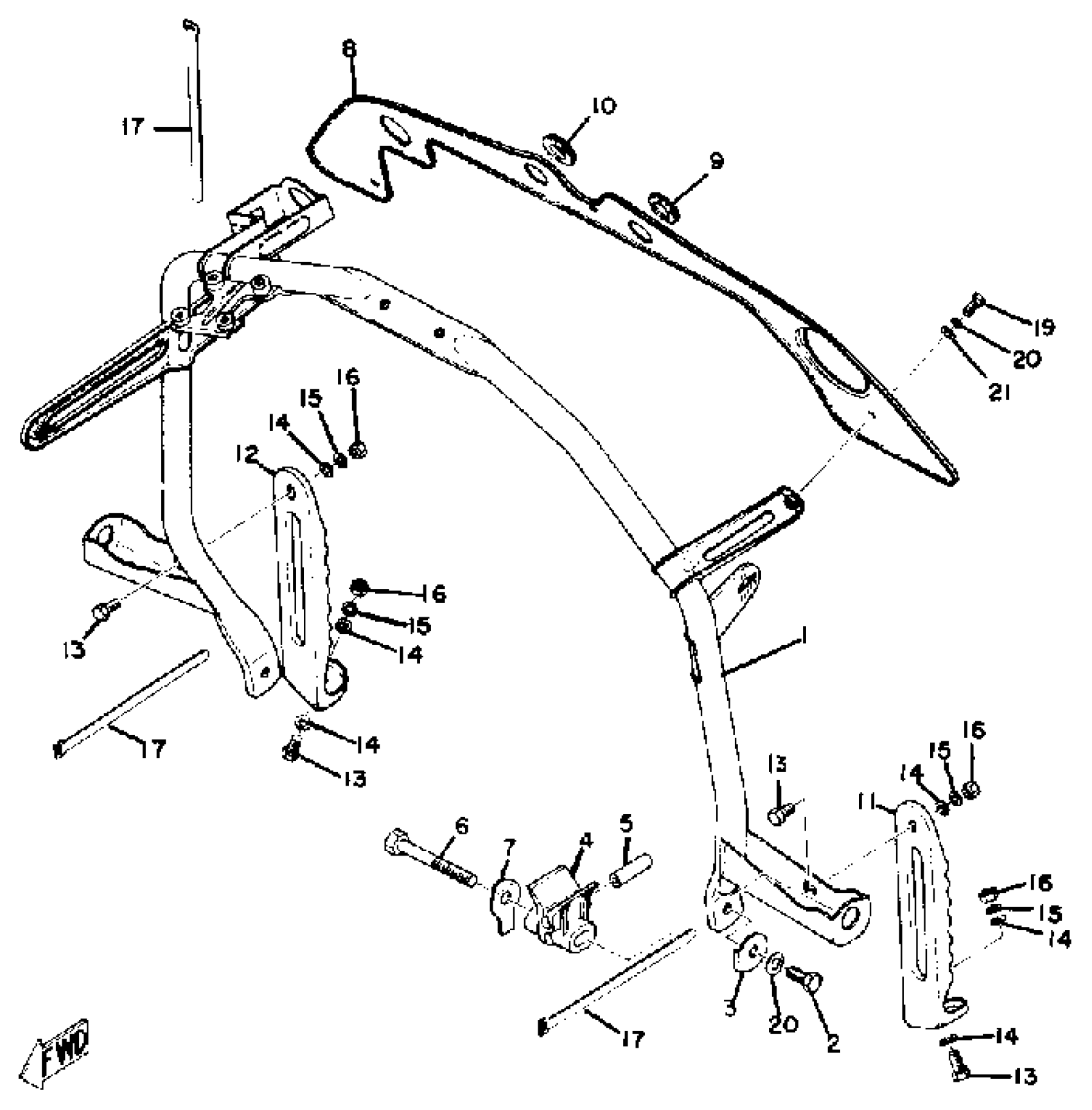

1972 Yamaha GP433SS Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

820-23871-00-00

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER,LOCK 2

861-23895-00-00

1
Out of stock

4

CL;AMP, LOWER (821-77137-00)

90464-09003-00

1
Out of stock

5

STOPPER

821-77188-01-00

1
Out of stock

6

BOLT (810-77537-00)

90101-08039-00

1
Out of stock

7

WASHER, LOCK (806-77526-00)

90215-08039-00

1
Out of stock

8

PANEL, INSTRUMENT

810-77711-00-00

1
Out of stock

9

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

10

GROMMET, WIRE HARNESS

102-82598-00-00

1
Out of stock

11

NO LONGER AVAILABLE

810-27411-00-00

1
Out of stock

12

FOOTREST, RIGHT

810-27421-00-00

1
Out of stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

18

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

19

BOLT

97027-05010-00

—

$5.62

In stock

20

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

21

WASHER(3SX)

92907-05100-00

—

$6.18

In stock
