1972 Yamaha GP433SS SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

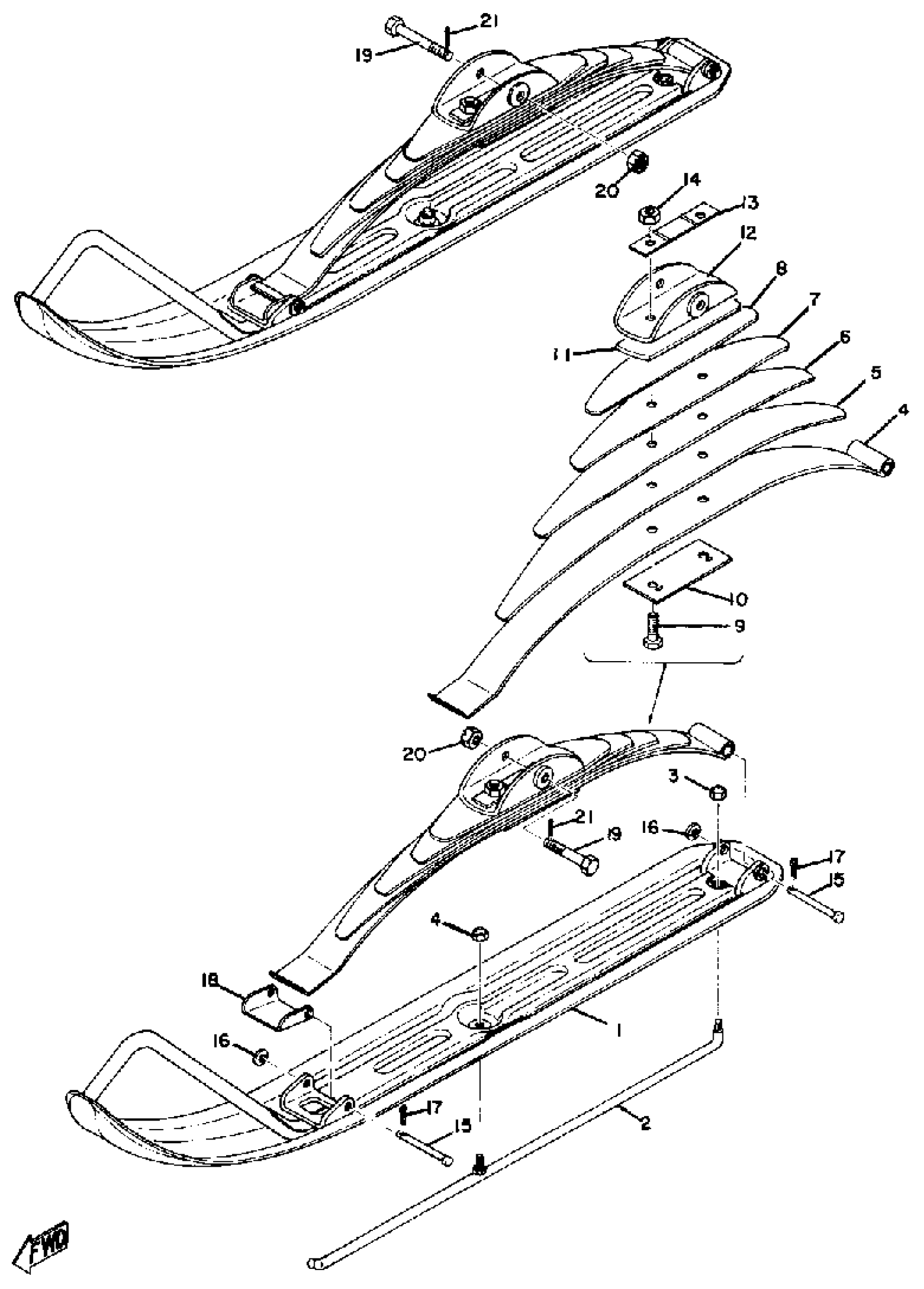

1972 Yamaha GP433SS SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING ASS''Y, LEFT

823-23760-00-00

1
Out of stock

1

SKI COMP (821-23710-00)

838-23710-01-00

1
Out of stock

1

SKI COMP

838-26710-01-00

1
Out of stock

2

RUNNER 1

821-23731-01-00

1
Out of stock

2

SPRING ASS''Y, RIGHT

823-23770-00-00

1
Out of stock

2

RUNNER 1

838-23731-03-00

1
Out of stock

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

4

. LEAF 1

810-23761-00-00

1
Out of stock

5

. LEAF 2

810-23762-00-00

1
Out of stock

6

. LEAF 3

810-23763-00-00

1
Out of stock

7

. LEAF 4

810-23764-00-00

1
Out of stock

8

. LEAF 5

810-23771-00-00

1
Out of stock

9

BOLT

90109-105E9-00

1
Out of stock

10

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

11

. SEAT, SPRING UPPER

811-23777-00-00

1
Out of stock

12

. SADDLE 1

806-23766-00-00

1
Out of stock

13

. WASHER

90209-10037-00

1
Out of stock

13

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

14

NUT(6TD)

95337-10600-00

—

$6.98

In stock

15

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

16

WASHER(6TC)

92907-08200-00

—
Out of stock

17

PIN COTTER

91490-30025-00

—
Out of stock

18

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

19

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

20

NUT, SLOTTED

95306-10900-00

1
Out of stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock
