Description

Price

1

SEC FXD SHV

865-17660-00-00

Unavailable

2

SEC SLIDING SHEAVE

865-17670-00-00

Unavailable

3

SHAFT, SECONDARY

810-17681-00-00

Unavailable

4

PIN, SPRING

91609-80040-00

Unavailable

5

SPRING, SECONDARY (805-17683-00)

805-17683-00-00

Unavailable

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

Unavailable

7

SHOE, RAMP

801-17688-10-00

Unavailable

8

COLLAR, DISTANCE 1 (802-17685-00)

(90387-19149-00)

Unavailable

9

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

Unavailable

9

SPRKT,CHAIN DR

806-17682-30-00

Unavailable

9

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

Unavailable

9

SPROCKET, CHAIN DRIVE (15T)

810-17682-50-00

Unavailable

10

COLLAR

90387-17133-00

Unavailable

11

COLLAR, DISTANCE 2 (810-17686-00)

90387-17314-00

Unavailable

12

SHIM 1

150-17417-00-02

Unavailable

12

SHIM (17.2-25-0.3)

150-17417-00-03

Unavailable

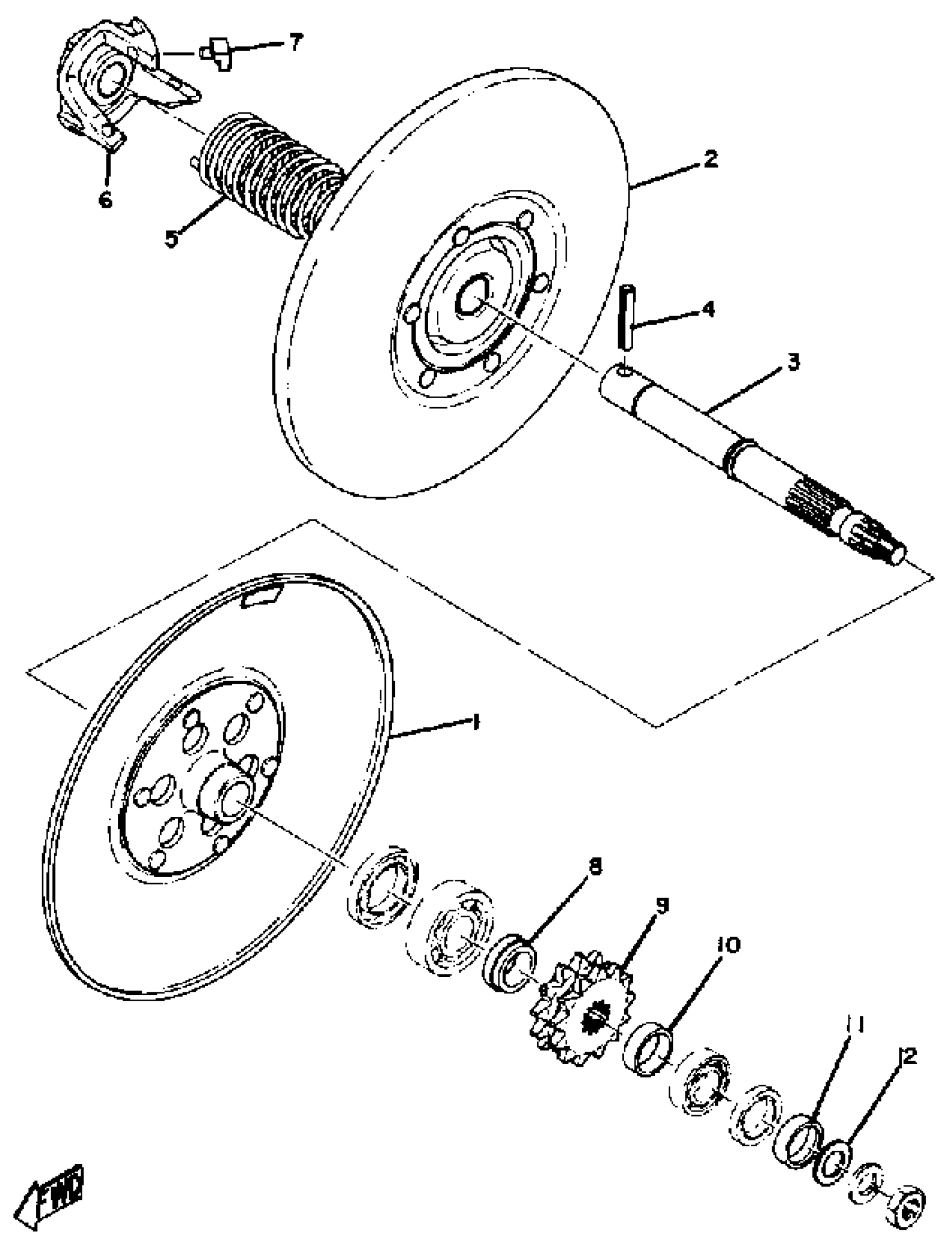

Yamaha GP433SS 1972 SECONDARY SHEAVE Diagram

SEC FXD SHV

SEC SLIDING SHEAVE

SHAFT, SECONDARY

PIN, SPRING

SPRING, SECONDARY (805-17683-00)

SEAT, SEC SPRINGSPRING

SHOE, RAMP

COLLAR, DISTANCE 1 (802-17685-00)

SPROCKET, CHAIN DRIVE (12T)

SPRKT,CHAIN DR

SPROCKET, CHAIN DRIVE (14T)

SPROCKET, CHAIN DRIVE (15T)

COLLAR

COLLAR, DISTANCE 2 (810-17686-00)

SHIM 1

SHIM (17.2-25-0.3)
