PUMP GEAR UNIT

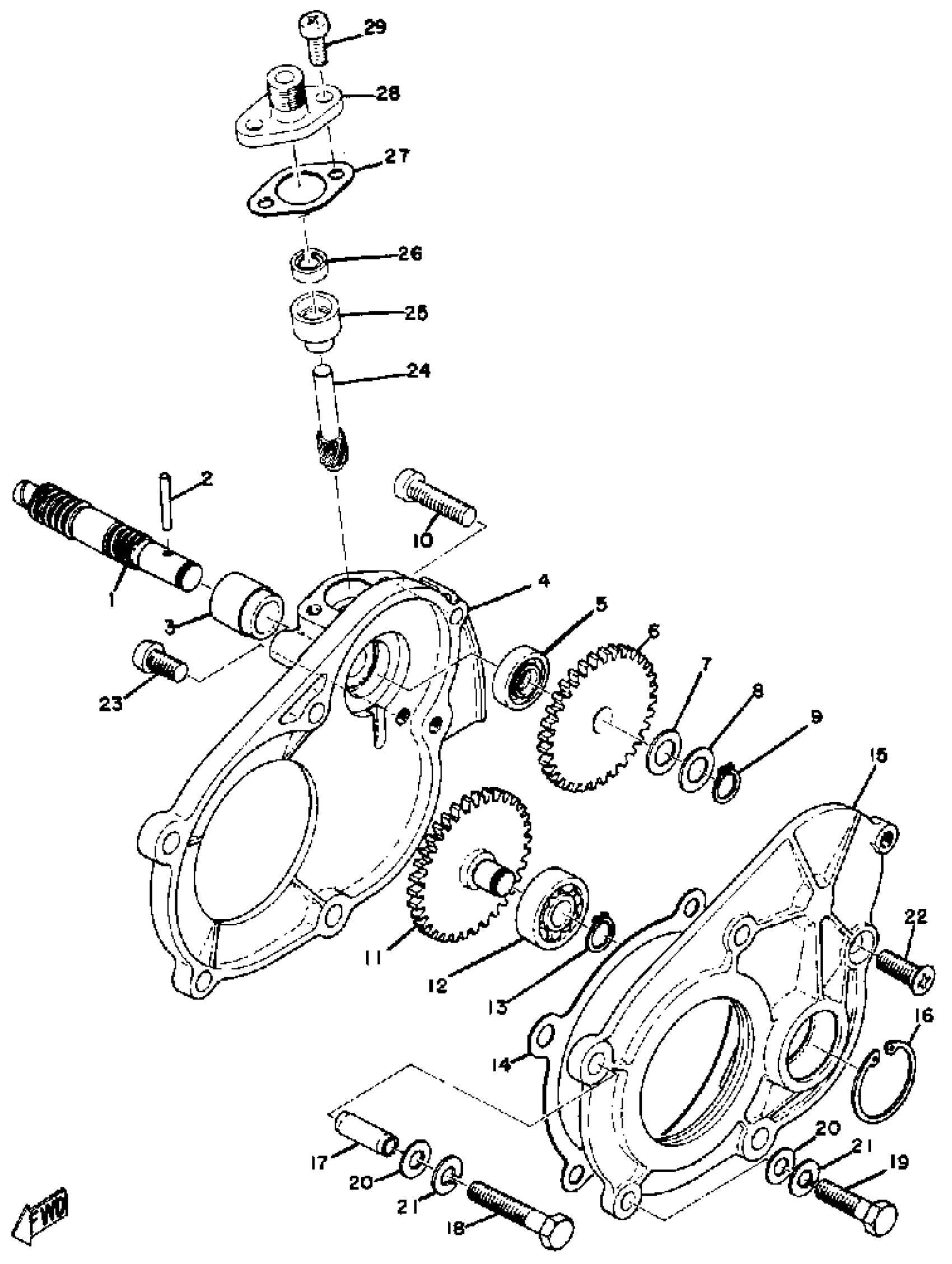

Yamaha GP433SS 1972 PUMP GEAR UNIT Diagram
#
1
SHAFT, WORM
821-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, PUMP DRIVE 1
821-15416-01-00
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE 2
821-13188-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
11
GEAR, IDLE
821-13197-00-00
Unavailable
12
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
13
CIRCLIP(10W)
99009-10400-00
$4.73
14
GASKET, O/PMP CVR 1
821-15456-00-00
Unavailable
15
COVER, PUMP DRIVE 2
821-15426-01-00
Unavailable
16
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
17
PIN, DOWEL
91810-18022-00
Unavailable
18
BOLT(3RV)
97014-06035-00
Unavailable
19
BOLT, HEXAGON
97017-06025-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
SCREW, FLAT
98707-06014-00
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
GEAR, DRIVEN (10T)
813-17841-00-00
Unavailable
25
BUSH, DRIVEN GEAR OUTER
821-17843-00-00
Unavailable
26
OIL SEAL (6X12X4-821)
93104-06033-00
Unavailable
27
GASKET
821-17818-02-00
Unavailable
28
CAP, HOUSING
821-17819-00-00
Unavailable
29
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
