OIL PUMP

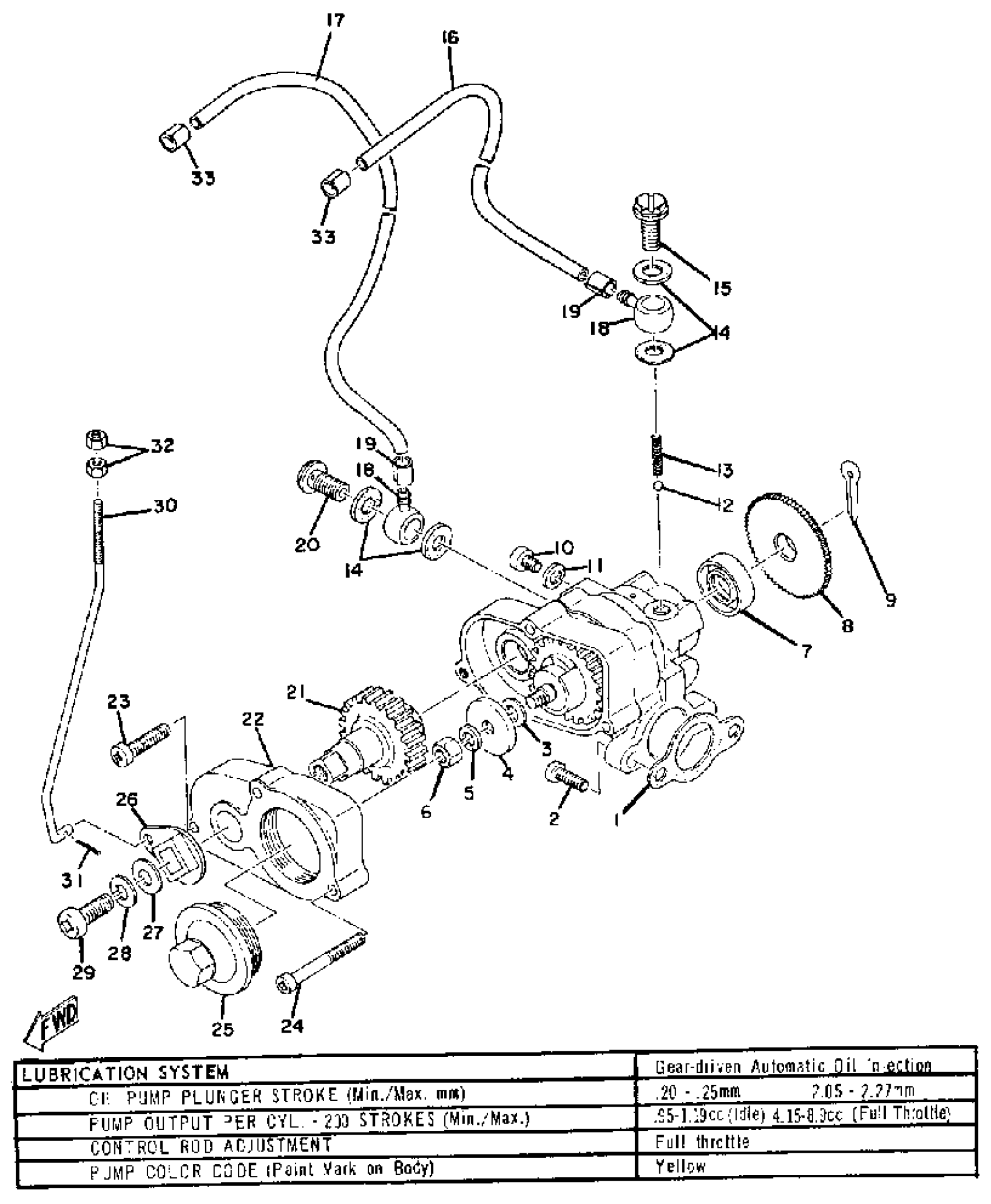

Yamaha GP433SS 1972 OIL PUMP Diagram
#
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
1
OIL PUMP ASS''Y
828-13101-00-00
Unavailable
2
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
3
SHIM,PLUNGER
137-13137-00-10
$7.99
4
PLATE, ADJUSTING
137-13138-01-00
Unavailable
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
NUT, HEXAGON (663)
95380-05600-00
$8.49
7
OIL SEAL (J10)
93101-10090-00
$8.49
8
. PLATE, STARTER
137-13128-00-00
Unavailable
9
. PIN, COTTER
91401-12018-00
Unavailable
10
SCREW, BIND
98980-04008-00
Unavailable
11
GASKET 137131870000
90430-04004-00
$9.49
12
BALL
93505-32002-00
$2.92
13
. SPRING, COMPRESSION
90501-02017-00
Unavailable
14
GASKET(3FP)
90430-06224-00
$5.60
15
BOLT UNION 137131650000
90401-06001-00
Unavailable
16
. HOSE (3-90) (807-13161-01)
90445-05020-00
Unavailable
17
HOSE (L200)
90445-05N13-00
Unavailable
18
BANJO, DELIVERY PIPE
214-13162-01-00
Unavailable
19
CLIP (214-13164-00)
90468-02033-00
Unavailable
20
BOLT UNION 137131650000
90401-06001-00
Unavailable
21
GEAR, PUMP CONTROL
821-13154-00-00
Unavailable
22
COVER, ADJUST PULLEY
821-13146-00-00
Unavailable
23
SCREW, PAN HEAD(MK5)
98507-04035-00
Unavailable
24
SCREW, PAN HEAD
98051-04020-00
Unavailable
25
CAP, PUMP
807-13143-00-00
Unavailable
26
LEVER, PUMP CONTROL
821-13156-00-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
SCREW, PAN
98507-06100-00
Unavailable
29
SCREW, PAN
98507-06014-00
Unavailable
30
ROD, PUMP CONTROL
807-13157-00-00
Unavailable
30
ROD, PUMP CONTROL
828-13157-00-00
Unavailable
31
. PIN, COTTER
91490-12012-00
Unavailable
32
NUT (807-13139-00)
90170-09008-00
Unavailable
33
CLIP (214-13164-00)
90468-02033-00
Unavailable
