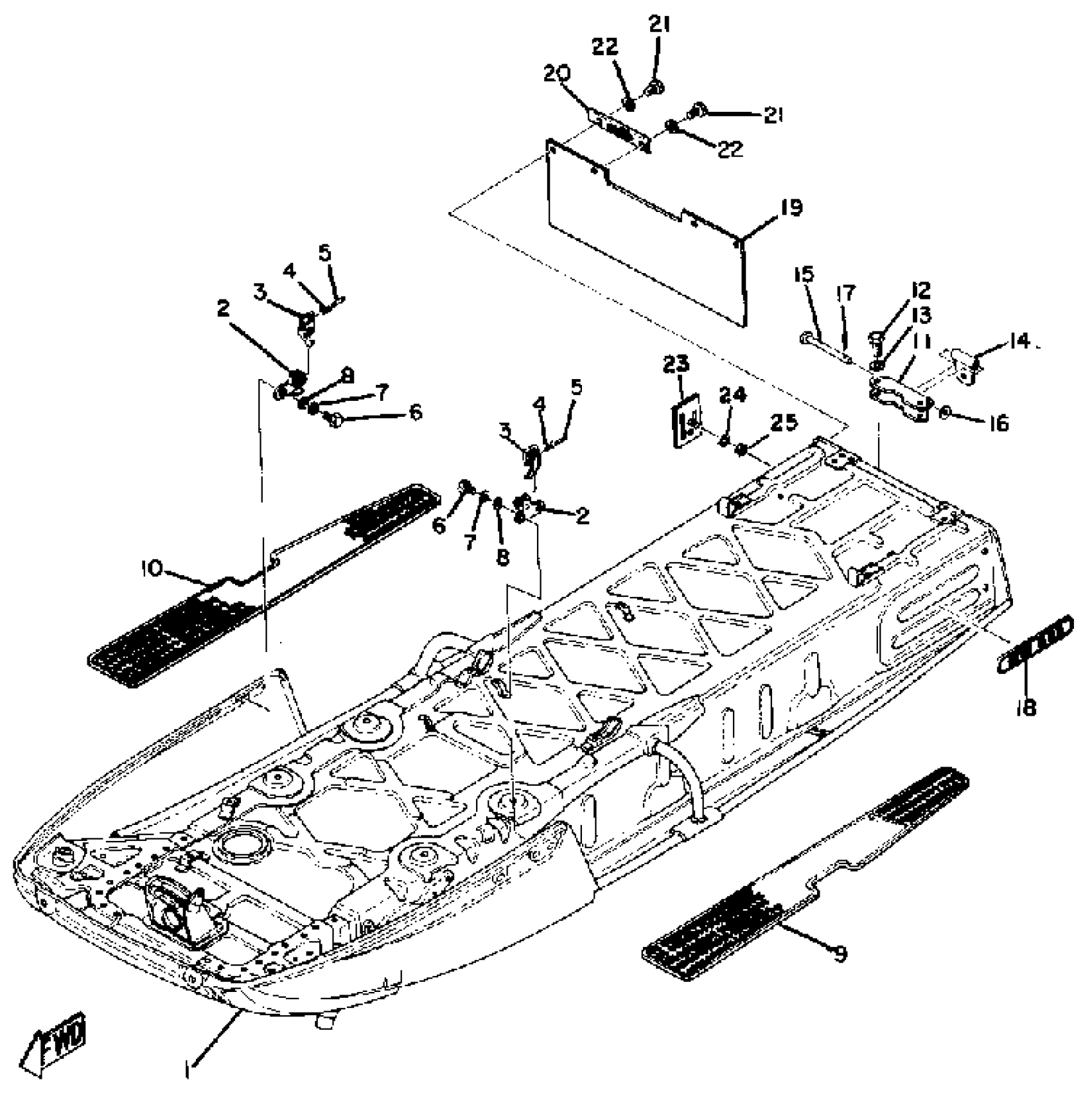

Yamaha GP433SS 1972 FRAME Diagram
#
Description
Price
1
LATCH ASSEMBLY
813-77170-00-00
Unavailable
1
FRAME COMP.
821-21910-00-00
Unavailable
2
TOOL
UNA-VAILA-BL-EI
Unavailable
3
. LEVER, LATCH
813-77173-00-00
Unavailable
4
. SPRING, TORSION
90508-10012-00
Unavailable
5
. PIN, SPECIAL SHAPE
90249-04068-00
Unavailable
6
BOLT, HEXAGON
97313-05016-00
Unavailable
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
WASHER, PLATE 8067717800
90201-05029-00
$8.49
9
COVER, FOOTREST LEFT
806-27413-00-00
Unavailable
10
COVER, FOOTREST RIGHT
806-27423-00-00
Unavailable
11
BRACKET, HITCH 2
802-77592-00-00
Unavailable
12
BOLT(3RV)
97014-06035-00
$2.75
13
WASHER, SPRING
92995-06100-00
Unavailable
14
BRACKET, HITCH 1
802-77591-00-00
Unavailable
15
PIN, CLEVIS
91701-08102-00
Unavailable
16
WASHER, PLAIN
92903-08200-00
Unavailable
17
PIN, COTTER
91490-25020-00
Unavailable
18
EMBLEM 4
828-77354-00-00
Unavailable
19
FLAP
802-77595-02-00
Unavailable
20
PLATE, FLAP
802-77593-00-00
Unavailable
21
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
REFLECTOR
821-85131-00-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
NUT, HEXAGON
95380-06600-00
Unavailable
