Description

Price

1

EXHAUST PIPE ASS''Y

828-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

STUD, EXHAUST PIPE HOLD (821-14661-00)

90116-08044-00

Unavailable

4

NUT, U

95617-08100-00

$9.49

5

SPRING, MUFFLER

821-14773-00-00

$18.49

6

MUFFLER ASS''Y

828-14710-00-00

Unavailable

7

BOLT

90109-08293-00

Unavailable

8

PLATE, SPRING

812-14793-00-00

Unavailable

9

SPRING, MUFFLER (812-14773-00)

90501-18115-00

Unavailable

10

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

11

SPACER, (812-14763-00)

90560-08065-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

WASHER (812-14759-00)

90201-07080-00

Unavailable

14

PROTECTOR, MUFF 1

823-14718-00-00

Unavailable

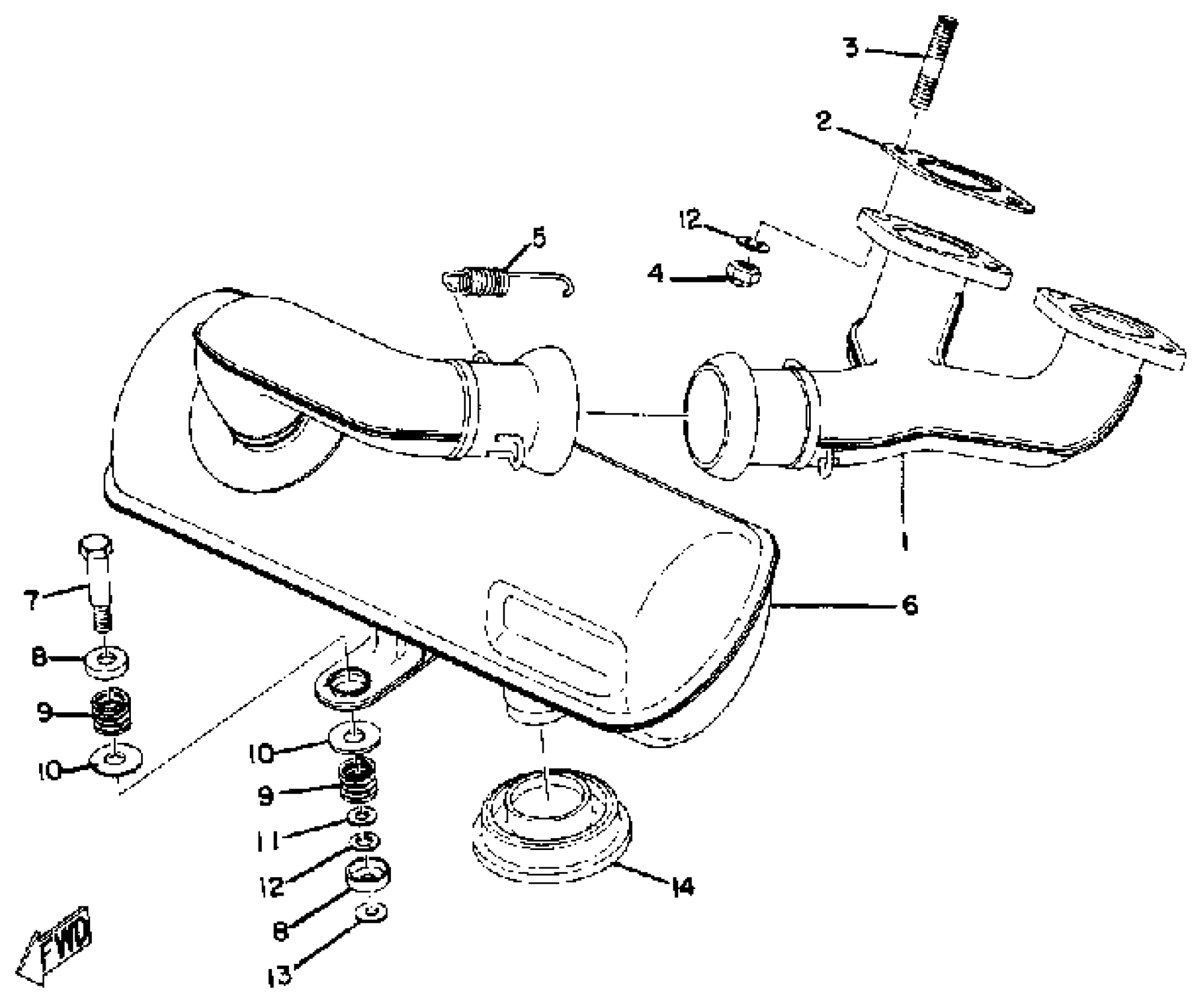

Yamaha GP433SS 1972 EXHAUST Diagram

EXHAUST PIPE ASS''Y

GASKET, EXHAUST PIPE

STUD, EXHAUST PIPE HOLD (821-14661-00)

NUT, U

SPRING, MUFFLER

MUFFLER ASS''Y

BOLT

PLATE, SPRING

SPRING, MUFFLER (812-14773-00)

WASHER, PLATE(3BM)

SPACER, (812-14763-00)

YBS67-8 WASHER, SPRING

WASHER (812-14759-00)

PROTECTOR, MUFF 1
