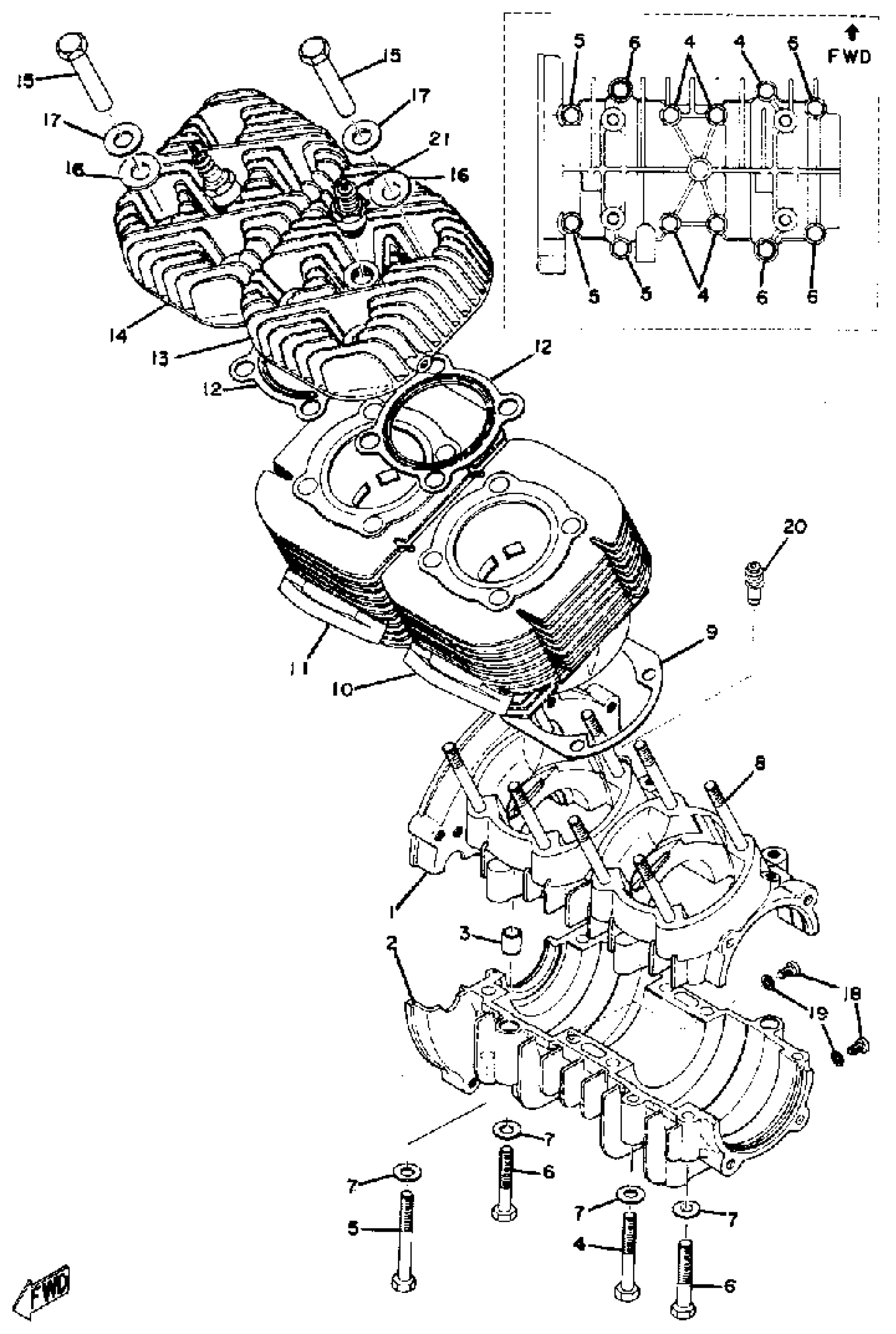

Yamaha GP433SS 1972 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(821-15100-00-00)

Unavailable

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

TOOL

UNA-VAILA-BL-EI

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT (663)

97013-08060-00

$4.41

5

BOLT(6TC)

97027-08070-00

Unavailable

6

BOLT, HEXAGON

97013-08050-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

BOLT (248-11361-00)

90116-08064-00

$7.49

9

GASKET, CYLINDER

857-11351-09-00

$4.42

10

CYLINDER, LEFT

(828-11311-00-00)

Unavailable

11

CYLINDER, RIGHT

(828-11321-00-00)

Unavailable

12

GASKET, CYL HEAD 1

818-11181-09-00

Unavailable

13

HEAD, CYLINDER 1

(818-11111-00-00)

Unavailable

14

HEAD, CYLINDER 2

818-11121-00-00

Unavailable

15

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

16

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

17

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

GASKET

90430-06017-00

Unavailable

20

JOINT, BREATHER

J38-11116-00-00

Unavailable

21

CHAMPION N2G 10PK

CMP-N2G00-00-00

Unavailable
