TRACK SUSPENSION

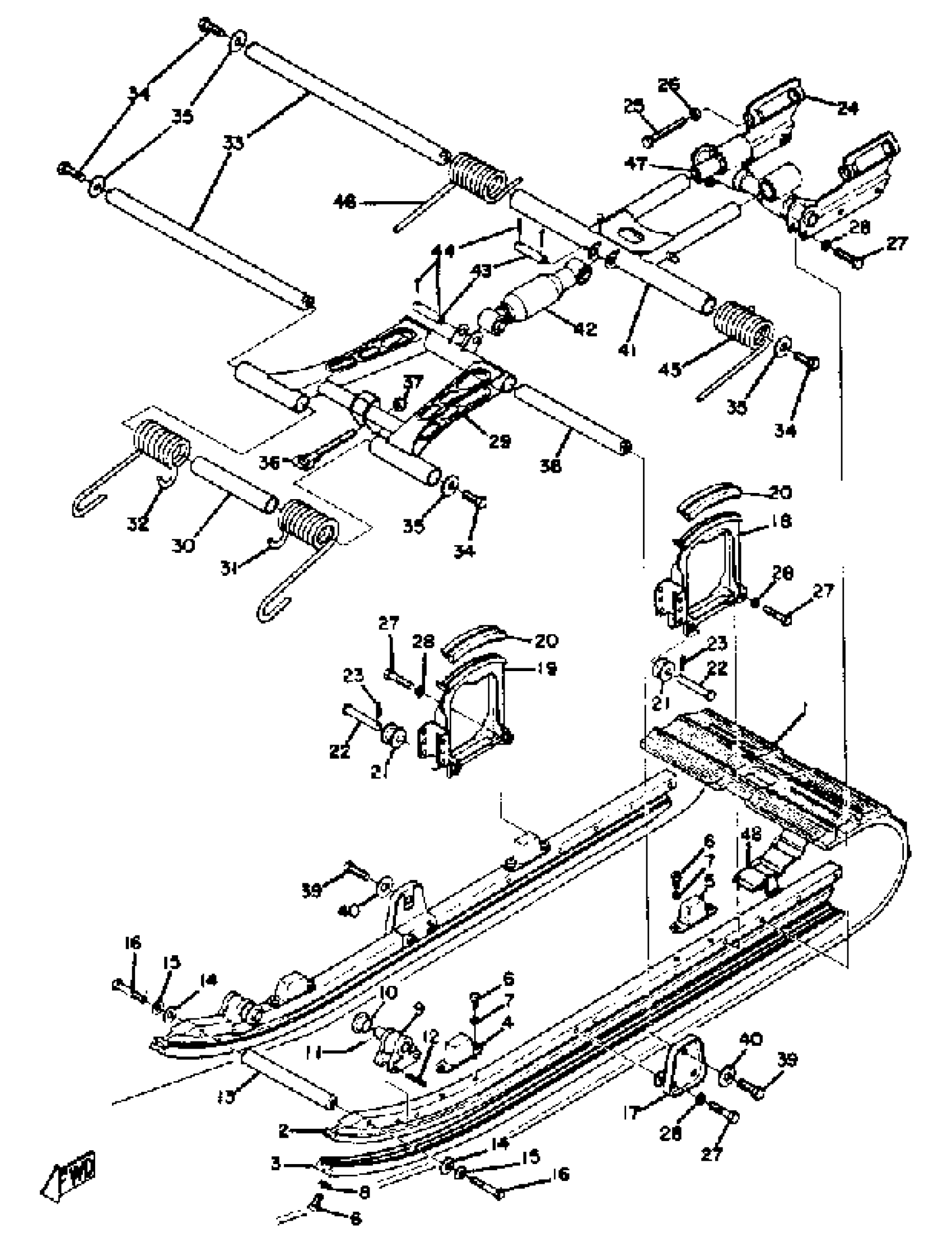

Yamaha GP433F 1974 TRACK SUSPENSION Diagram
#
1
TRACK ASSEMBLY
865-47110-00-00
Unavailable
1
WHEEL, GUIDE 2
(865-47535-01-00)
Unavailable
2
FRAME, SLIDING 1
(865-47411-00-00)
Unavailable
2
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
3
RUNNER, SLIDING 1
865-47421-00-00
Unavailable
3
BAR, SUSPENSION
(865-47451-00-00)
Unavailable
4
DAMPER 1
(865-47456-01-00)
Unavailable
4
SPACER
(865-47466-00-00)
Unavailable
5
BRACKET 3
(865-47417-00-00)
Unavailable
5
DAMPER 2
(865-47457-01-00)
Unavailable
6
. BOLT, HEXAGON
97311-10040-00
Unavailable
6
SCREW, PAN
98507-06014-00
$8.49
7
WASHER, SPRING
92995-06100-00
Unavailable
7
BOLT, HEXAGON
97013-08050-00
Unavailable
8
WASHER, PLATE 8221447500
90201-06057-00
$5.60
8
BOLT, HEXAGON
97013-08030-00
Unavailable
9
HOOK 1
(865-47446-00-00)
Unavailable
9
WASHER, PLATE (3L5)
90201-08772-00
Unavailable
10
ROLLER
865-47429-00-00
Unavailable
10
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
11
PIN, COTTER
91490-30030-00
Unavailable
12
PIN, SPRING
91609-60036-00
Unavailable
13
SHAFT 1
865-47465-00-00
Unavailable
14
WASHER, PLATE (5J0)
90201-085E6-00
Unavailable
15
SPRING, BELLEVILLE
(829-16119-00-00)
Unavailable
16
BOLT, HEXAGON
97013-08050-00
Unavailable
17
BRACKET 1
865-47415-01-00
Unavailable
18
STOPPER 1
865-47495-00-00
Unavailable
19
STOPPER 2
865-47496-00-00
Unavailable
20
RUNNER, SLIDING 2
865-47422-00-00
Unavailable
21
ROLLER 2
(865-47439-00-00)
Unavailable
22
PIN, CLEVIS
90240-10028-00
Unavailable
23
CLIP
90468-18019-00
Unavailable
24
BRACKET, REAR 1
(865-47426-00-00)
Unavailable
25
BOLT SET (865,9010110200)
99999-02604-00
Unavailable
26
NUT, SELF LOCKING
90185-10031-00
Unavailable
27
BOLT
97014-08040-00
Unavailable
28
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
29
ARM, PIVOT 1
(865-47331-01-00)
Unavailable
30
TUBE, STRUCTURE
90440-25001-00
Unavailable
31
SPRING, TORSION
90508-73149-00
Unavailable
32
SPRING, TORSION
90508-73150-00
Unavailable
33
SHAFT, PIVOT
(865-47337-00-00)
Unavailable
34
BOLT(6TD)
97017-10025-00
Unavailable
35
WASHER 823214910000
90208-10012-00
Unavailable
36
HOOK 2
865-47447-00-00
Unavailable
37
NUT, SELF LOCKING
90185-10031-00
Unavailable
38
SHAFT 2
865-47475-00-00
Unavailable
39
BOLT (8J7)
97013-10030-00
Unavailable
40
WASHER 823214910000
90208-10012-00
Unavailable
41
ARM, PIVOT 2 (865-47332-00)
865-47332-01-00
Unavailable
42
SHOCK ABSORBER
(865-47480-00-00)
Unavailable
43
PIN 1
(865-47449-00-00)
Unavailable
44
PIN, COTTER
91490-30030-00
Unavailable
45
SPRING, TORSION
90508-75151-00
Unavailable
46
SPRING, TORSION
(90508-75152-00)
Unavailable
47
BUSH, SPEC''L NYLON
(90386-22033-00)
Unavailable
48
METAL, SLIDE
865-47115-09-00
Unavailable
48
IDLER WHEEL KIT
(8G5-47000-00-00)
Unavailable
