Description

Price

1

EXHAUST PIPE ASSEMBLY L

(828-14610-00-00)

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT (682)

97013-08025-00

$8.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

MUFFLER ASSEMBLY L

(866-14710-00-00)

Unavailable

6

SPRING, MUFFLER

821-14773-00-00

$18.49

7

BOLT

(90109-08403-00)

Unavailable

8

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

9

DAMPER, MUFFLER 2

865-14757-00-00

Unavailable

10

SPACER

(90560-08065-00)

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

WASHER, PLATE

(90201-07080-00)

Unavailable

13

STAY, MUFFLER 1

(865-14771-00-00)

Unavailable

14

SPRING, TENSION (8BU1)

90506-16494-00

$7.49

15

BOLT,SOCKET HEAD

91314-06012-00

$8.49

16

PROTECTOR, MUFF 1 (865-14718-00)

865-14718-01-00

Unavailable

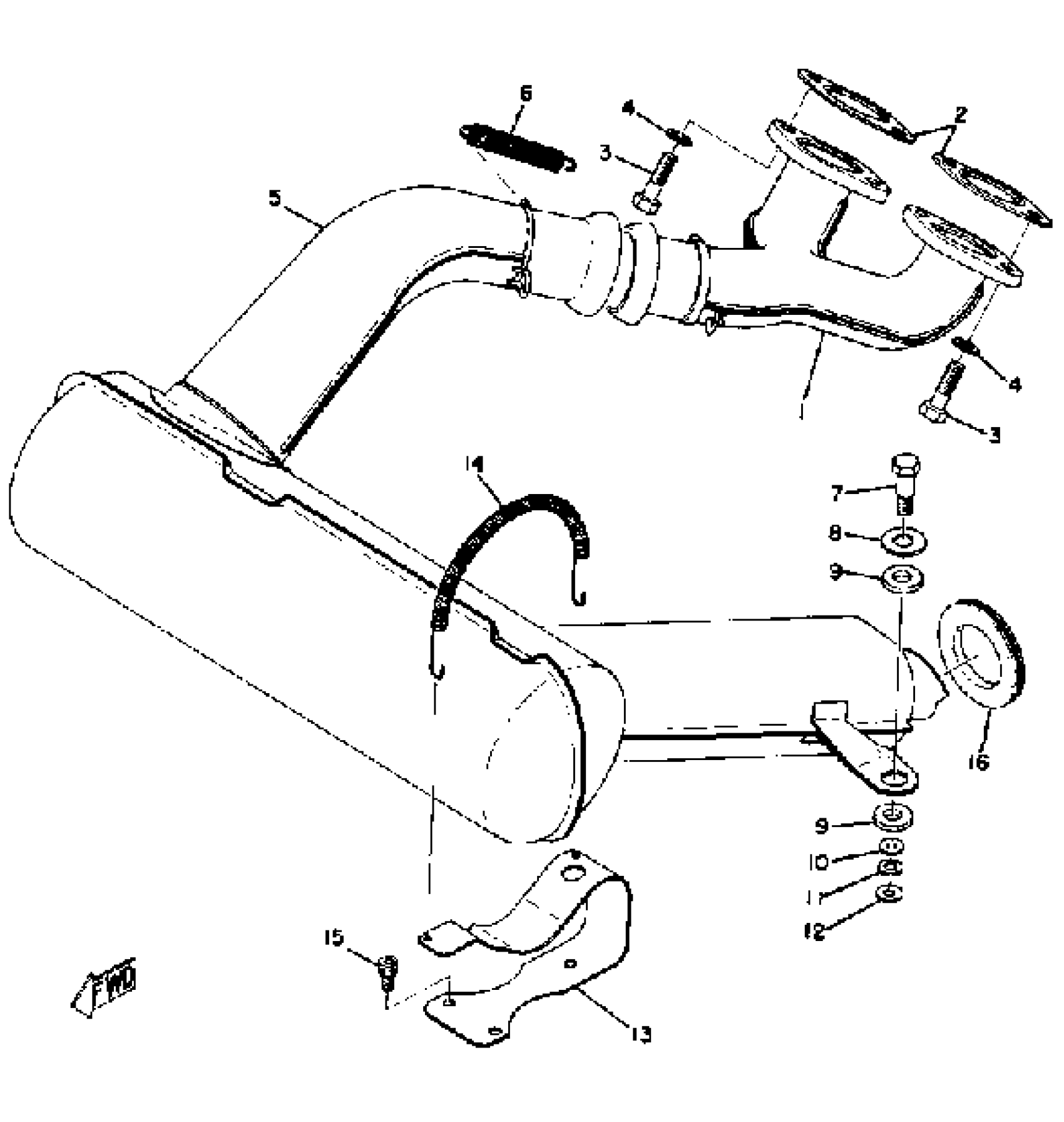

Yamaha GP433F 1974 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

GASKET, EXHAUST PIPE

BOLT (682)

YBS67-8 WASHER, SPRING

MUFFLER ASSEMBLY L

SPRING, MUFFLER

BOLT

WASHER, PLATE (4N0)

DAMPER, MUFFLER 2

SPACER

YBS67-8 WASHER, SPRING

WASHER, PLATE

STAY, MUFFLER 1

SPRING, TENSION (8BU1)

BOLT,SOCKET HEAD

PROTECTOR, MUFF 1 (865-14718-00)
