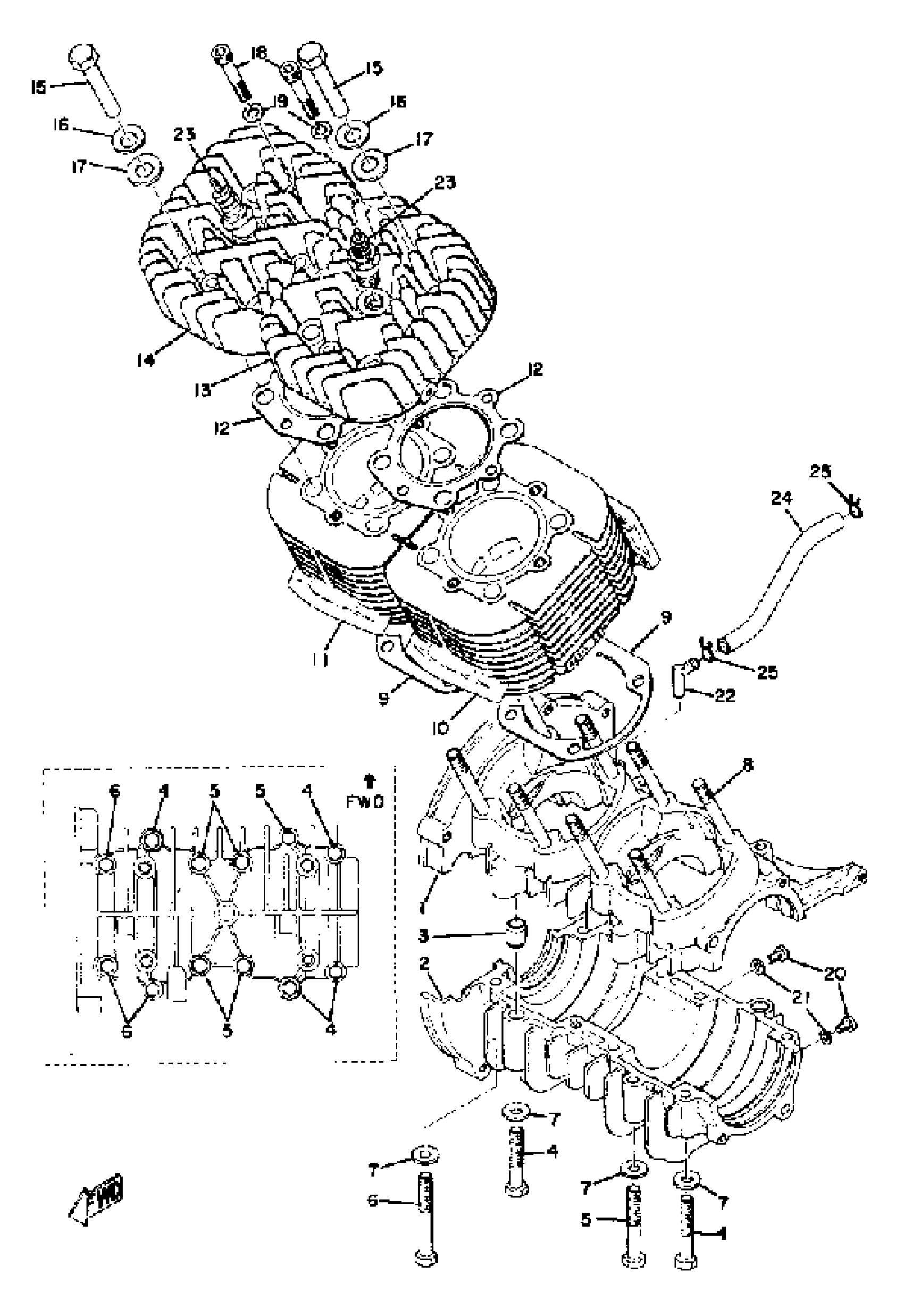

Yamaha GP433F 1974 CRANKCASE - CYLINDER Diagram

#

Description

Price

1

CRANKCASE ASSEMBLY

838-15100-01-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, HEXAGON

97013-08050-00

Unavailable

5

BOLT (663)

97013-08060-00

$4.41

6

BOLT(6TC)

97027-08070-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

BOLT (248-11361-00)

90116-08064-00

$7.49

9

GASKET, CYLINDER

857-11351-09-00

$4.42

10

CYLINDER 1

(866-11311-00-00)

Unavailable

11

CYLINDER 2

866-11321-00-00

Unavailable

12

GASKET, CYL HEAD 1

828-11181-09-00

Unavailable

13

HEAD, CYLINDER 1

(866-11111-00-00)

Unavailable

14

HEAD, CYLINDER 2

(866-11121-00-00)

Unavailable

15

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

16

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

17

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

18

BOLT, SOCKET

91317-08050-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

SCREW PAN HEAD

98580-06010-00

Unavailable

21

GASKET 838153840000

90430-06016-00

Unavailable

22

PIPE, JOINT

8E4-24461-00-00

Unavailable

23

CHAMPION N3G 10PK

(CMP-N3G00-00-00)

Unavailable

24

HOSE (L450)

90445-10144-00

Unavailable

25

CLIP(3BM)

90467-10135-00

Unavailable
