1973 Yamaha GP433B Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1973 Yamaha GP433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

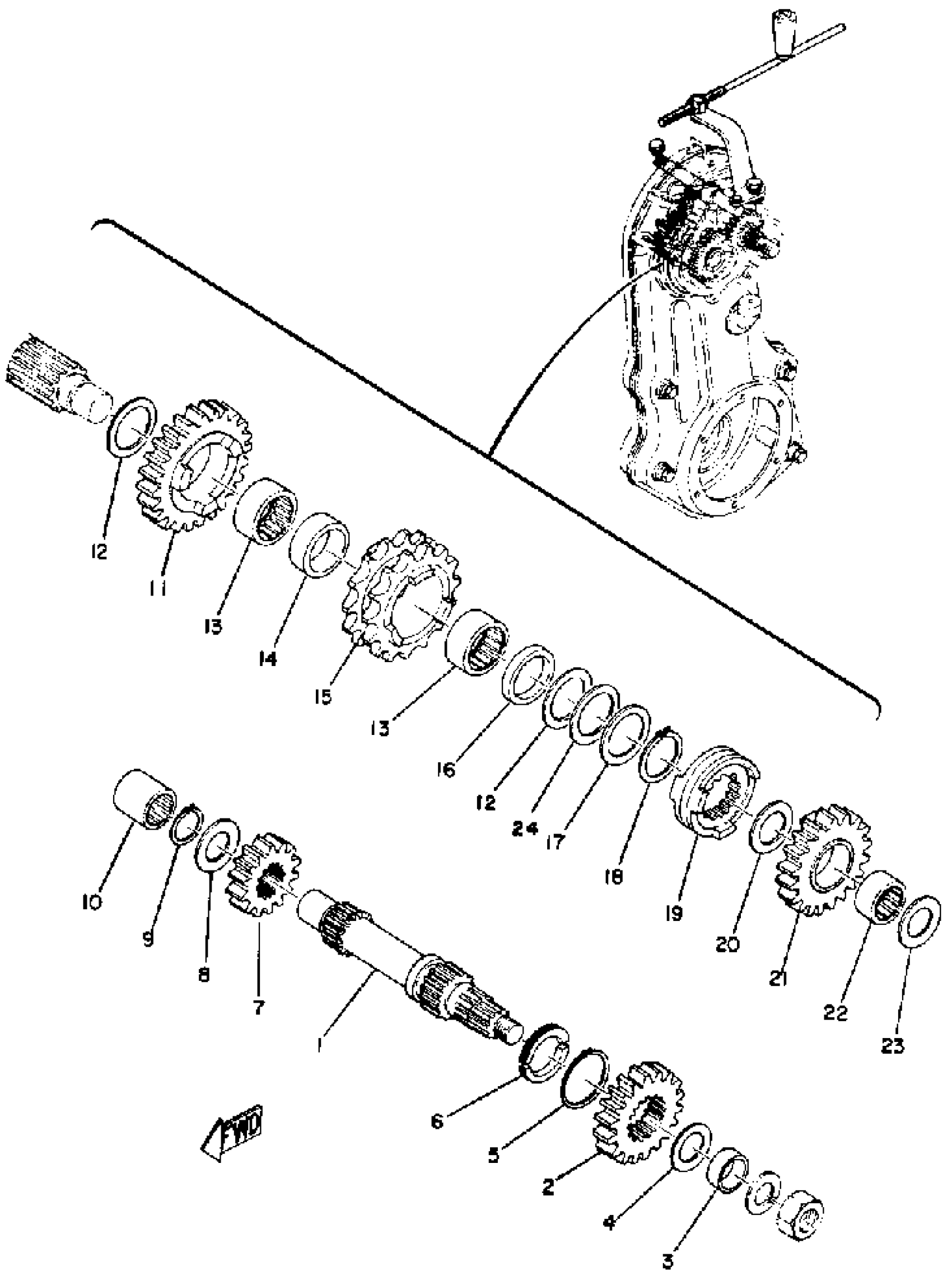

1973 Yamaha GP433B Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE

838-17421-00-00

1
Out of stock

2

GEAR, 2ND WHEEL

826-17221-00-00

1
Out of stock

3

COLLAR

90387-17134-00

1
Out of stock

4

SHIM 1

150-17417-00-02

1
Out of stock

4

SHIM 1

(150-17417-00-03)

1
Out of stock

5

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

6

COLLAR

806-17645-00-00

1
Out of stock

7

GEAR, 3RD WHEEL

826-17231-00-00

1
Out of stock

8

SHIM

826-17219-00-00

1
Out of stock

9

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

10

BEARING, CYLINDER.#20

93320-31501-00

1
Out of stock

11

GEAR, 3RD PINION

826-17131-00-00

1
Out of stock

12

SHIM

826-17229-00-00

1
Out of stock

13

BEARING, CYLINDER.#15

93315-22414-00

1
Out of stock

14

COLLAR

90387-24183-00

1
Out of stock

15

SPRKT, CHAIN DR 14T

826-17682-40-00

1
Out of stock

15

SPRKT, CHAIN DR 15T

(826-17682-50-00)

1
Out of stock

16

COLLAR

(90387-24182-00)

1
Out of stock

17

SHIM 3

826-17238-00-00

1
Out of stock

18

CIRCLIP

99009-24400-00

—

$7.49

In stock

19

DOG, TRANS SHIFT

826-17492-00-00

1
Out of stock

20

WASHER, PLATE(39K)

90201-191J4-00

—
Out of stock

21

GEAR, 2ND PINION

826-17121-00-00

1
Out of stock

22

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

—

$31.48

In stock

23

SHIM 1

136-17417-00-10

1
Out of stock

24

SHIM (T:0.30MM)

626-45577-20-00

1

$6.31

In stock

24

SHIM (T:0.50MM)

626-45577-40-00

1

$5.46

In stock
