1973 Yamaha GP433B Track Drive Diagram

← All diagrams

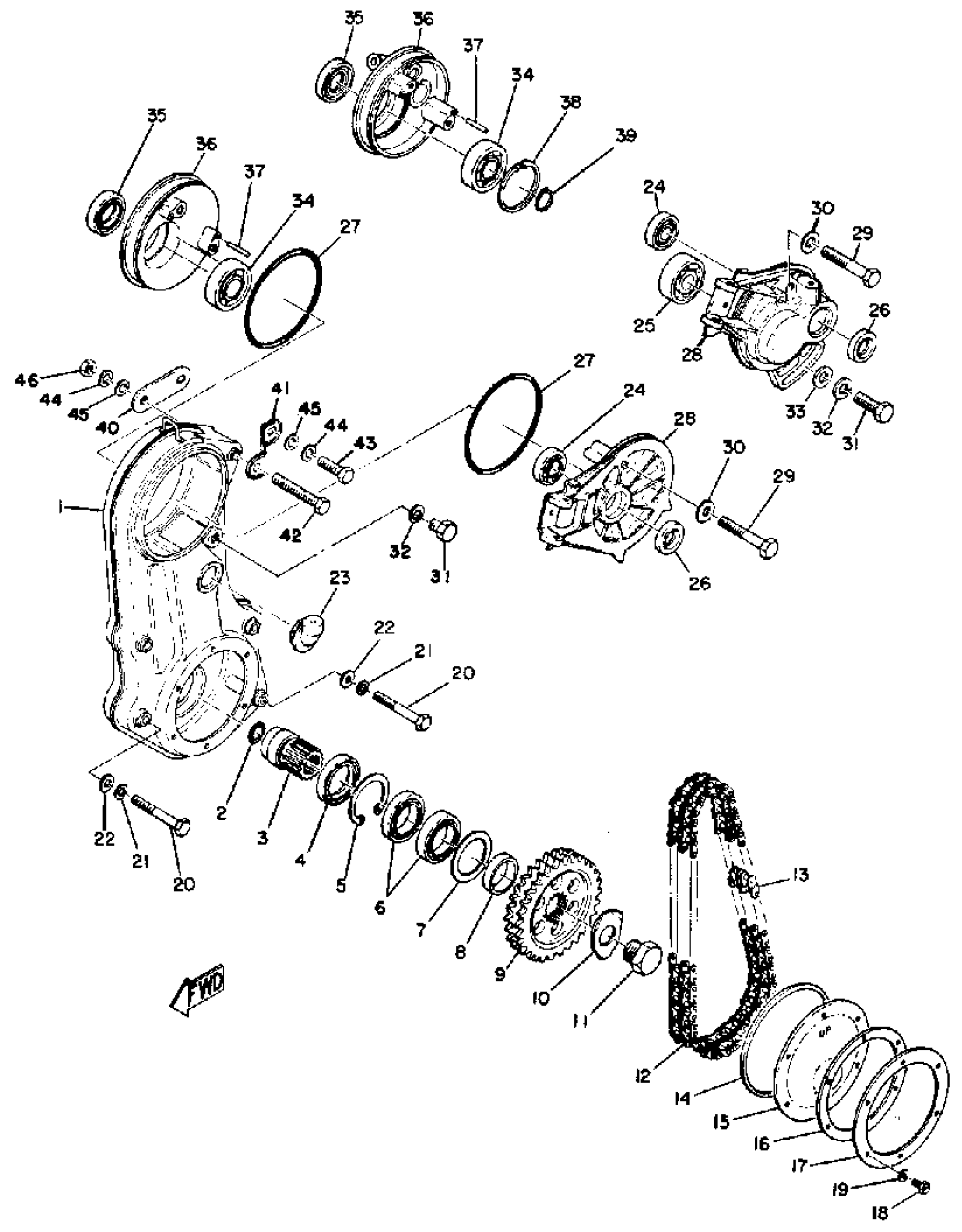

Find the part on the Track Drive diagram for your 1973 Yamaha GP433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha GP433B Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(844-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(841-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

SPACER

90560-35050-00

1
Out of stock

8

COLLAR

90387-35206-00

1
Out of stock

9

SPROCKET, CHN DRVN

(802-47548-40-00)

1
Out of stock

9

SPROCKET, CHN DRVN

802-47548-50-00

1
Out of stock

9

SPROCKET, CHN DRVN

(802-47548-60-00)

1
Out of stock

10

WASHER, LOCK

90215-24029-00

1
Out of stock

11

BOLT

90109-24203-00

1
Out of stock

12

CHAIN

94804-25068-00

1
Out of stock

13

. JOINT CHAIN

94904-25001-00

1
Out of stock

14

RING, HOUSING

(806-47558-00-00)

1
Out of stock

15

CAP, HOUSING

(821-47543-00-00)

1
Out of stock

16

GASKET

821-47544-00-00

1
Out of stock

17

PLATE

(821-47591-00-00)

1
Out of stock

18

SCREW

90143-05004-00

—

$2.20

In stock

19

WASHER, SEAL

90210-05005-00

1
Out of stock

20

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER, PLAIN

92903-08200-00

1
Out of stock

23

CAP 2

(861-47559-00-00)

1
Out of stock

24

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

25

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

26

O-RING

93211-13109-00

1
Out of stock

27

HOUSING, SEC SHAFT

(8A4-47561-00-00)

1
Out of stock

28

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

29

WASHER (821)

90210-08002-00

—

$5.68

In stock

30

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

31

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

32

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

33

BEARING (5X5)

93306-20627-00

—

$66.08

In stock

34

OIL SEAL, SD-TYPE

93102-35056-00

1
Out of stock

35

HOUSING, SEC SHAFT

838-47562-01-00

1
Out of stock

36

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

37

CIRCLIP(MF1)

99009-62500-00

—

$6.23

In stock

38

CIRCLIP(4A6)

99009-30400-00

—

$6.55

In stock

39

STAY 1

(841-47565-00-00)

1
Out of stock

39

STAY 1

(844-47565-00-00)

1
Out of stock

40

STAY 2

(841-47566-00-00)

1
Out of stock

40

CAP 2

(861-47559-00-00)

1
Out of stock

41

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

42

BOLT

97013-08035-00

—

$4.80

In stock

43

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

44

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

45

NUT(6L2)

95333-08600-00

—

$3.20

In stock
