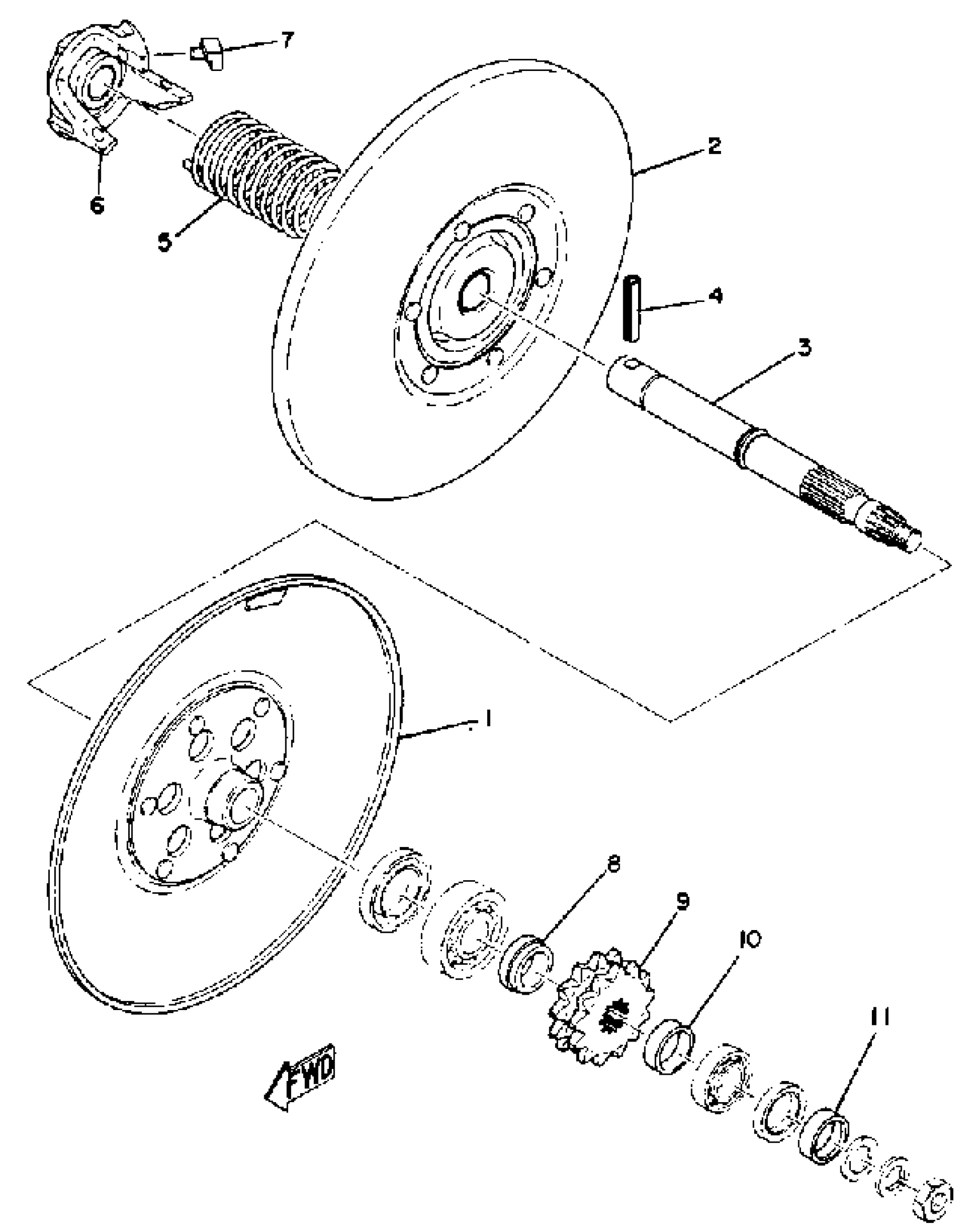

Yamaha GP433B 1973 SECONDARY SHEAVE Diagram

#

Description
Price

1

SEC FXD SHV

(826-17660-00-00)

Unavailable

2

SEC SLIDING SHEAVE

(810-17670-00-00)

Unavailable

3

SHAFT, SECONDARY

826-17681-00-00

Unavailable

4

PIN, SPRING TYPE

90254-08001-00

Unavailable

5

SPRING, SECONDARY (805-17683-00)

805-17683-00-00

Unavailable

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

Unavailable

7

SHOE, RAMP

801-17688-10-00

Unavailable

8

COLLAR (812-17685-00)

90387-19149-00

Unavailable

9

SPROCKET, CHAIN DRIVE (11T)

802-17682-20-00

Unavailable

9

SPRKT,CHAIN DR

806-17682-30-00

Unavailable

9

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

Unavailable

9

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

Unavailable

9

SPRKT, CHAIN DR 15T

(810-17682-50-00)

Unavailable

10

COLLAR

90387-17133-00

Unavailable

11

COLLAR (818-17686-00)

90387-17130-00

Unavailable
