1973 Yamaha GP433B Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 1973 Yamaha GP433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

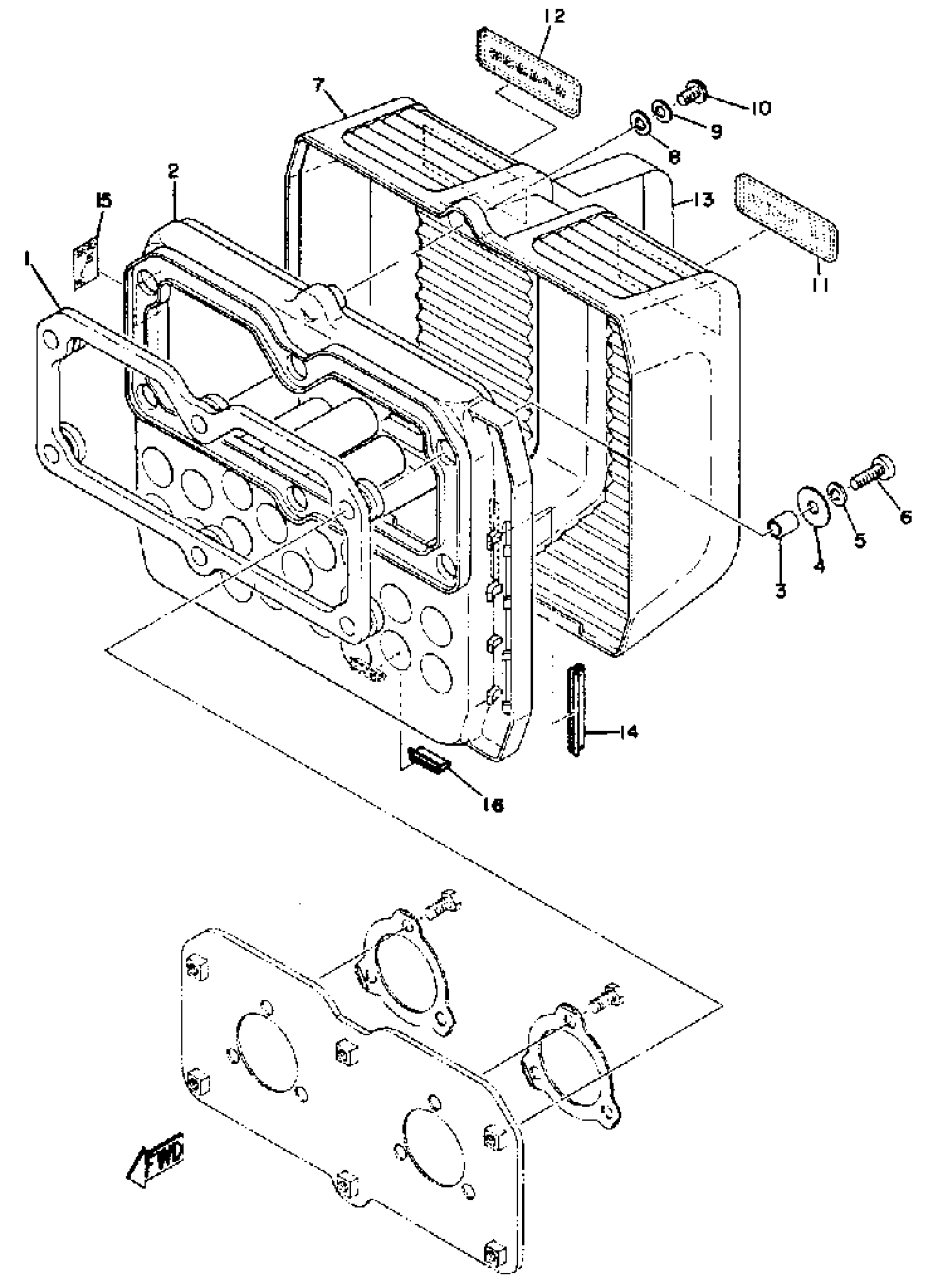

1973 Yamaha GP433B Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER

(844-14492-00-00)

1
Out of stock

2

SILENCER, INTAKE 1

(844-14431-00-00)

1
Out of stock

3

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

4

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

7

SILENCER, INTAKE 2

(844-14441-00-00)

1
Out of stock

8

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

11

EMBLEM 1

(844-77351-00-00)

1
Out of stock

12

EMBLEM 1

(844-77451-00-00)

1
Out of stock

13

EMBLEM 9

(844-77359-00-00)

1
Out of stock

14

DAMPER 1

(844-14425-00-00)

1
Out of stock

15

INDICATOR, CHOKE

(844-77455-00-00)

1
Out of stock

16

DAMPER 2

(844-14426-00-00)

1
Out of stock
