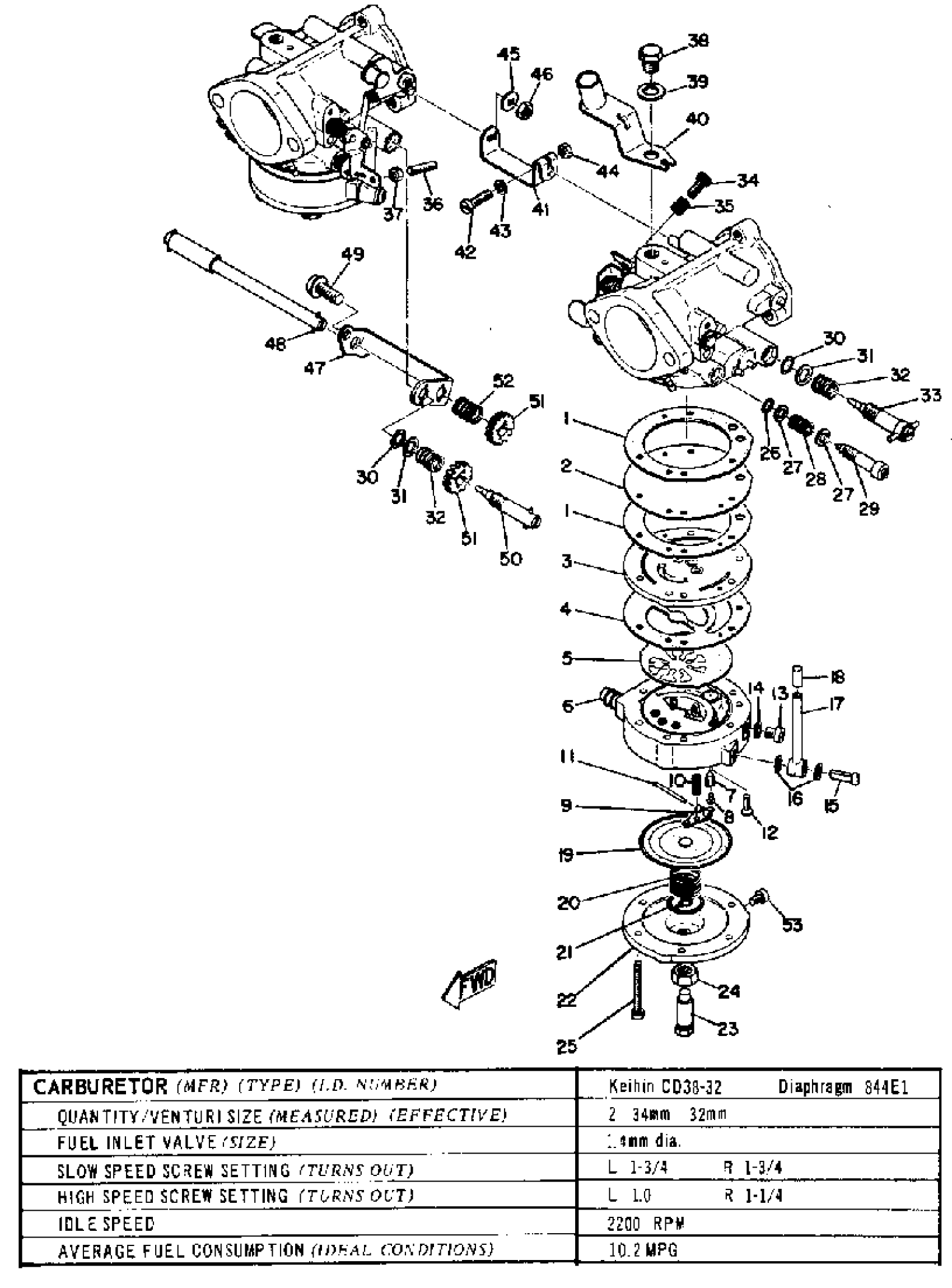

Find the part on the Carburetor diagram for your 1973 Yamaha GP433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha GP433B Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

838-14536-09-00

1

$11.29

In stock

1

CARBURETOR ASSEMBLY 1

844-14501-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 2

844-14502-00-00

1
Out of stock

2

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

4

GASKET

834-14553-09-00

1
Out of stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

6

BODY, PUMP 2

(844-14543-00-00)

1
Out of stock

7

VALVE

838-14546-00-00

1

$39.18

In stock

8

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

9

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

10

. SPRING

810-14556-00-00

1
Out of stock

11

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

SCREW

(806-14567-01-00)

1
Out of stock

14

. WASHER

810-14597-00-00

1
Out of stock

15

. SCREW

8A1-14592-00-00

1
Out of stock

16

. WASHER

806-14559-00-00

1
Out of stock

17

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

18

. CAP, BLIND

810-24462-01-00

1
Out of stock

19

DIAPHRAGM

810-14545-00-00

—
Out of stock

20

SPRING

(810-14555-00-00)

1
Out of stock

21

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

22

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

23

. SCREW, STOP

824-14565-00-00

1
Out of stock

24

. NUT

95380-08700-00

1

$3.07

In stock

25

SCREW

(824-14567-00-00)

1
Out of stock

26

. O-RING

824-14563-00-00

1
Out of stock

27

. WASHER

838-14596-00-00

1
Out of stock

28

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

29

SCREW, ADJUST

(839-14522-00-00)

1
Out of stock

30

. O-RING

824-14564-00-00

1
Out of stock

31

. WASHER

824-14597-00-00

1
Out of stock

32

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

33

SCREW, ADJUST

(844-14521-00-00)

1
Out of stock

34

SCREW, STOP

(806-14523-00-00)

1
Out of stock

35

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

36

SCREW

(813-14591-00-00)

1
Out of stock

37

NUT

(806-14594-00-00)

1
Out of stock

38

BOLT(62E)

97013-08012-00

—

$2.48

In stock

39

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

40

. BRACKET, THROTTLE

828-14571-00-00

1
Out of stock

41

CONNECTOR

(844-14588-00-00)

1
Out of stock

42

SCREW, STOP

(844-14566-00-00)

1
Out of stock

43

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

44

NUT

(806-14595-00-00)

1
Out of stock

45

WASHER

(806-14598-00-00)

1
Out of stock

46

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

47

PLATE

(844-14527-00-00)

1
Out of stock

48

SHAFT, LINK

(844-41258-00-00)

1
Out of stock

49

SCREW

(844-14567-00-00)

1
Out of stock

50

SCREW, ADJUST

(844-14521-00-00)

1
Out of stock

51

GEAR

(844-42152-00-00)

1
Out of stock

52

SPRING, AJST SCREW

(844-14533-00-00)

1
Out of stock

53

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
