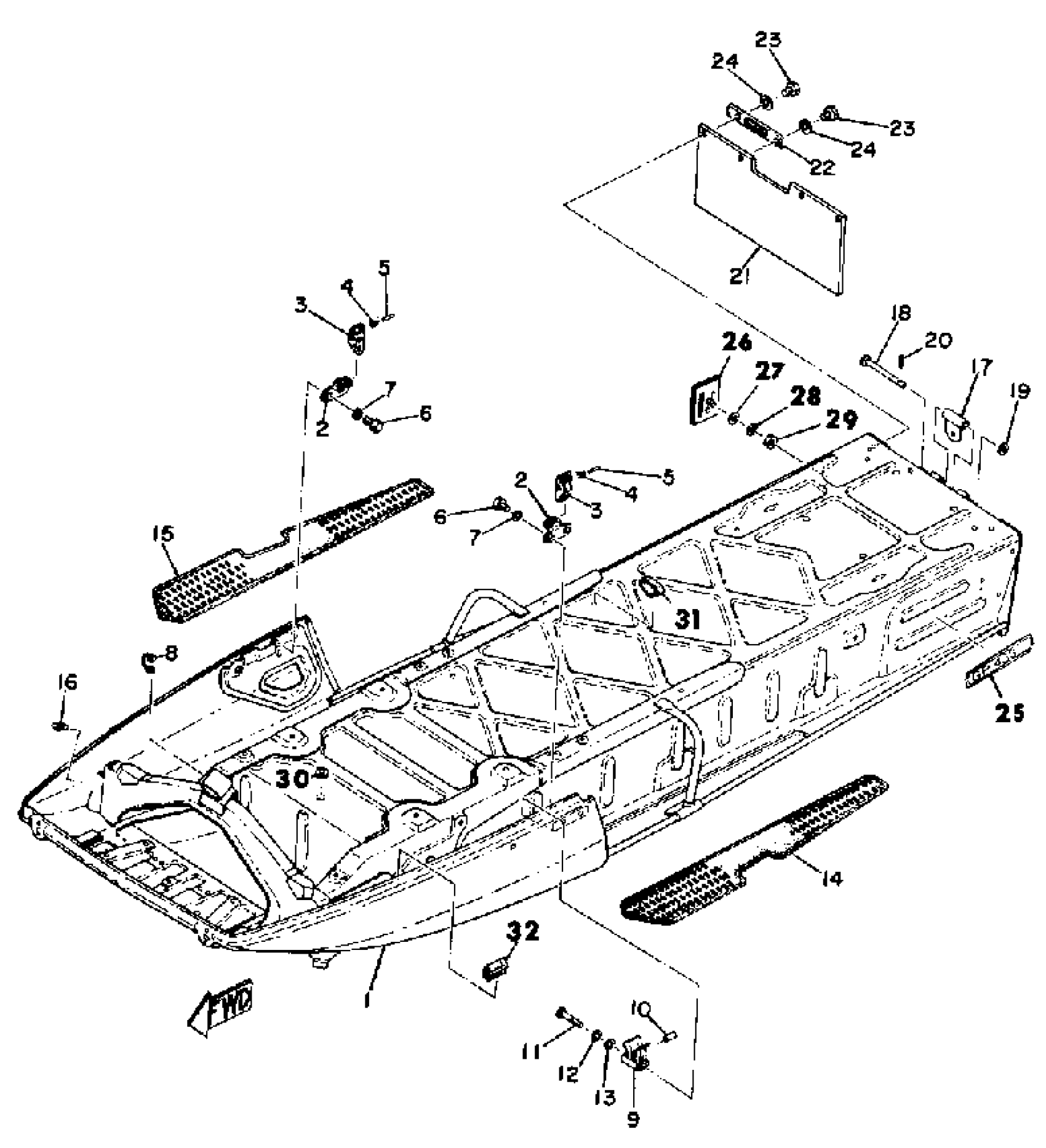

Yamaha GP433B 1973 FRAME Diagram
#
1
LATCH ASSEMBLY
806-77170-00-00
Unavailable
1
FRAME
(841-21910-00-00)
Unavailable
2
BODY, LATCH 2
(806-77172-00-00)
Unavailable
3
. LEVER, LATCH 1
806-77173-00-00
Unavailable
4
. SPRING, TORSION
90508-10012-00
Unavailable
5
. PIN, SPECIAL SHAPE
90249-04068-00
Unavailable
6
BOLT, HEXAGON
97313-05016-00
Unavailable
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
BAND
(841-82591-00-00)
Unavailable
9
CLAMP
90464-09006-00
Unavailable
10
STOPPER
821-77188-01-00
Unavailable
11
BOLT, HEXAGON
97017-06045-00
$3.76
12
WASHER, SPRING
92907-06100-00
$4.25
13
WASHER(6TA)
92907-06200-00
$8.49
14
COVER, FOOTREST
878-27413-00-00
Unavailable
15
COVER, FOOTREST
878-27423-00-00
Unavailable
16
NIPPLE, GREASE
93700-06M03-00
Unavailable
17
BRACKET, HITCH 1
802-77591-00-00
Unavailable
18
PIN, CLEVIS
(91701-08102-00)
Unavailable
19
WASHER, PLAIN
92990-08200-00
Unavailable
20
PIN, COTTER
91490-25020-00
Unavailable
21
FLAP
(802-77595-02-00)
Unavailable
22
PLATE, FLAP 1
(802-77593-00-00)
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
EMBLEM 4
844-77354-00-00
Unavailable
26
REFLECTOR, REAR 1
(821-85131-00-00)
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
NUT, NYLON
95707-06300-00
Unavailable
30
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
31
CLAMP
(90464-13008-00)
Unavailable
32
STRIP, WEATHER 1
(839-77161-00-00)
Unavailable
