1971 Yamaha GP396 Track Drive Diagram

← All diagrams

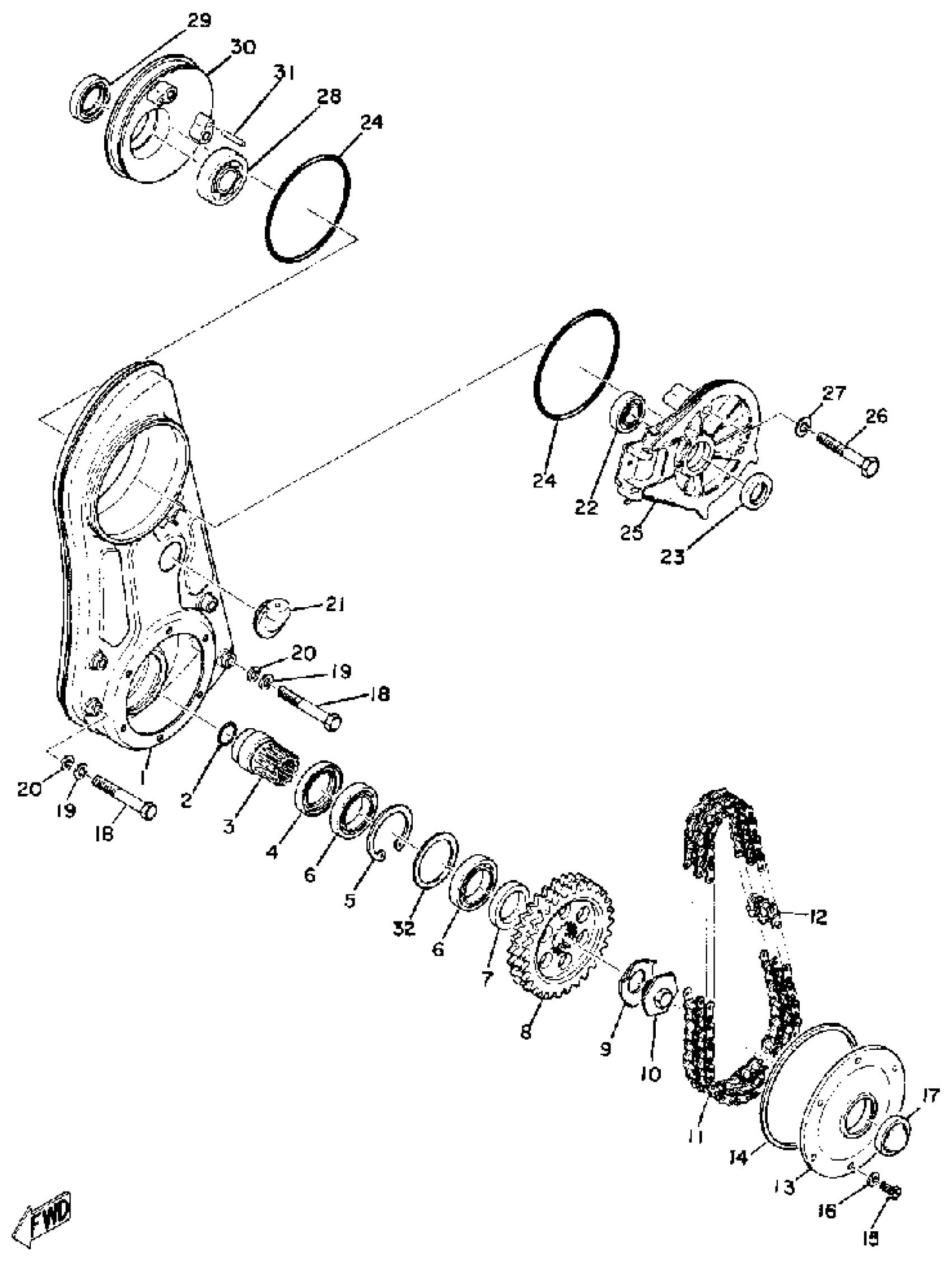

Find the part on the Track Drive diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha GP396 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(820-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(810-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

COLLAR

90387-35205-00

1
Out of stock

8

SPROCKET, CHN DRVN

(802-47548-40-00)

1
Out of stock

9

WASHER, LOCK

90215-24029-00

1
Out of stock

10

BOLT

90109-24203-00

1
Out of stock

11

CHAIN (DK425-2 62L)

94804-25062-00

1
Out of stock

12

. JOINT CHAIN

94904-25001-00

1
Out of stock

13

CAP, HOUSING

(806-47543-00-00)

1
Out of stock

14

RING, HOUSING

(806-47558-00-00)

1
Out of stock

15

SCREW

90143-05004-00

—

$2.20

In stock

16

WASHER, SEAL

90210-05005-00

1
Out of stock

17

LEVEL, OIL

802-47546-01-00

1
Out of stock

18

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

CAP 2

(810-47559-00-00)

1
Out of stock

22

BEARING(2JN)

93306-00315-00

—

$27.16

In stock

23

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

24

O-RING

93211-13109-00

1
Out of stock

25

HOUSING, SEC SHAFT

810-47561-00-00

1
Out of stock

26

BOLT (663)

97013-08060-00

—

$3.25

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

—

$54.91

In stock

29

OIL SEAL (30X47X7-810)

93102-30083-00

—

$11.08

In stock

30

HOUSING, SEC SHAFT

810-47562-00-00

1
Out of stock

31

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

32

SPACER

90560-35050-00

1
Out of stock
