1971 Yamaha GP396 Rear Axle Diagram

← All diagrams

Find the part on the Rear Axle diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

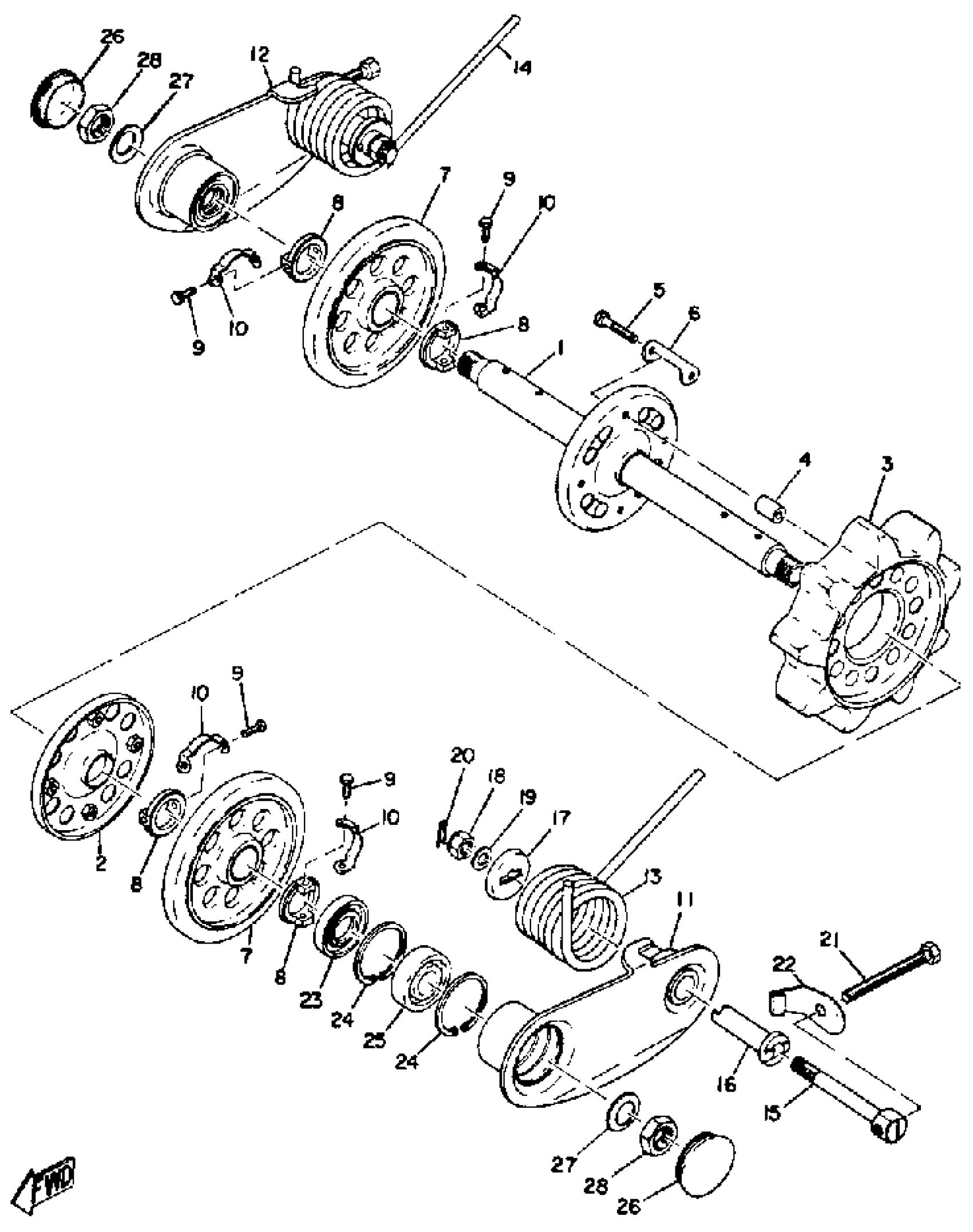

1971 Yamaha GP396 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR AXLE

(810-47520-01-00)

1
Out of stock

2

RIM, SPROCKET WHL 2

(810-47522-00-00)

1
Out of stock

3

WHEEL, SPROCKET 2

810-47532-00-00

1
Out of stock

4

COLLAR

(90387-06021-00)

1
Out of stock

5

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

6

WASHER, LOCK

90215-06100-00

1
Out of stock

7

GUIDE WHEEL

810-47530-00-00

1
Out of stock

8

COLLAR

810-47536-00-00

1
Out of stock

9

BOLT, HEXAGON

97313-05016-00

1
Out of stock

10

WASHER, LOCK

(810-47539-00-00)

1
Out of stock

11

ARM, REAR PIVOT 1

(810-47361-00-00)

1
Out of stock

12

ARM, REAR PIVOT 2

810-47362-00-00

1
Out of stock

13

SPRING, TORSION

90508-72114-00

1
Out of stock

14

SPRING, TORSION (812-47364-00)

90508-72084-00

1
Out of stock

15

SCREW, SPEC''L SHAPE

90149-08022-00

1
Out of stock

16

COLLAR

810-47369-00-00

1
Out of stock

17

WASHER, SPEC''L SHAP

90209-08067-00

1
Out of stock

18

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

PIN, COTTER

91490-30030-00

—

$7.15

In stock

21

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

1
Out of stock

22

WASHER, LOCK

90215-08069-00

1
Out of stock

23

OIL SEAL (25X44X6-810)

93102-25081-00

—
Out of stock

24

CIRCLIP, R-TYPE

93420-44029-00

1
Out of stock

25

BEARING

93306-00412-00

1
Out of stock

26

CAP (NOT AVAIL)

810-47552-00-00

1
Out of stock

27

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

28

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock
