1971 Yamaha GP396 Steering Gate Diagram

← All diagrams

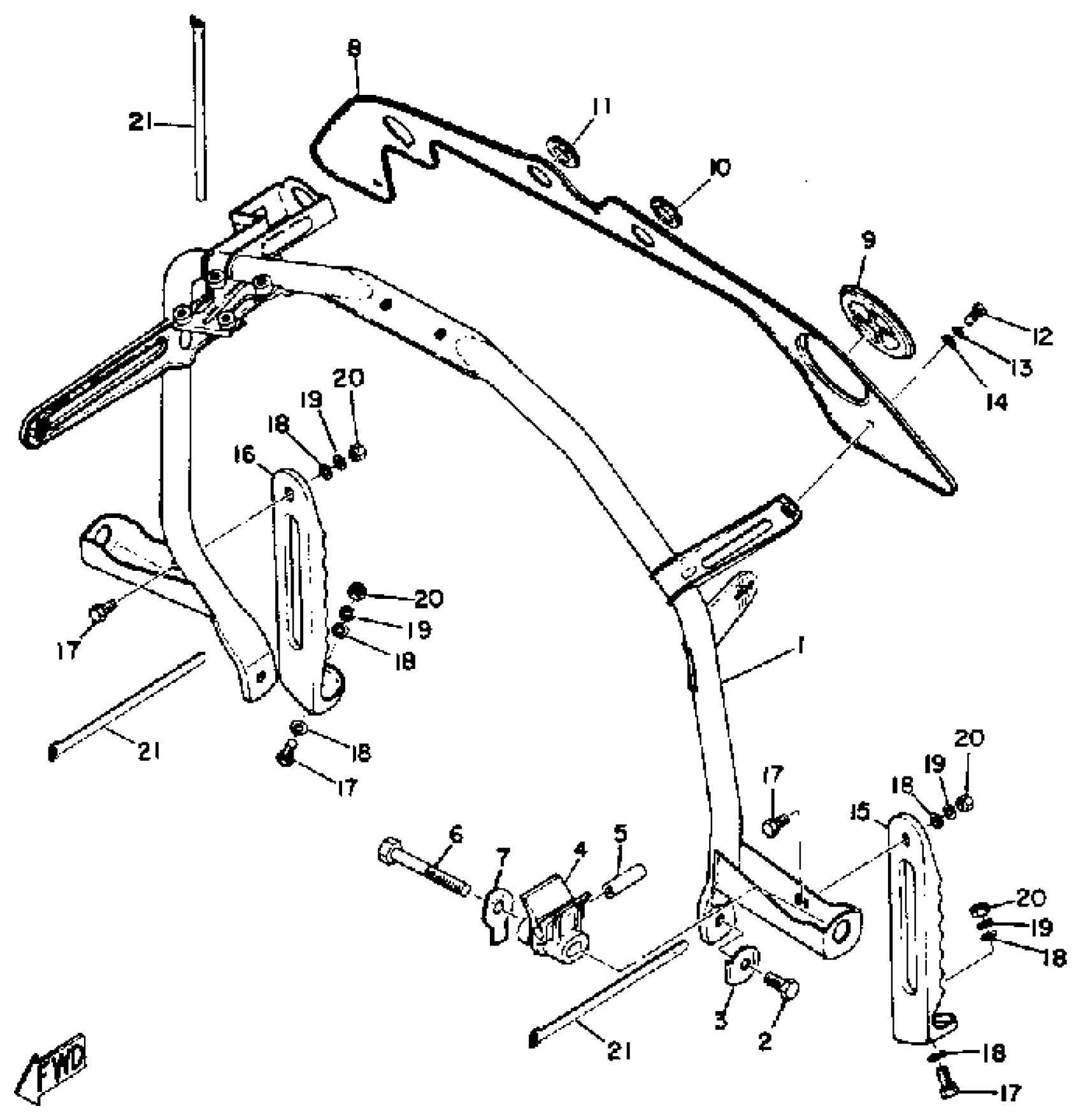

Find the part on the Steering Gate diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha GP396 Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

810-23871-00-00

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

4

CLAMP

(90464-09005-00)

1
Out of stock

5

STOPPER

(810-77188-00-00)

1
Out of stock

6

BOLT, HEXAGON

(97306-08065-00)

1
Out of stock

7

WASHER, LOCK

(90215-08039-00)

1
Out of stock

8

PANEL, INSTRUMENT

(810-77711-00-00)

1
Out of stock

9

ORMNT, INSTR PNL 1

810-77715-00-00

1
Out of stock

10

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

11

GROMMET

(102-82598-00-00)

1
Out of stock

12

BOLT

97027-05010-00

—

$5.62

In stock

13

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

14

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

15

FOOTREST 1

(810-27411-00-00)

1
Out of stock

16

FOOTREST 2

(810-27421-00-00)

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
