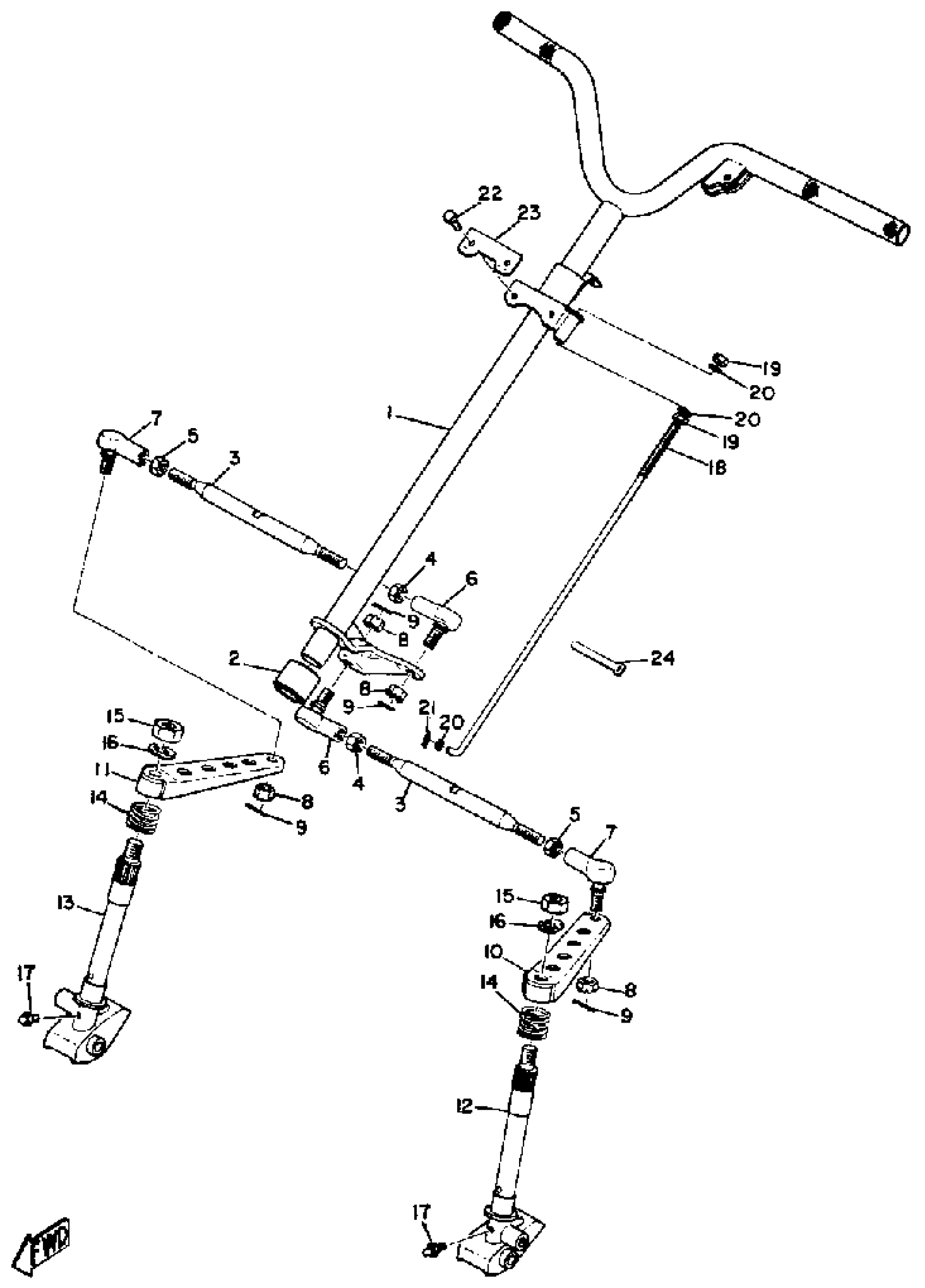

Yamaha GP396 1971 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

813-23811-00-00

Unavailable

2

BEARING, STRG LOWER

(806-23875-00-00)

Unavailable

3

ROD, STEERING RELAY

810-23821-01-00

Unavailable

4

. NUT, HEXAGON (802-23833-00)

90170-10082-00

Unavailable

5

NUT, HEXAGON

(90170-10135-00)

Unavailable

6

JOINT, UNIVERSAL 1

(806-23841-91-00)

Unavailable

7

JOINT, UNIVERSAL 2

806-23845-00-00

Unavailable

8

NUT, CASTLE

90171-10002-00

Unavailable

9

PIN, COTTER(6L5)

91490-25030-00

$3.77

10

ARM, OUTSIDE 1

(810-23851-00-00)

Unavailable

11

ARM, OUTSIDE 1

(810-23851-00-00)

Unavailable

12

COLUMN, SKI 1

(816-23853-00-00)

Unavailable

15

NUT, HEXAGON

95337-12600-00

$8.49

16

WASHER, LOCK (810-23857-00)

90215-12031-00

Unavailable

17

NIPPLE, GREASE

93700-06M03-00

Unavailable

18

BAR, TENSION

813-23861-00-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

WASHER(6TA)

92907-06200-00

Unavailable

21

CLIP (156-83525-00)

90468-10050-00

Unavailable

22

BOLT, HEXAGON

97017-06016-00

Unavailable

23

WASHER, LOCK 1

(810-23894-00-00)

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable
