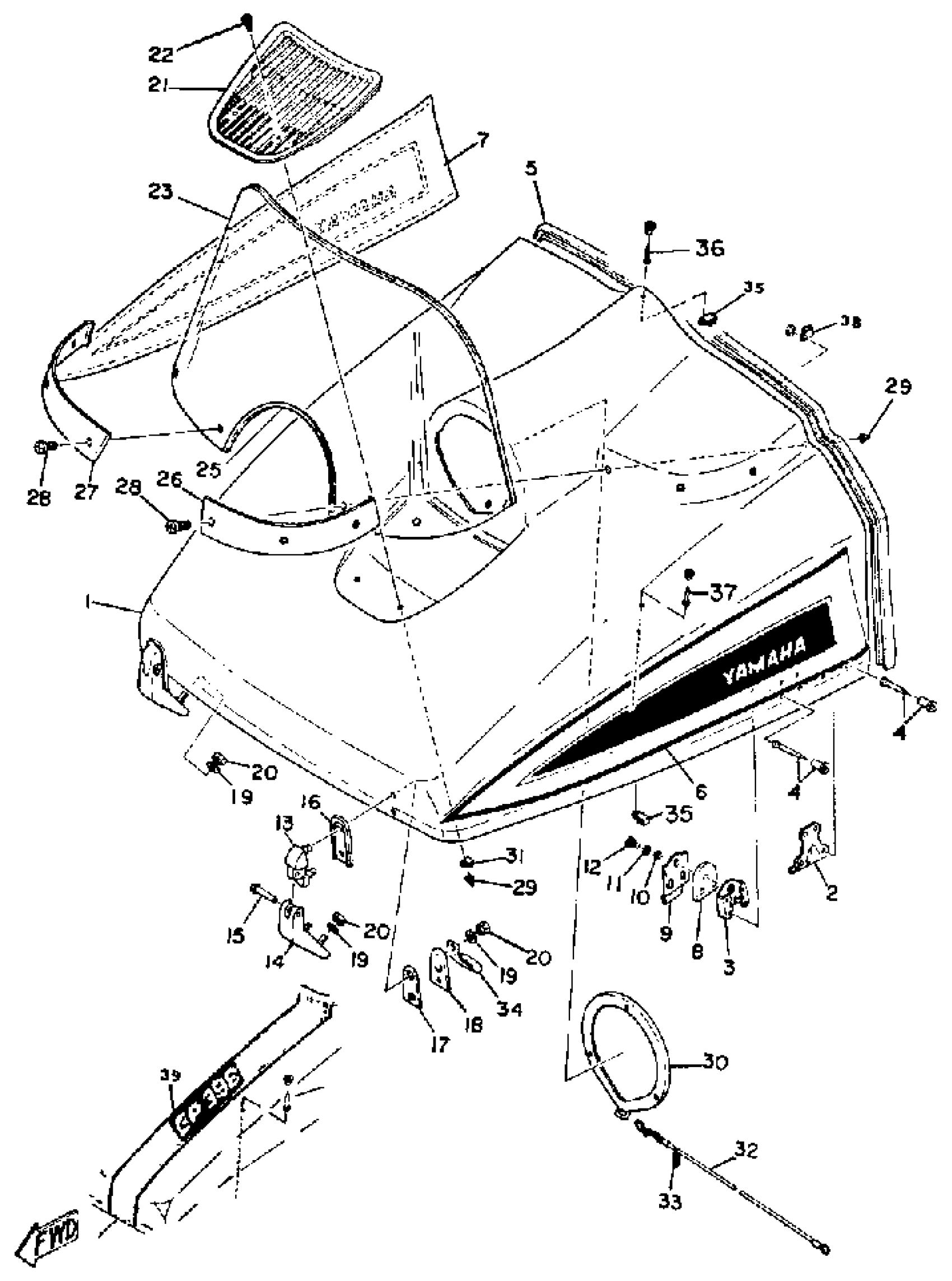

Yamaha GP396 1971 SHROUD Diagram

#

Description
Price

1

SHROUD

(806-77111-00-00)

Unavailable

2

. BODY, LATCH 1

806-77171-00-00

Unavailable

3

CLAMP 4

810-77138-00-00

Unavailable

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

Unavailable

5

TRIM 2

(806-77166-00-00)

Unavailable

6

ORNAMENT 1

810-77163-00-00

Unavailable

7

ORNAMENT 2

810-77164-00-00

Unavailable

8

WASHER 2

810-77179-00-00

Unavailable

9

CLAMP 2

810-77136-00-00

Unavailable

10

WASHER, PLATE 8067717800

90201-05029-00

$8.49

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

BOLT, HEXAGON

97013-05010-00

$0.59

13

HINGE 1

(806-77145-00-00)

Unavailable

14

HINGE 3

806-77147-00-00

Unavailable

15

PIN (806-77157-00)

90243-05002-00

Unavailable

16

DAMPER 1

(806-77198-00-00)

Unavailable

17

DAMPER 2

810-77199-00-00

Unavailable

18

PLATE, BACK UP 1

810-77153-00-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

LOUVER CMPLT

(810-77130-00-00)

Unavailable

22

SCREW, BINDING

98907-05016-00

Unavailable

23

WINDSHIELD

(806-77210-00-00)

Unavailable

25

TRIM 4

(806-77216-00-00)

Unavailable

26

TRIM, LOWER

(806-77214-00-00)

Unavailable

27

TRIM 3

806-77215-00-00

Unavailable

28

SCREW, BIND

98903-05016-00

Unavailable

29

NUT, T (802-77217-00)

90180-05004-00

Unavailable

30

HOLDER, ROD 1

(810-77139-00-00)

Unavailable

31

CLAMP 1

(810-77135-00-00)

Unavailable

32

STOPPER, SHROUD

(810-77118-00-00)

Unavailable

33

CLAMP, ROD

(807-77159-00-00)

Unavailable

34

CLAMP

90465-06013-00

Unavailable

35

CLAMP

(90461-05001-00)

Unavailable

36

RIVET (813)

90267-32070-00

Unavailable

37

RIVET, BLIND

(90267-32020-00)

Unavailable

38

CLAMP(83R)

90461-08113-00

Unavailable

39

ORNAMENT 3

(813-77169-00-00)

Unavailable
