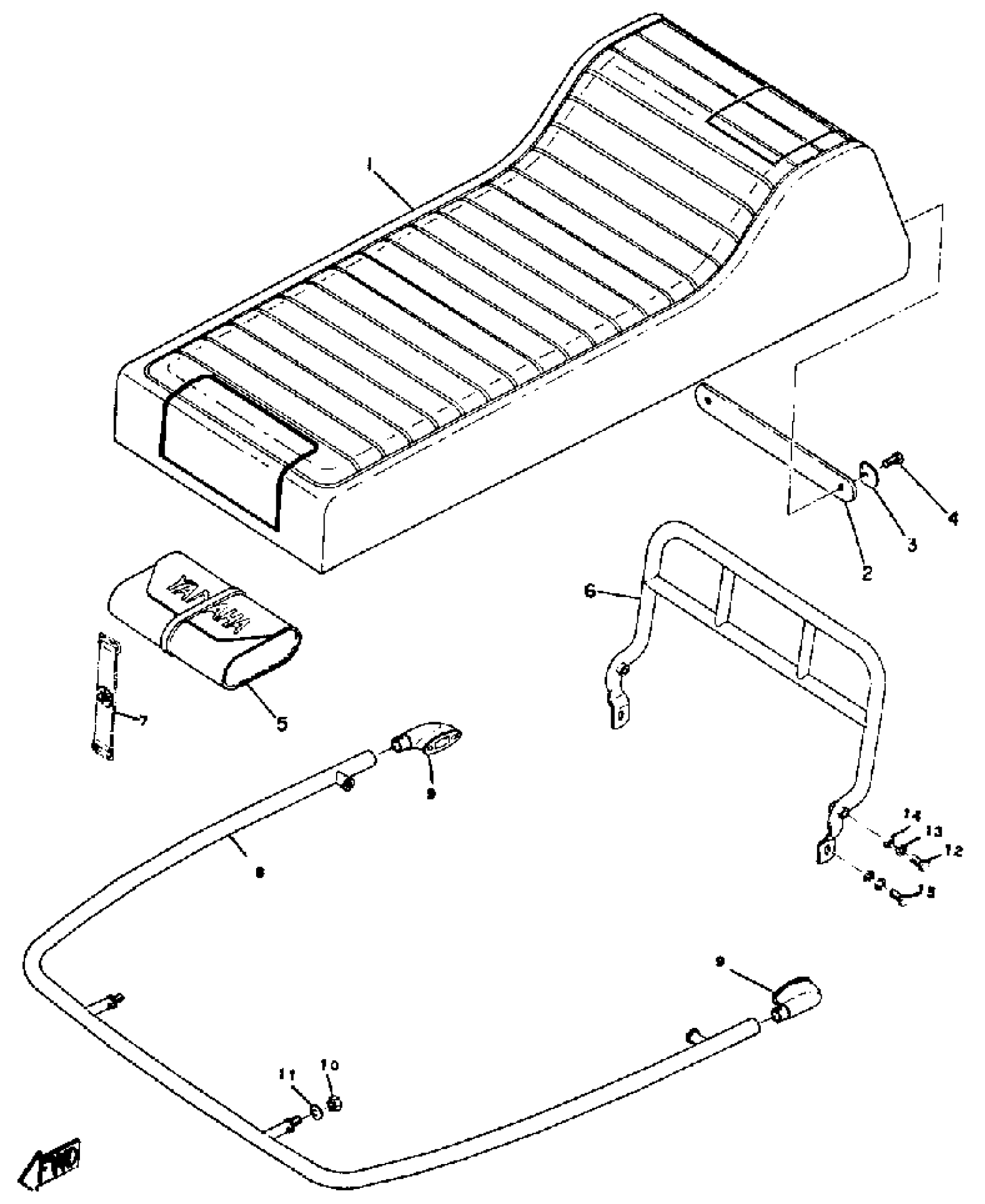

Yamaha GP396 1971 SEAT AND BUMPER Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

(813-24730-00-00)

Unavailable

1

COVER, DOUBLE SEAT

(813-24731-00-00)

Unavailable

2

WASHER, SEAT

(813-24746-00-00)

Unavailable

3

WASHER, LOCK

(90215-07064-00)

Unavailable

4

BOLT(7U8)

97080-06020-00

Unavailable

5

TOOL KIT

(806-28100-00-00)

Unavailable

6

BUMPER, REAR 1

(813-77541-00-00)

Unavailable

7

BAND, BATTERY

26L-82131-00-00

$7.99

8

FRONT BUMPER (806-77510-00)

821-77510-00-00

Unavailable

9

END, BUMPER

(806-77523-00-00)

Unavailable

10

NUT(6L2)

95333-08600-00

$2.49

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

BOLT

97013-08045-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

BOLT(JA9)

90101-08691-00

Unavailable
