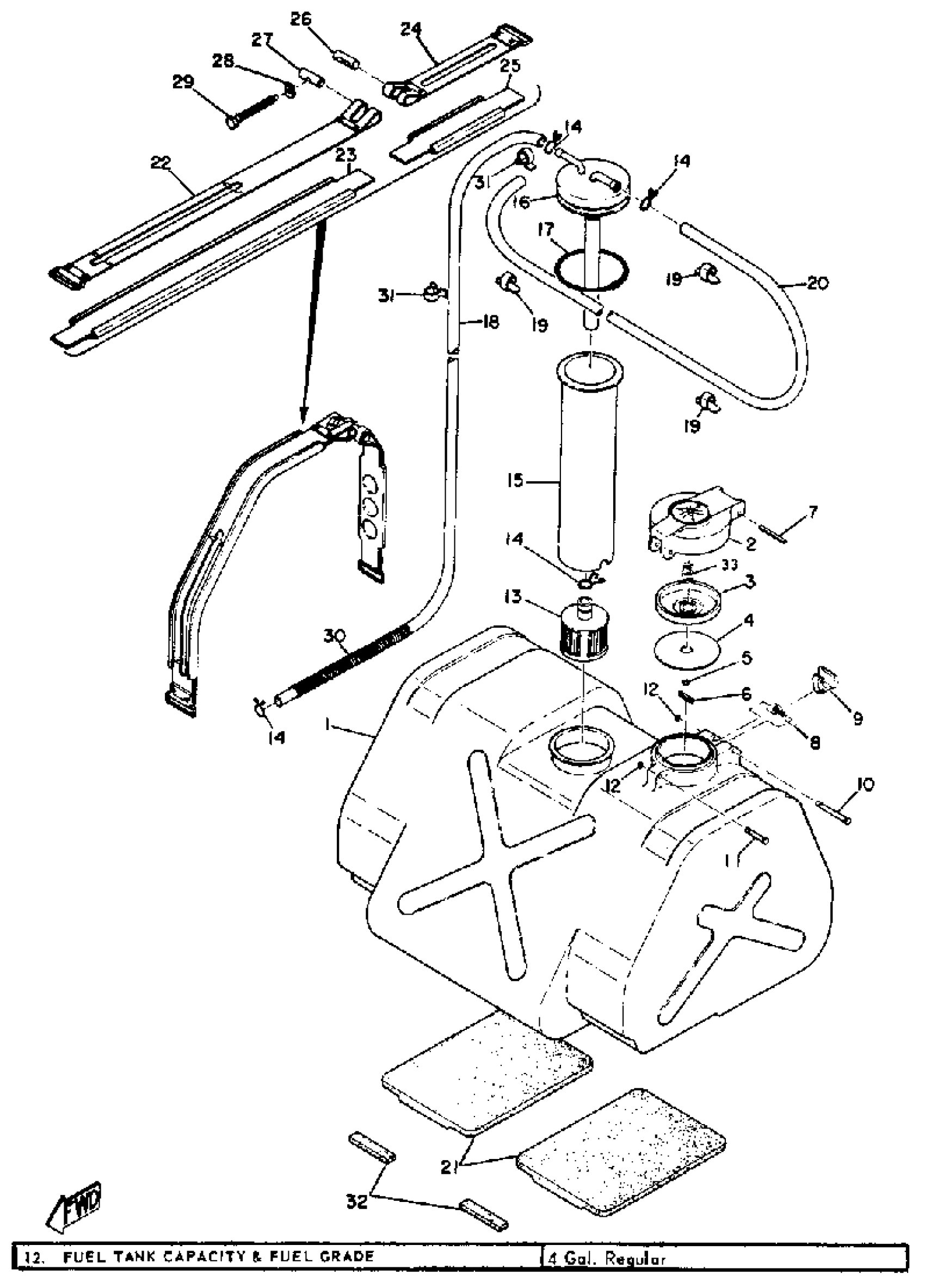

Yamaha GP396 1971 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

813-24111-00-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP

256-24612-00-00

Unavailable

5

O-RING (256)

93210-04122-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

SPRING, TORSION (813-24637-00)

90508-08003-00

Unavailable

9

HOOK

83M-24628-00-00

$24.99

10

PIN (813)

90249-03017-00

$7.49

11

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

12

CIRCLIP (604)

93430-02001-00

$8.49

13

FILTER ASSEMBLY

(813-24560-01-00)

Unavailable

14

CLIP (8J7)

90467-11009-00

$10.49

15

PIPE, SUCTUIN

813-24336-00-00

Unavailable

16

PIPE, SUCTION 1

813-24335-00-00

Unavailable

17

SPRING, TENSION (8R4)

90506-06261-00

Unavailable

18

HOSE

90446-11040-00

Unavailable

19

CLAMP, FUEL PIPE 1

(813-24366-00-00)

Unavailable

20

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

21

DAMPER, LOCATING 1

(813-24181-00-00)

Unavailable

22

BAND, TNK FITTING 1

(813-24173-00-00)

Unavailable

23

DAMPER, LOCATING 3

(813-24183-00-00)

Unavailable

24

BAND, TNK FITTING 2

(813-24199-00-00)

Unavailable

25

DAMPER, LOCATING 4

(813-24184-00-00)

Unavailable

26

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

Unavailable

27

CLAMP

806-24135-00-00

Unavailable

28

WASHER, LOCK

(90215-05058-00)

Unavailable

29

SCREW, HEXAGON

(90153-05002-00)

Unavailable

30

SPRING, COMPRESSION (3LD4)

90501-084G9-00

Unavailable

31

CLAMP

(90463-07002-00)

Unavailable

32

SEAT, TNK PROTECTOR

(813-24193-00-00)

Unavailable

33

SPRING, CAP

90501-20130-00

Unavailable
