1971 Yamaha GP396 Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

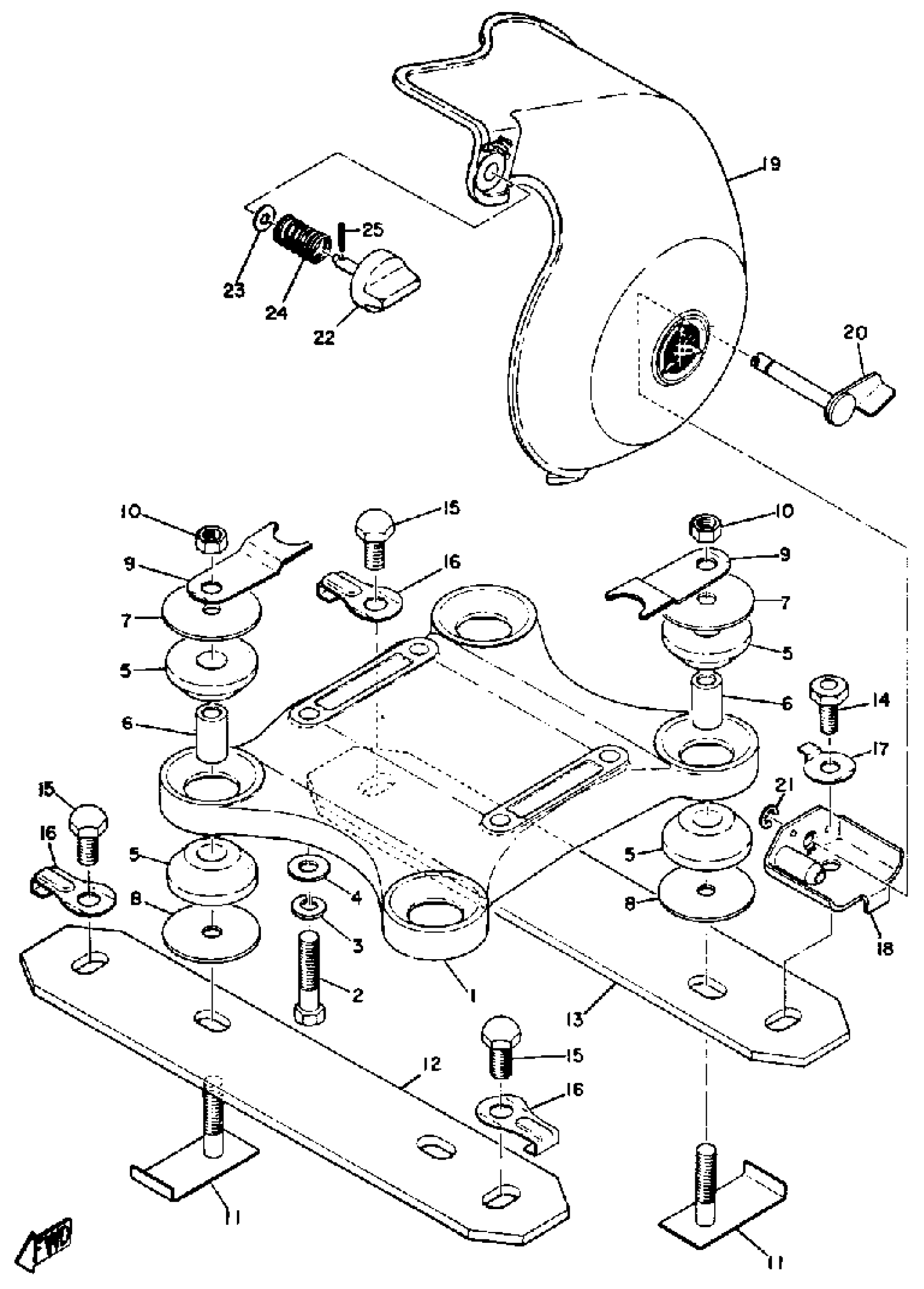

1971 Yamaha GP396 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(807-21411-00-00)

1
Out of stock

2

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

3

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

4

1

$3.00

In stock

5

DAMPER, ENG MOUNT 1

807-15316-00-00

1
Out of stock

6

SPACER

90560-10020-00

1
Out of stock

7

WASHER, LOCK

(807-21491-00-00)

1
Out of stock

8

WASHER, PLATE (807-21492-00)

90201-10152-00

1
Out of stock

9

WASHER, LOCK

(90215-10074-00)

1
Out of stock

10

NUT (682)

95380-10700-00

1

$5.78

In stock

11

BOLT, ENG MNTNG 2

(807-21482-00-00)

1
Out of stock

12

BRACKET, ENGINE 2

(806-21419-00-00)

1
Out of stock

13

BRACKET, ENGINE 3

(810-21429-00-00)

1
Out of stock

14

BOLT

90101-10055-00

1
Out of stock

15

BOLT(8BT)

97017-10020-00

1
Out of stock

16

WASHER, LOCK

(810-21492-00-00)

1
Out of stock

17

WASHER, LOCK

90215-10073-00

1
Out of stock

18

BRACKET 1

(806-77315-01-00)

1
Out of stock

19

GUARD, DRIVE

(810-77311-01-00)

1
Out of stock

20

ARM, FITTING

806-77314-00-00

1
Out of stock

21

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

22

KNOB

(806-77324-00-00)

1
Out of stock

23

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

24

SPRING 1

806-77325-00-00

1
Out of stock

25

PIN, SPRING

91690-25016-00

—
Out of stock
