1971 Yamaha GP396 Crank AND Piston Diagram

← All diagrams

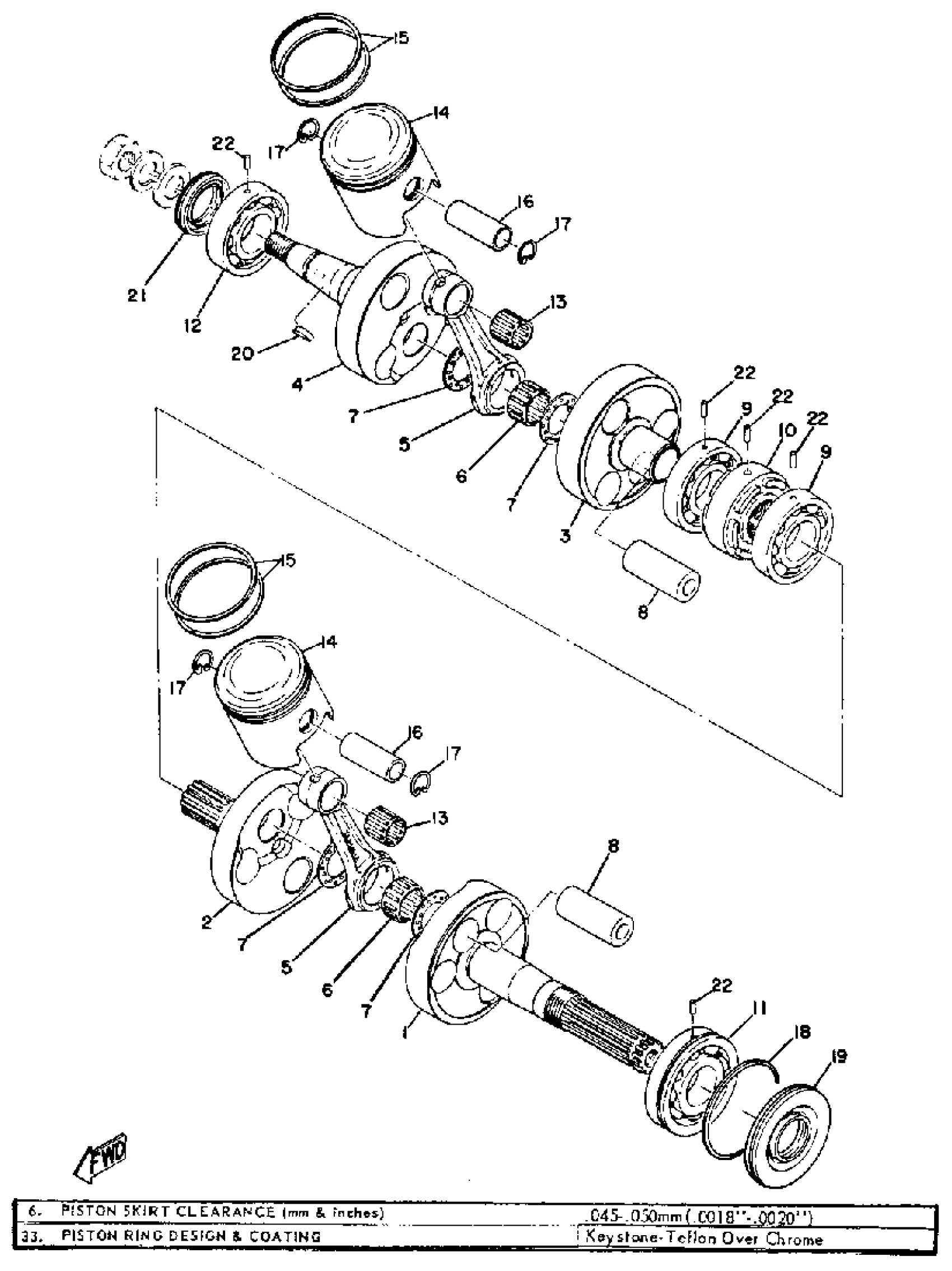

Find the part on the Crank AND Piston diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha GP396 Crank AND Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(811-11400-00-00)

1
Out of stock

1

CRANK 1

(811-11412-00-00)

1
Out of stock

2

CRANK 2

(811-11422-00-00)

1
Out of stock

3

CRANK 3

(807-11432-00-00)

1
Out of stock

4

CRANK 4

(807-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

6

BEARING

93310-424E8-00

1

$19.49

In stock

7

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

8

. PIN, CRANK 1

168-11681-00-00

1
Out of stock

9

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

10

. SEAL, LABYRINTH 1

811-11515-00-00

1
Out of stock

11

. BEARING

93306-30603-00

1
Out of stock

12

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

13

1

$32.87

In stock

14

PISTON STD

(811-11631-00-96)

1
Out of stock

14

PISTON 1 O/S 0.25

(811-11635-00-00)

1
Out of stock

14

PISTON 2 O/S 0.50

(811-11636-00-00)

1
Out of stock

15

PISTON RINGSET STD

807-11601-00-00

1
Out of stock

15

PISTON RINGSET 1ST

(807-11601-10-00)

1
Out of stock

15

PISTON RINGSET 2ND

807-11601-20-00

1
Out of stock

16

PIN, PISTON

168-11633-00-00

1
Out of stock

17

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

18

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

19

OIL SEAL, SW-TYPE

93103-32054-00

1
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

22

PIN,DOWEL (168)

93604-12037-00

—
Out of stock
