1974 Yamaha GP338F Track Suspension Diagram

← All diagrams

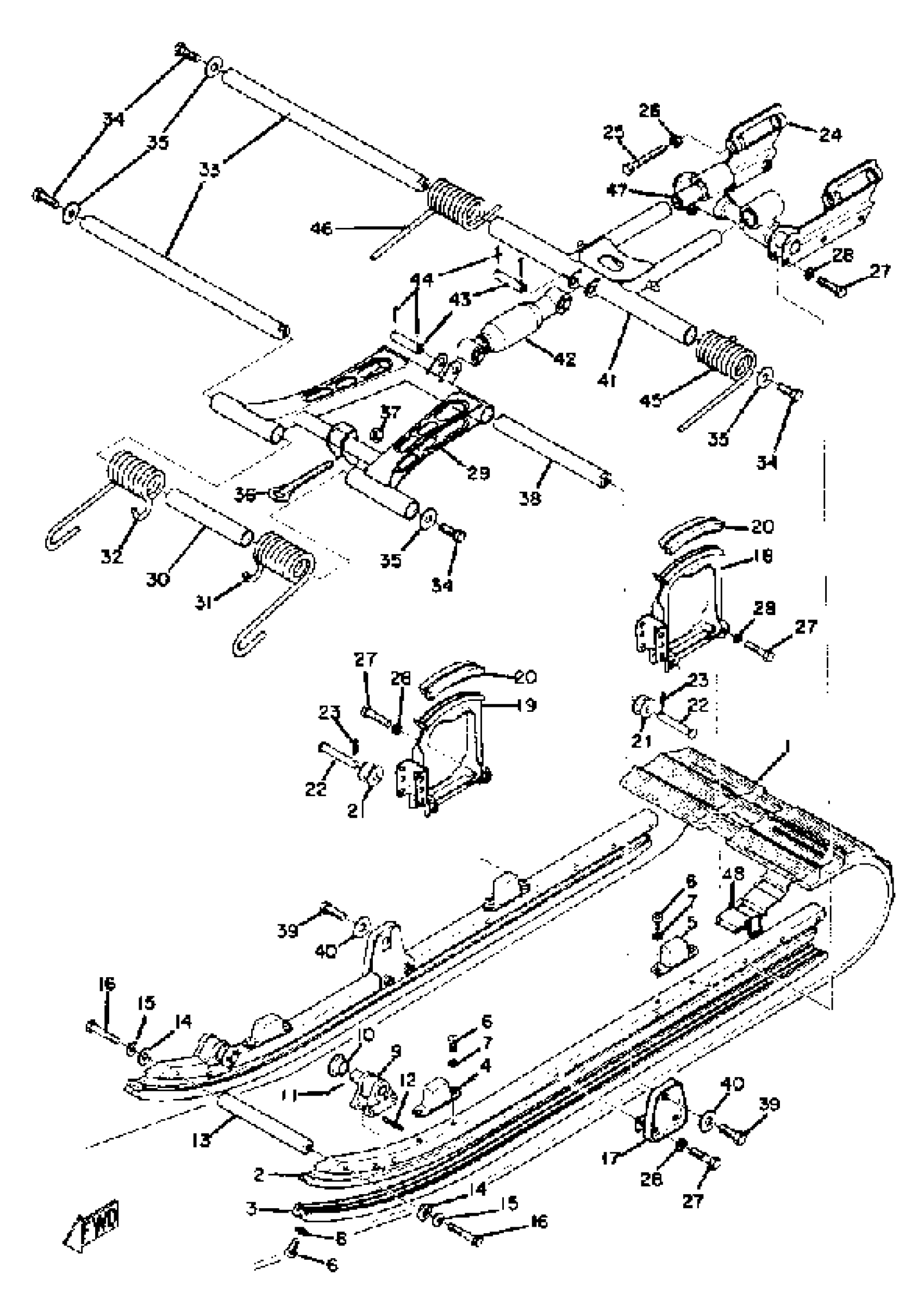

Find the part on the Track Suspension diagram for your 1974 Yamaha GP338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP338F Track Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

865-47110-00-00

1
Out of stock

1

WHEEL, GUIDE 2

(865-47535-01-00)

1
Out of stock

2

FRAME, SLIDING 1

(865-47411-00-00)

1
Out of stock

2

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

3

RUNNER, SLIDING 1

865-47421-00-00

1
Out of stock

3

BAR, SUSPENSION

(865-47451-00-00)

1
Out of stock

4

DAMPER 1

(865-47456-01-00)

1
Out of stock

4

SPACER

(865-47466-00-00)

1
Out of stock

5

BRACKET 3

(865-47417-00-00)

1
Out of stock

5

DAMPER 2

(865-47457-01-00)

1
Out of stock

6

. BOLT, HEXAGON

97311-10040-00

1
Out of stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

8

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

8

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

9

HOOK 1

(865-47446-00-00)

1
Out of stock

9

WASHER, PLATE (3L5)

90201-08772-00

—
Out of stock

10

ROLLER

865-47429-00-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

11

PIN, COTTER

91490-30030-00

—

$7.15

In stock

12

PIN, SPRING

91609-60036-00

1
Out of stock

13

SHAFT 1

865-47465-00-00

1
Out of stock

14

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

15

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

16

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

17

BRACKET 1

865-47415-01-00

1
Out of stock

18

STOPPER 1

865-47495-00-00

1
Out of stock

19

STOPPER 2

865-47496-00-00

1
Out of stock

20

RUNNER, SLIDING 2

865-47422-00-00

1
Out of stock

21

ROLLER 2

(865-47439-00-00)

1
Out of stock

22

PIN, CLEVIS

90240-10028-00

1
Out of stock

23

CLIP

90468-18019-00

1
Out of stock

24

BRACKET, REAR 1

(865-47426-00-00)

1
Out of stock

25

BOLT SET (865,9010110200)

99999-02604-00

1
Out of stock

26

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

27

BOLT

97014-08040-00

—

$5.26

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

ARM, PIVOT 1

(865-47331-01-00)

1
Out of stock

30

TUBE, STRUCTURE

90440-25001-00

1
Out of stock

31

SPRING, TORSION

90508-73149-00

1
Out of stock

32

SPRING, TORSION

90508-73150-00

1
Out of stock

33

SHAFT, PIVOT

(865-47337-00-00)

1
Out of stock

34

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

35

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

36

HOOK 2

865-47447-00-00

1
Out of stock

37

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

38

SHAFT 2

865-47475-00-00

1
Out of stock

39

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

40

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

41

ARM, PIVOT 2 (865-47332-00)

865-47332-01-00

1
Out of stock

42

SHOCK ABSORBER

(865-47480-00-00)

1
Out of stock

43

PIN 1

(865-47449-00-00)

1
Out of stock

44

PIN, COTTER

91490-30030-00

—

$7.15

In stock

45

SPRING, TORSION

90508-75151-00

1
Out of stock

46

SPRING, TORSION

(90508-75152-00)

1
Out of stock

47

BUSH, SPEC''L NYLON

(90386-22033-00)

1
Out of stock

48

METAL, SLIDE

865-47115-09-00

1
Out of stock

48

IDLER WHEEL KIT

(8G5-47000-00-00)

1
Out of stock
