1974 Yamaha GP338F Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1974 Yamaha GP338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

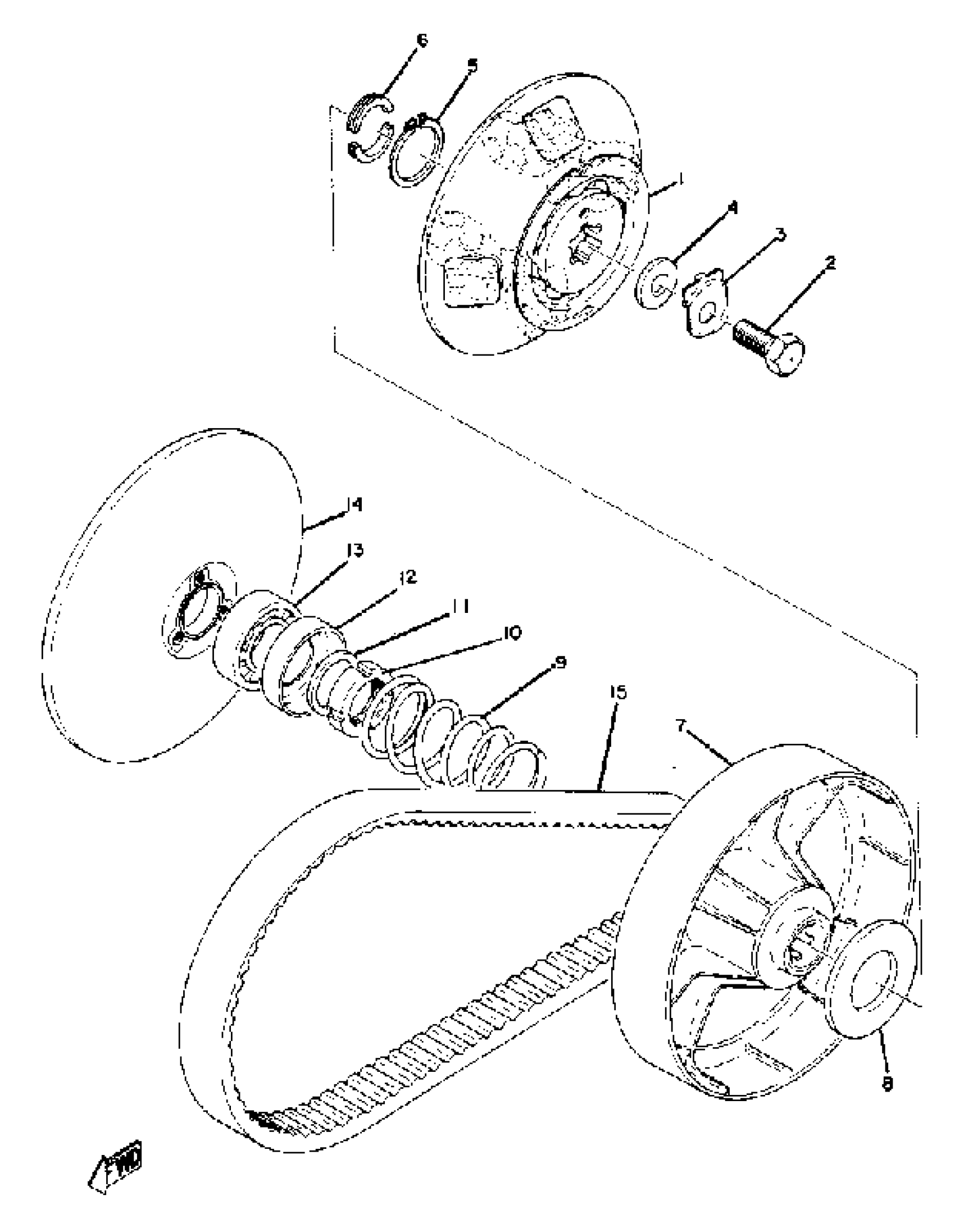

1974 Yamaha GP338F Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI. SHEAVE CAP (864-17630-01)

8F8-W1762-00-00

1
Out of stock

2

BOLT

(838-17647-01-00)

1
Out of stock

3

WASHER, LOCK

90215-12084-00

1
Out of stock

4

WASHER (838)

90201-12191-00

1

$6.11

In stock

5

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

6

COLLAR

806-17645-00-00

1
Out of stock

7

PRI SLIDG SHEAVECOMP.

864-17620-00-00

1
Out of stock

8

CAM

823-17623-00-00

1
Out of stock

9

SPRING, COMPRESSION

90501-50207-00

1
Out of stock

10

NUT, BEARING

(810-17642-00-00)

1
Out of stock

11

WASHER, CONICAL SPR

90208-28003-00

1
Out of stock

12

SEAT, SPRING

806-17644-00-00

1
Out of stock

13

BEARING

93306-07806-00

1

$56.18

In stock

14

PRI. FIXED SHEAVE

(864-W1761-00-00)

1
Out of stock

15

V-BELT

820-17641-01-00

1

$33.66

In stock
