Description

Price

1

STEERING GATE

(861-23870-00-00)

Unavailable

2

BOLT, HEXAGON

97027-08018-00

Unavailable

3

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

4

WASHER, LOCK 2

(861-23895-00-00)

Unavailable

5

PANEL, INSTRUMENT

(865-77711-00-00)

Unavailable

6

GROMMET (462)

90480-13018-00

$8.49

7

BOLT, HEXAGON

(97306-05012-00)

Unavailable

8

WASHER(3SX)

92907-05100-00

$8.49

9

WASHER, PLAIN LARGE

92907-05200-00

$4.46

10

FOOTREST 1

(841-27411-00-00)

Unavailable

11

FOOTREST 2

(841-27421-00-00)

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

BAND, SWITCH CORD

437-83936-11-00

Unavailable

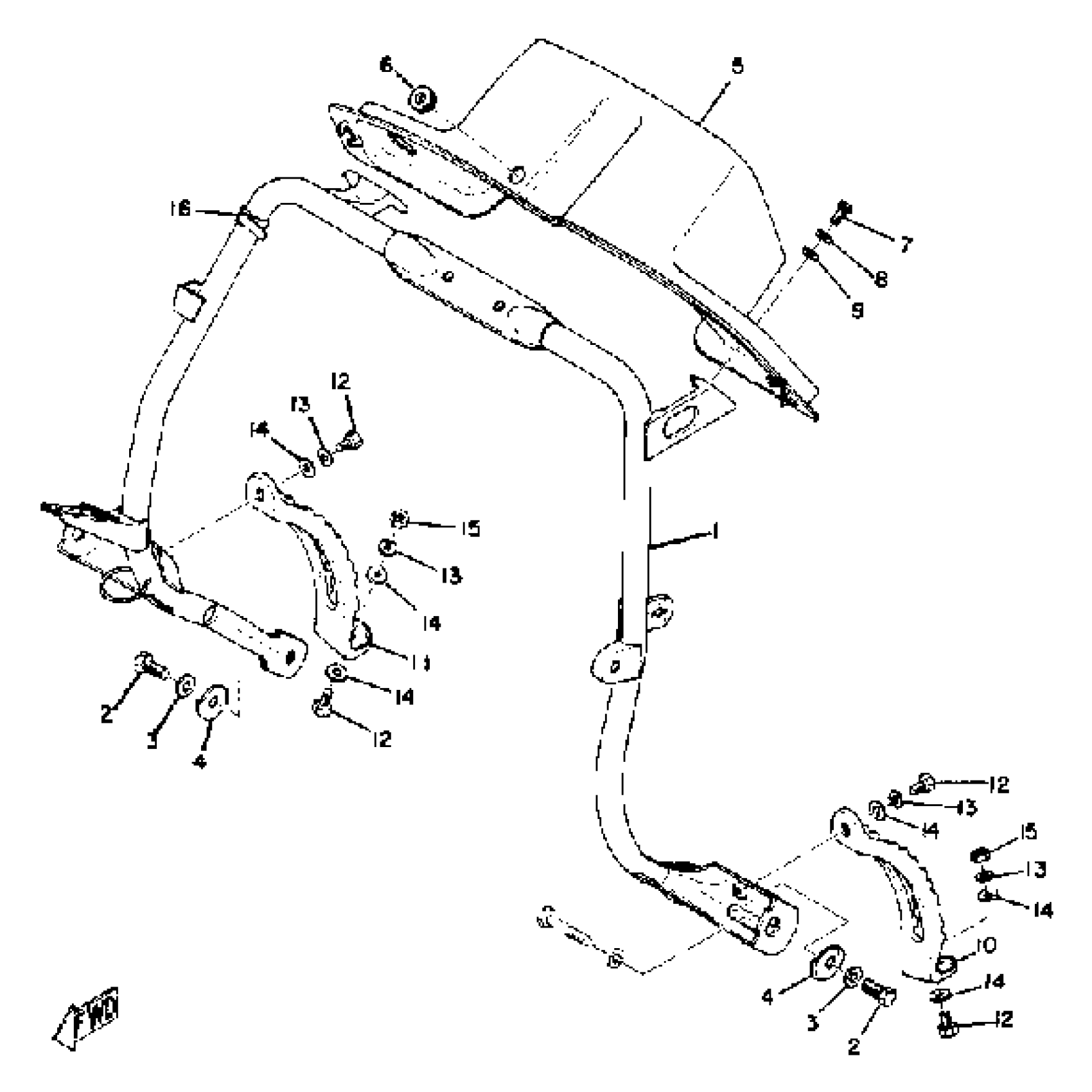

Yamaha GP338F 1974 STEERING GATE Diagram

STEERING GATE

BOLT, HEXAGON

WASHER, PLATE (1E7)

WASHER, LOCK 2

PANEL, INSTRUMENT

GROMMET (462)

BOLT, HEXAGON

WASHER(3SX)

WASHER, PLAIN LARGE

FOOTREST 1

FOOTREST 2

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

YBS66-6 WASHER, PLAIN

NUT, HEXAGON

BAND, SWITCH CORD
