Description

Price

1

CASE, FAN

(838-12621-00-00)

Unavailable

2

CASE, FAN 2

838-12622-00-00

Unavailable

3

PIN,DOWEL (168)

93604-12037-00

$8.49

4

PLATE

(821-12633-00-00)

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

PLATE

(807-12633-00-00)

Unavailable

7

WASHER, LOCK 1

(838-12624-00-00)

Unavailable

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

AIR SHROUD, CYLINDER 1

(8A0-12651-00-00)

Unavailable

10

AIR SHROUD, CYLINDER 2

(840-12652-00-00)

Unavailable

11

SCREW, PAN

98517-06012-00

$3.78

12

WASHER, SPRING

92907-06100-00

$4.25

13

WASHER(6TA)

92907-06200-00

$8.49

14

EMBLEM

(838-12629-00-00)

Unavailable

15

CLAMP, OIL PIPE

(841-24369-00-00)

Unavailable

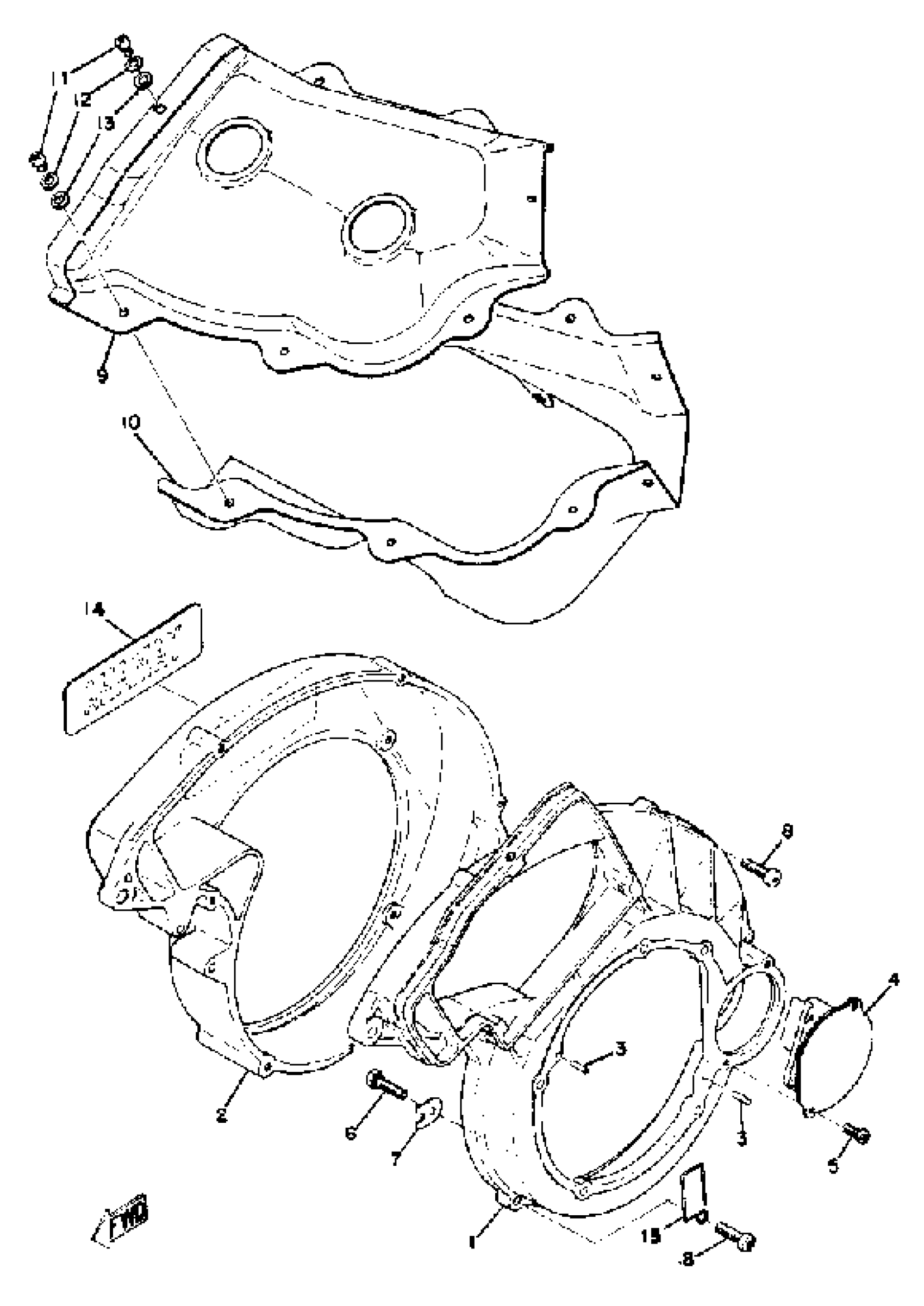

Yamaha GP338F 1974 FAN CASE - AIR SHROUD Diagram

CASE, FAN

CASE, FAN 2

PIN,DOWEL (168)

PLATE

SCREW, PAN HEAD(62X)

PLATE

WASHER, LOCK 1

SCREW, PAN HEAD (76T)

AIR SHROUD, CYLINDER 1

AIR SHROUD, CYLINDER 2

SCREW, PAN

WASHER, SPRING

WASHER(6TA)

EMBLEM

CLAMP, OIL PIPE
