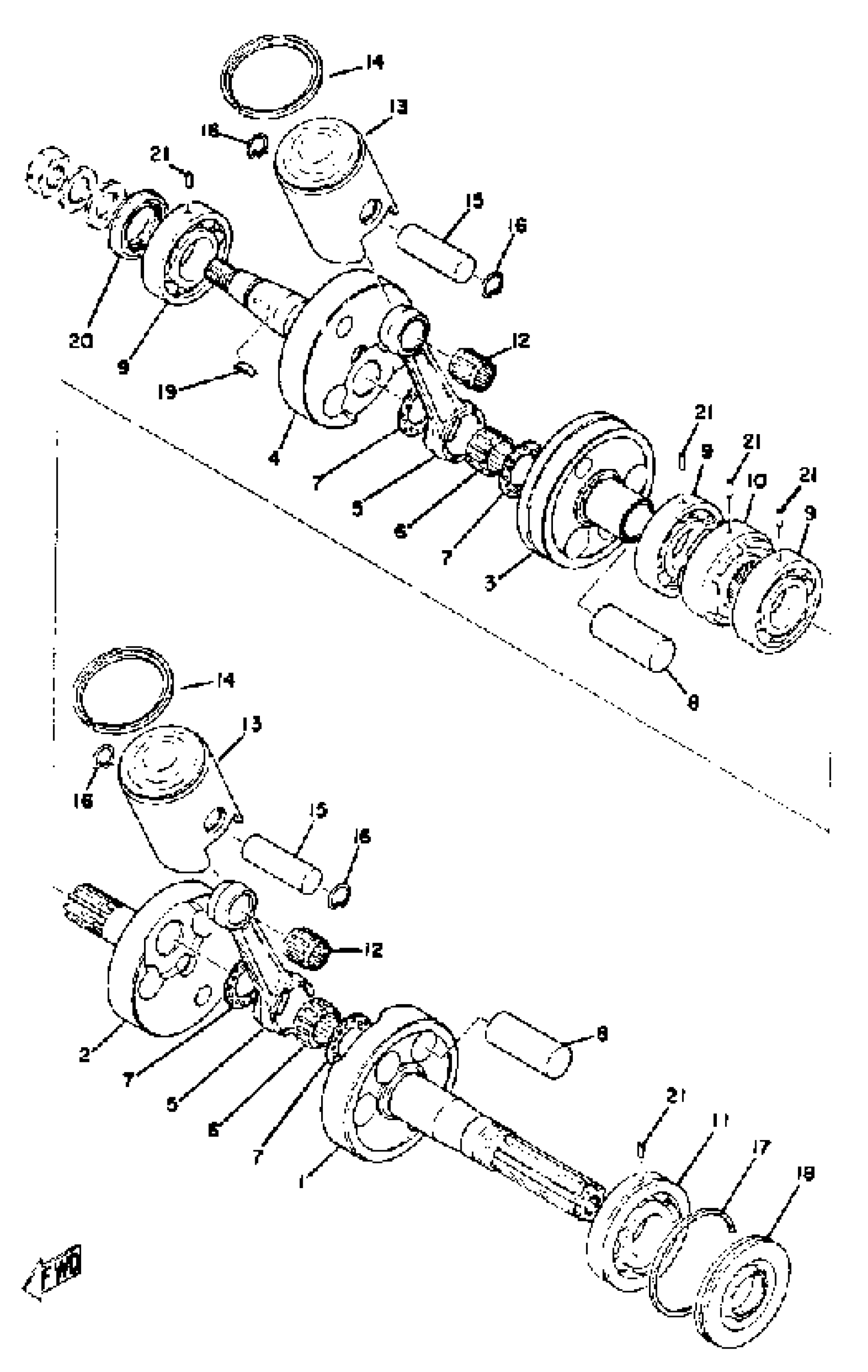

Yamaha GP338F 1974 CRANK - PISTON Diagram

#

Description
Price

1

CRANK 1

(838-11412-00-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

840-11400-00-00

Unavailable

2

CRANK 2

(821-11422-01-00)

Unavailable

3

CRANK 3

(821-11432-01-00)

Unavailable

4

CRANK 4

(821-11442-00-00)

Unavailable

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

Unavailable

6

BEARING

93310-424E8-00

Unavailable

7

WASHER (152-11685-00)

90209-24073-00

$14.99

8

. PIN, CRANK 1

857-11681-00-00

Unavailable

9

BEARING(8V0)

93306-20633-00

$76.99

10

SEAL, LABYRINTH 1

(168-11515-00-00)

Unavailable

11

. BEARING

93306-30603-00

Unavailable

12

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

13

PISTON STD

(865-11631-00-96)

Unavailable

13

PISTON 1 O/S 0.25

865-11635-00-00

Unavailable

13

PISTON 2 O/S 0.50

(865-11636-00-00)

Unavailable

14

RING, PISTON

846-11611-00-00

Unavailable

14

RING, PISTON 1ST

846-11611-10-00

Unavailable

14

RING, PISTON 2ND

846-11611-20-00

Unavailable

15

PIN, PISTON

168-11633-00-00

Unavailable

16

CLIP 6041163400

93450-20026-00

Unavailable

17

CIRCLIP, OUTER

93440-78011-00

Unavailable

18

OIL SEAL, SW-TYPE

93103-32054-00

Unavailable

19

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable

20

OIL SEAL(83R)

93103-32156-00

Unavailable

21

PIN,DOWEL (168)

93604-12037-00

Unavailable
