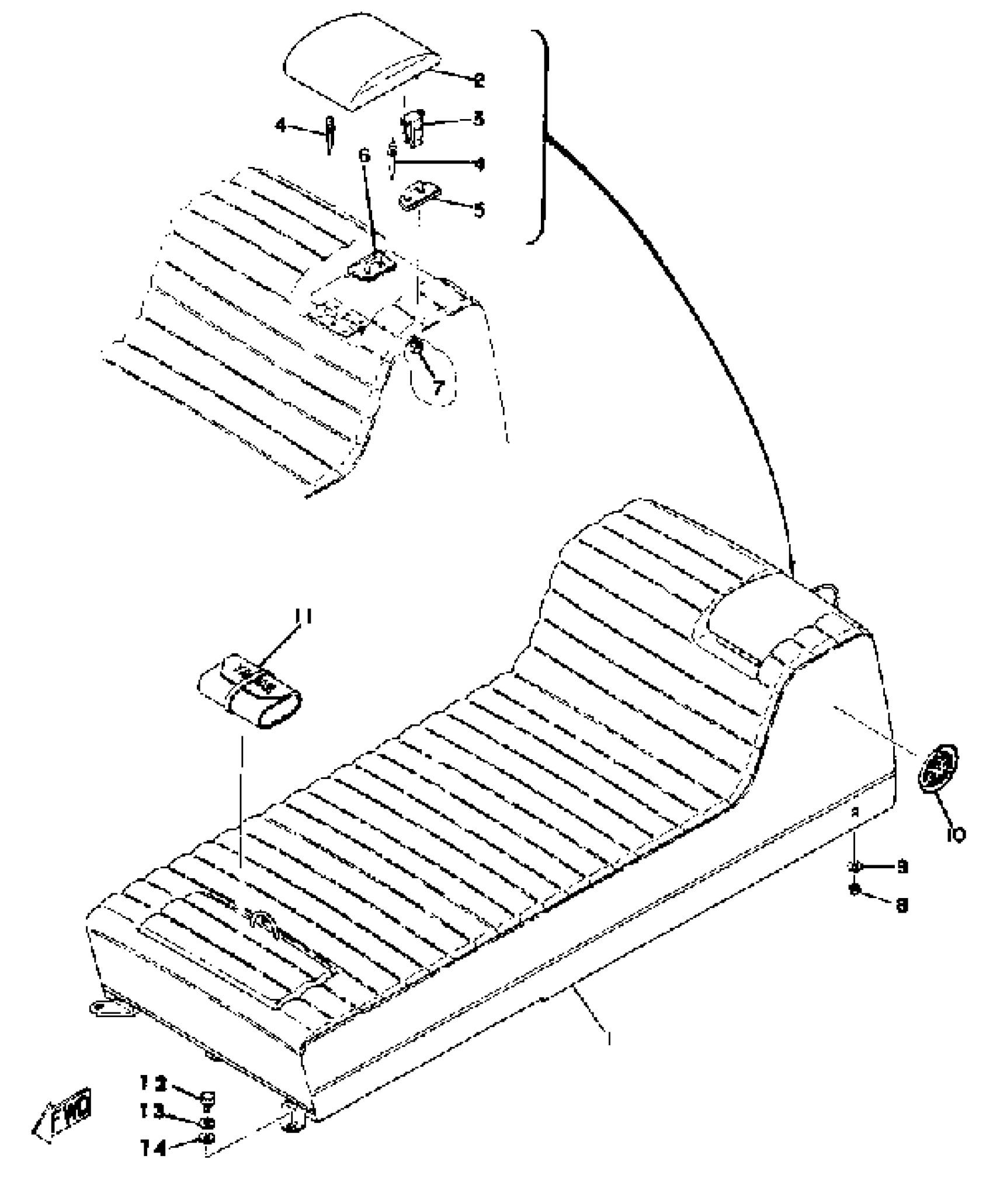

Yamaha GP338 1973 SEAT Diagram

#

Description
Price

1

COVER, DOUBLE SEAT

(841-24731-00-00)

Unavailable

1

DOUBLE SEAT ASSEMBLY

844-24730-00-00

Unavailable

2

. LID, DOUBLE SEAT

838-24765-00-00

Unavailable

3

SPRING, SEAT BACK

(821-24794-00-00)

Unavailable

4

RIVET, BLIND

(90267-32017-00)

Unavailable

5

PIN

(838-24793-00-00)

Unavailable

6

PIN

(838-24784-00-00)

Unavailable

7

NUT(650)

95380-06700-00

$8.49

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

9

WASHER, CONICAL SPRING

90208-08011-00

Unavailable

10

EMBLEM 2

821-77352-00-00

Unavailable

11

TOOL KIT

(821-28100-10-00)

Unavailable

12

BOLT, HEXAGON

97017-06016-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER, PLATE 8221447500

90201-06057-00

$5.60
