CARBURETOR

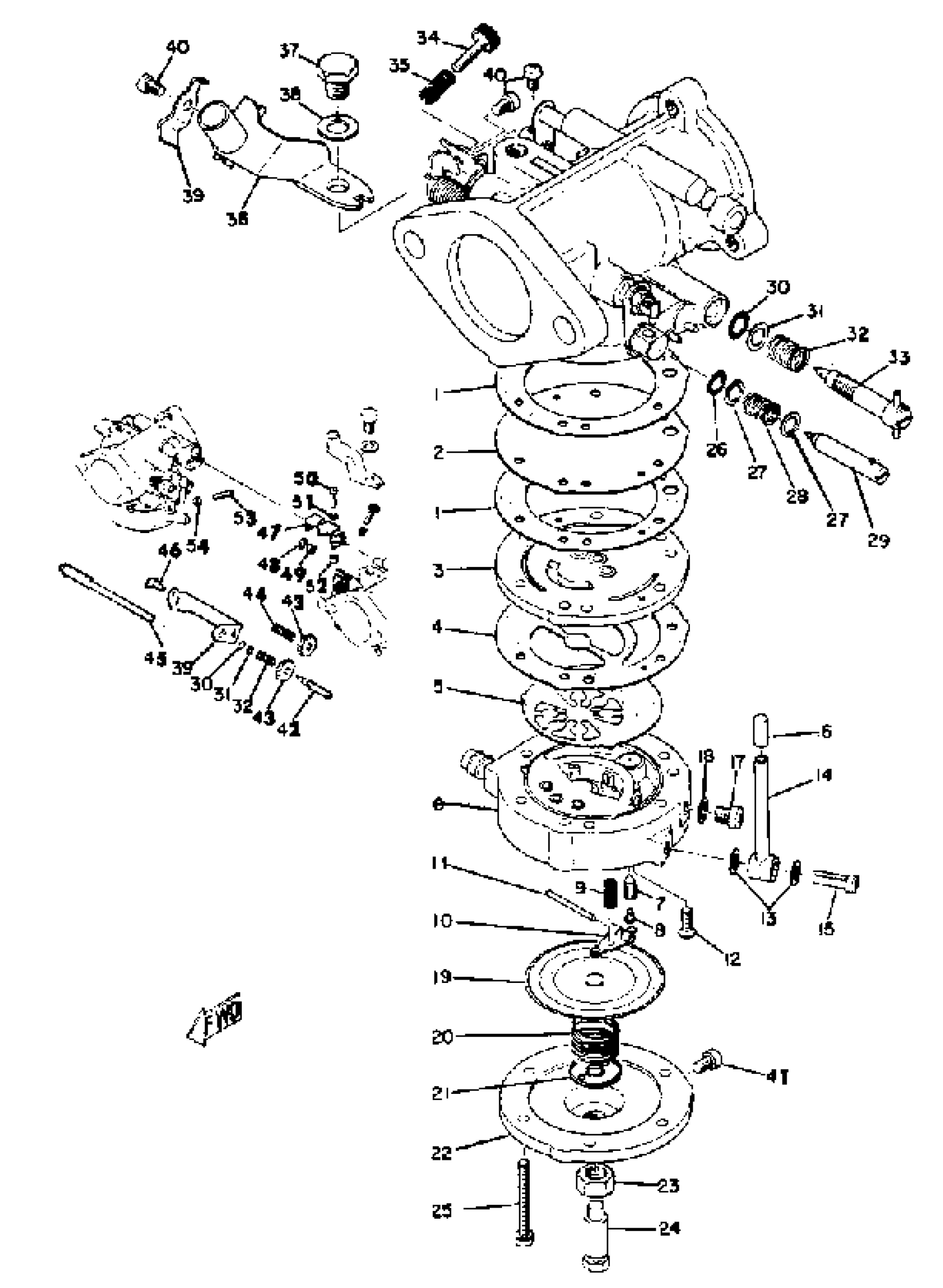

1973 Yamaha GP338 Carburetor Diagram
Find the part on the Carburetor diagram for your 1973 Yamaha GP338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
846-14501-00-00
1
CARBURETOR ASSEMBLY 2
(846-14502-00-00)
2
. DIAPHRAGM, PUMP
834-14541-00-00
3
BODY, PUMP 1
(838-14542-00-00)
4
GASKET
834-14553-09-00
6
BODY, PUMP 2
(844-14543-00-00)
9
. SPRING
810-14556-00-00
10
ARM, FLOAT
(810-14547-00-00)
11
PIN, FLOAT ARM
(806-14548-00-00)
13
. WASHER
806-14559-00-00
14
. PIPE, AIRVENT
810-14197-02-00
15
. SCREW
8A1-14592-00-00
16
. CAP, BLIND
810-24462-01-00
17
SCREW
(806-14567-01-00)
18
. WASHER
810-14597-00-00
19
DIAPHRAGM
810-14545-00-00
20
SPRING
(810-14555-00-00)
21
SEAT, SPRING
(810-14136-00-00)
22
BODY, PUMP 3
(810-14544-00-00)
24
. SCREW, STOP
824-14565-00-00
25
SCREW
(824-14567-00-00)
26
. O-RING
824-14563-00-00
27
. WASHER
838-14596-00-00
28
SPRING, AJST SCREW
(824-14531-00-00)
29
SCREW, ADJUST
(838-14522-00-00)
30
. O-RING
824-14564-00-00
31
. WASHER
838-14597-00-00
32
SPRING, AJST SCREW
(824-14533-00-00)
33
SCREW, ADJUST
(844-14521-00-00)
34
SCREW, STOP
(810-14523-00-00)
35
SPRING, AJST SCREW
(806-14533-00-00)
36
. BRACKET, THROTTLE
828-14571-00-00
39
PLATE
(844-14527-00-00)
42
SCREW, ADJUST
(844-14521-00-00)
43
GEAR
(844-42152-00-00)
44
SPRING, AJST SCREW
(844-14533-00-00)
45
SHAFT, LINK
(844-41258-00-00)
46
SCREW
(844-14567-00-00)
47
CONNECTOR
(844-14588-00-00)
48
WASHER
(806-14598-00-00)
50
SCREW, STOP
(844-14566-00-00)
53
SCREW
(813-14591-00-00)
54
NUT
(806-14594-00-00)
