1976 Yamaha GP300 Track Suspension Diagram

← All diagrams

Find the part on the Track Suspension diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

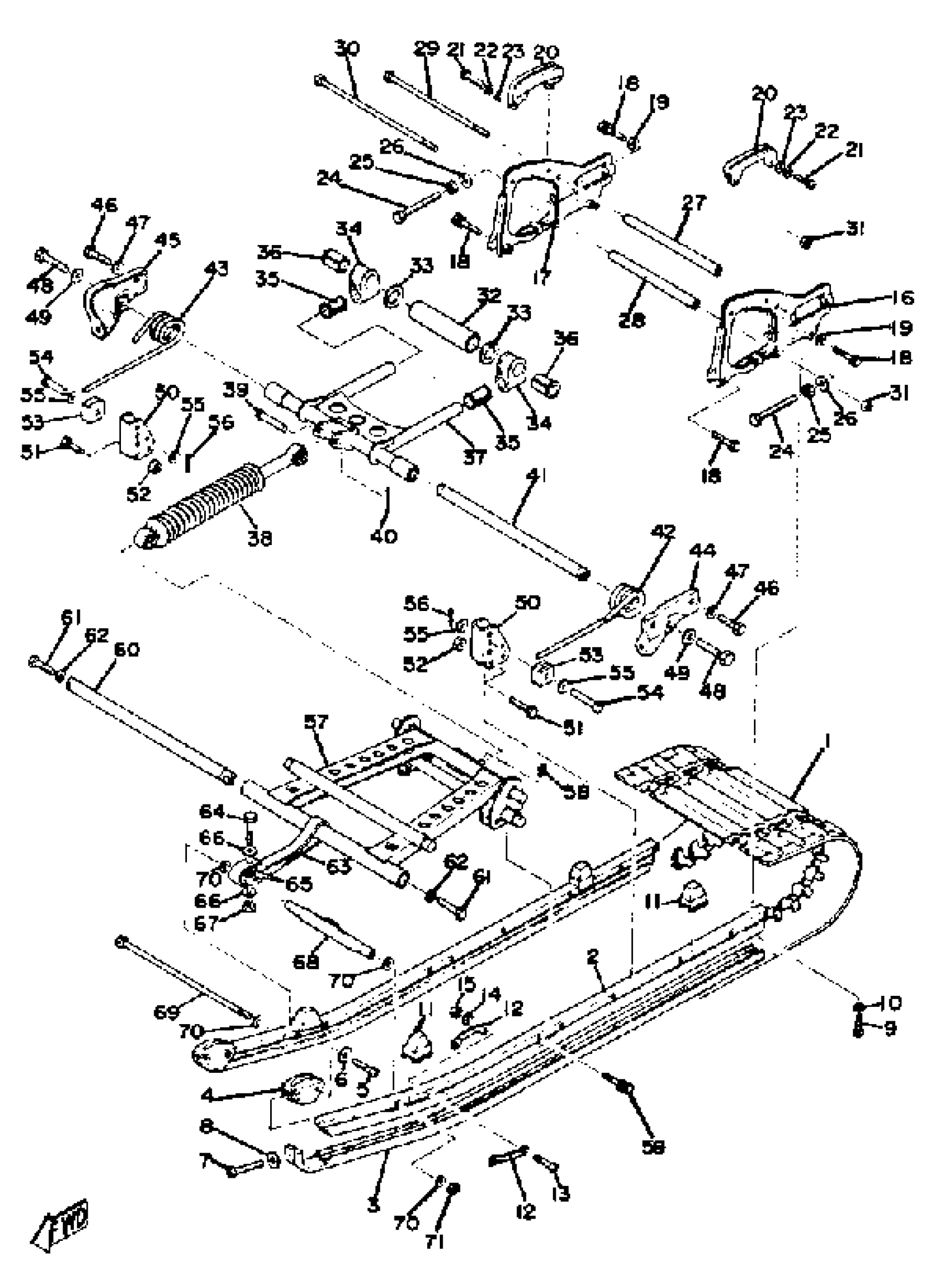

1976 Yamaha GP300 Track Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

(890-47110-00-00)

1
Out of stock

2

FRAME, SLIDING 1

890-47411-00-00

1
Out of stock

3

RUNNER, SLIDING 1 (890-47421-00)

890-47421-90-XX

1
Out of stock

4

RUNNER, SLIDING 3

885-47423-00-00

1
Out of stock

5

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

6

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

7

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

8

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

9

BOLT,SOCKET

91317-06010-00

1

$6.91

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

DAMPER 2

885-47457-00-00

1
Out of stock

12

PLATE, DAMPER

885-47458-01-00

1
Out of stock

13

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

FRAME, SLIDING 2

(885-47412-00-00)

1
Out of stock

17

FRAME, SLIDING 3

(885-47413-00-00)

1
Out of stock

18

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

19

WASHER, PLATE

90201-08020-00

—

$4.67

In stock

20

RUNNER, SLIDING

8E3-47422-00-00

—

$17.09

In stock

21

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

BOLT, HEXAGON (899 TRACK)

90101-10293-00

—
Out of stock

25

NUT (682)

95380-10700-00

1

$5.78

In stock

26

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

27

COLLAR (899 SUSPENSION)

90387-08497-00

—

$12.38

In stock

28

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

29

BOLT, HEXAGON (97101-08245)

97321-08245-00

1
Out of stock

30

BOLT (8M8)

90101-08374-00

—
Out of stock

31

NUT, U

95617-08100-00

—

$6.78

In stock

32

COLLAR

(90387-25471-00)

1
Out of stock

33

WASHER, PLATE

90201-25499-00

1
Out of stock

34

SLIDER 1

885-47441-00-00

1
Out of stock

35

BUSH, SPEC''L NYLON

90386-19081-00

1
Out of stock

36

BUSH, SPEC''L NYLON

(90386-25082-00)

1
Out of stock

37

ARM, PIVOT 2

(890-47332-00-00)

1
Out of stock

38

SHOCK ABSORBER

8E7-47480-01-00

—

$209.42

In stock

39

PIN, CLEVIS(8N0)

90240-12115-00

—

$16.35

In stock

40

PIN, COTTER

91490-30030-00

—

$7.15

In stock

41

SHAFT 2

(899-47475-00-00)

1
Out of stock

42

SPRING, TORSION

90508-95256-00

1
Out of stock

43

SPRING, TORSION

90508-95257-00

1
Out of stock

44

BRACKET, REAR 1

(890-47426-00-00)

1
Out of stock

45

BRACKET, REAR 2

(890-47425-00-00)

1
Out of stock

46

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

47

WASHER, CONICAL SPRING

90208-08011-00

1
Out of stock

48

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

49

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

50

BRACKET 5

890-47463-00-00

1
Out of stock

51

BOLT

97013-08035-00

—

$4.80

In stock

52

NUT, U

95617-08100-00

—

$6.78

In stock

53

HOOK 2

890-47447-00-00

—

$4.35

In stock

54

PIN WITH HOLE (890)

90249-12113-00

—

$8.37

In stock

55

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

56

PIN, COTTER

91490-30030-00

—

$7.15

In stock

57

ARM, PIVOT 1

(890-47331-10-00)

1
Out of stock

58

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

59

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

60

SHAFT 1

899-47465-00-00

1
Out of stock

61

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

62

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

63

STOPPER 1

890-47495-01-00

1
Out of stock

64

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

65

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

66

WASHER PLATE 137241870000

90201-06072-00

—
Out of stock

67

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

68

BRACKET 1

899-47415-00-00

1
Out of stock

69

BOLT (8M8)

90101-08374-00

—
Out of stock

70

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

71

NUT, U

95617-08100-00

—

$6.78

In stock
