1976 Yamaha GP300 Pump Drive-Gear Diagram

← All diagrams

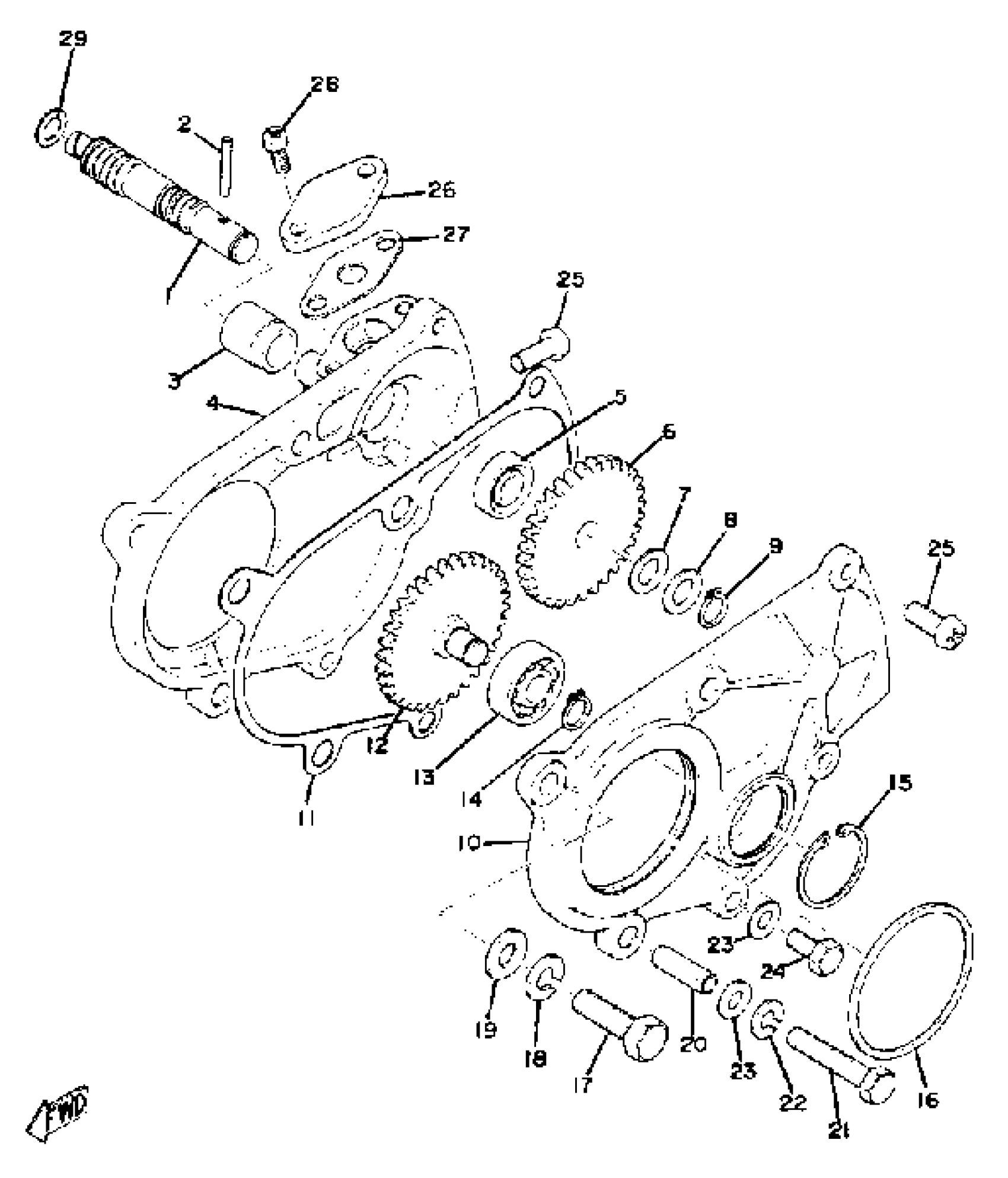

Find the part on the Pump Drive-Gear diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha GP300 Pump Drive-Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

860-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(839-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

COVER, OIL PUMP R

839-15426-00-00

1
Out of stock

11

GASKET 2

860-15466-01-00

1
Out of stock

12

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

13

—

$29.35

In stock

14

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

15

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

16

SEAL, GREASE

(838-13119-00-00)

1
Out of stock

17

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

PIN, DOWEL

91810-18022-00

1
Out of stock

21

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

SCREW, PAN

98507-06014-00

—

$6.18

In stock

26

CAP, HOUSING

824-17819-00-00

1
Out of stock

27

GASKET

821-17818-02-00

—

$5.66

In stock

28

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

29

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
