1976 Yamaha GP300 Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

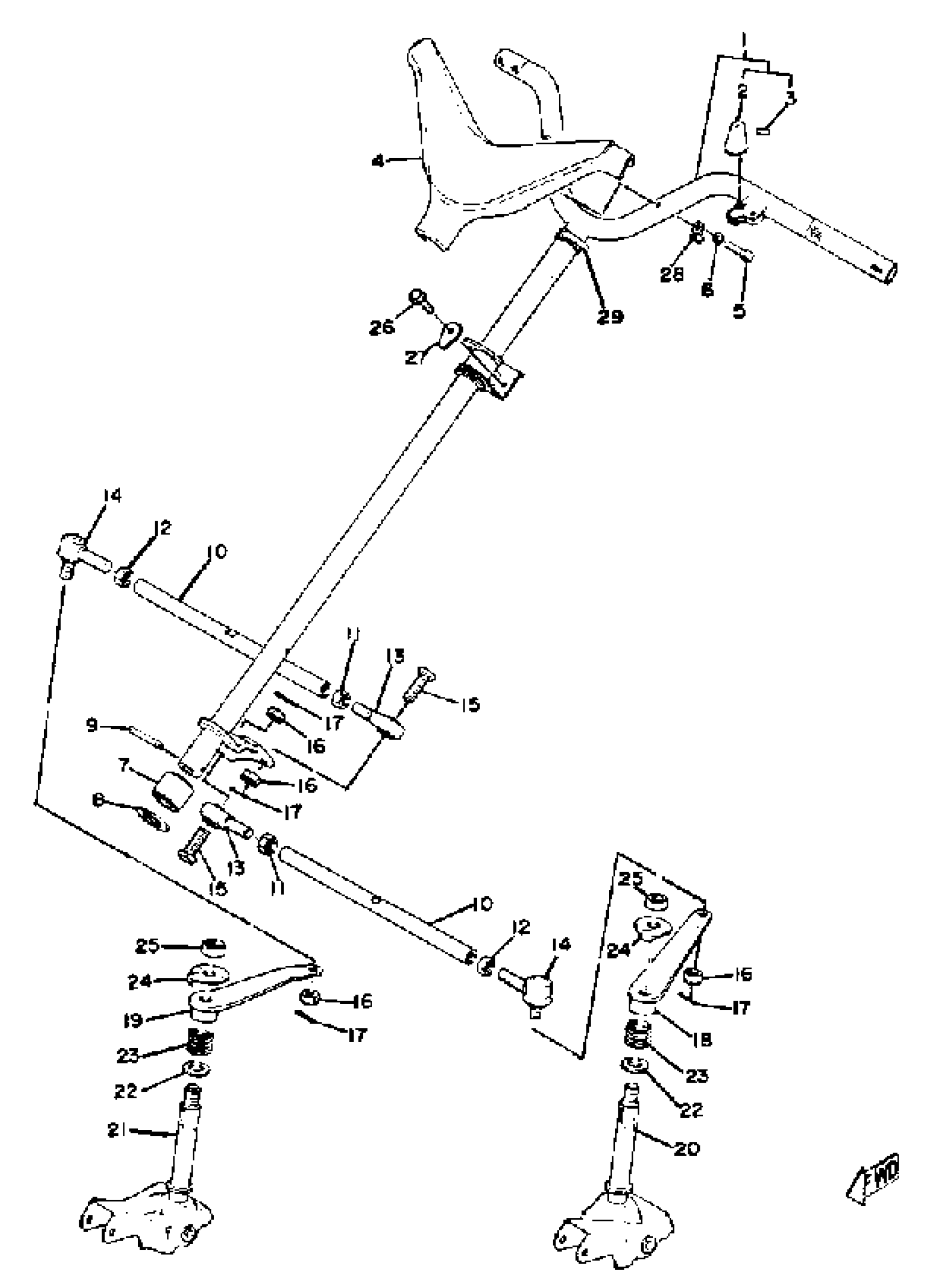

1976 Yamaha GP300 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRG COLUMN ASSEMBLY

(861-23810-01-00)

1
Out of stock

2

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

3

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock

4

PAD, STEERING

(863-23815-01-00)

1
Out of stock

5

SCREW, PAN

98507-05035-00

1

$6.69

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

8

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

9

PIN, SPRING

91609-60045-00

1
Out of stock

10

ROD, STEERING RELAY

(861-23821-00-00)

1
Out of stock

11

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

12

NUT (821-23834-00)

90170-12054-00

1
Out of stock

13

JOINT, UNIVERSAL 1

861-23841-00-00

1
Out of stock

14

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

15

BOLT

90109-10409-00

1
Out of stock

16

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

17

PIN, COTTER

91490-25020-00

—

$2.94

In stock

18

ARM, OUTSIDE 1

861-23851-01-00

1
Out of stock

19

ARM, OUTSIDE 2

861-23852-01-00

1
Out of stock

20

COLUMN, SKI 1

(899-23853-00-00)

1
Out of stock

21

COLUMN, SKI 2

(899-23854-00-00)

1
Out of stock

22

SPACER

90560-20037-00

1
Out of stock

23

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

24

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

25

NUT(3DM)

95304-12600-00

—

$6.68

In stock

26

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

27

WASHER, LOCK

(90215-06038-00)

1
Out of stock

28

CLAMP

(90462-08003-00)

1
Out of stock

29

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
