1976 Yamaha GP300 SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

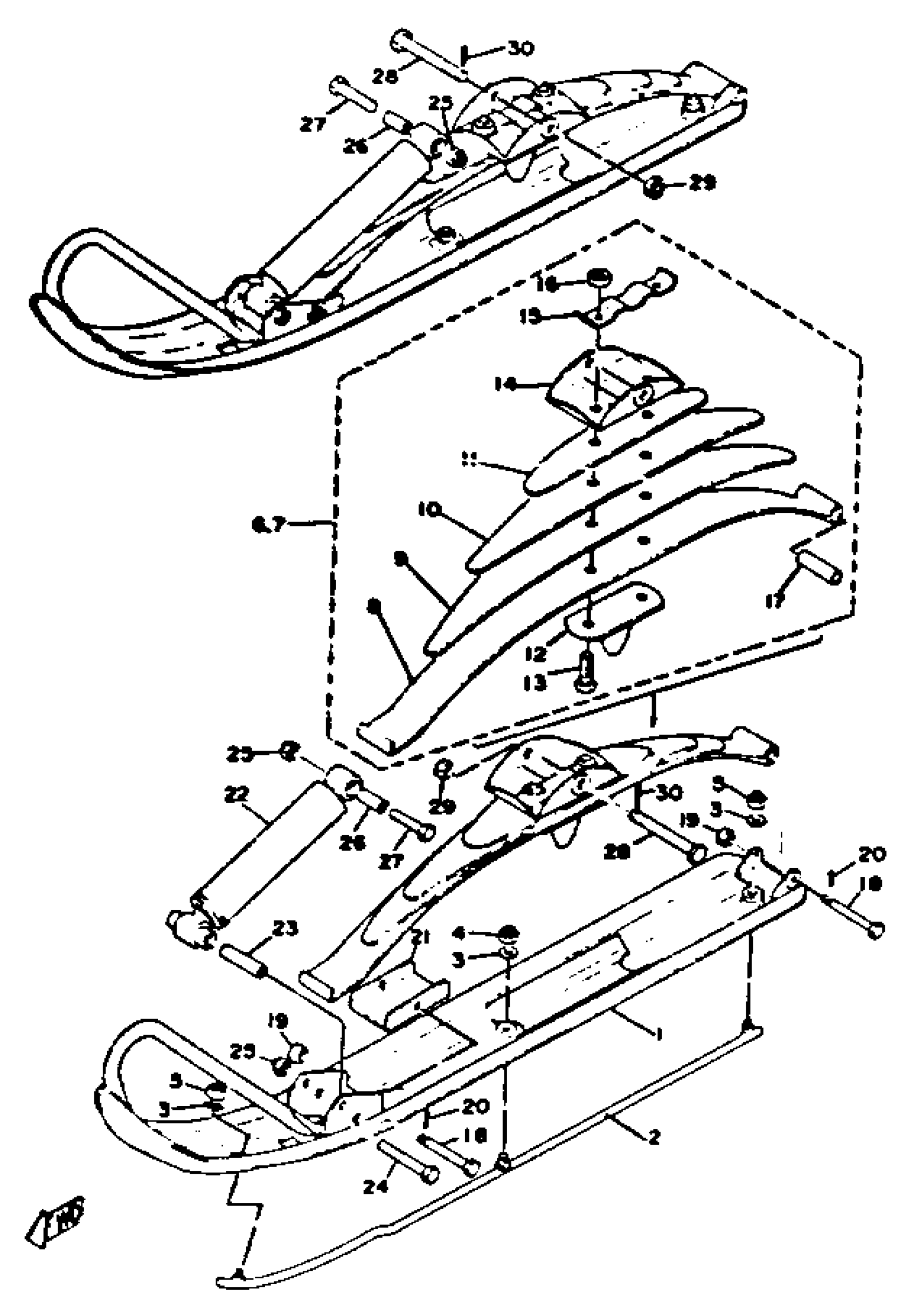

1976 Yamaha GP300 SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

890-23731-01-00

1
Out of stock

2

SPRING ASSEMBLY 2

(899-23770-00-00)

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

NUT, U

95617-08100-00

1

$6.78

In stock

6

SPRING ASSEMBLY 1

899-23760-00-00

1
Out of stock

8

LEAF 1

888-23761-10-00

1
Out of stock

9

LEAF 2

865-23762-10-00

1
Out of stock

10

LEAF 3

899-23763-10-00

—

$33.34

In stock

11

LEAF 4

899-23764-10-00

1
Out of stock

12

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

13

. BOLT

90109-105E7-00

1
Out of stock

14

SADDLE 1

(841-23766-00-00)

1
Out of stock

15

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

16

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

17

COLLAR

90387-08478-00

1
Out of stock

18

BOLT, WITH HOLE

90102-08025-00

1
Out of stock

19

NUT, SLOTTED

95307-08900-00

1
Out of stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

22

SHOCK ABSORBER ASSEMBLY

8F7-23350-00-00

1
Out of stock

23

COLLAR (864)

90387-08224-00

—

$7.52

In stock

24

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

25

NUT

90185-08055-00

1

$8.31

In stock

26

COLLAR

90387-08223-00

1
Out of stock

27

BOLT

97013-08045-00

—
Out of stock

28

BOLT, WITH HOLE

90102-10024-00

1
Out of stock

29

NUT, SLOTTED

95306-10900-00

1
Out of stock

30

PIN, COTTER

91490-25020-00

—

$2.94

In stock
