Description

Price

1

AXLE, REAR

(885-47521-01-00)

Unavailable

2

COLLAR 3

885-47479-00-00

Unavailable

3

PIN, SPRING (663)

91690-40040-00

Unavailable

4

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

5

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

6

CIRCLIP(48Y)

99009-47500-00

$9.49

7

WASHER, SPEC''L SHAP

90209-08124-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT (682)

97013-08025-00

$8.49

10

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

WASHER, SPEC''L SHAP

90209-06137-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

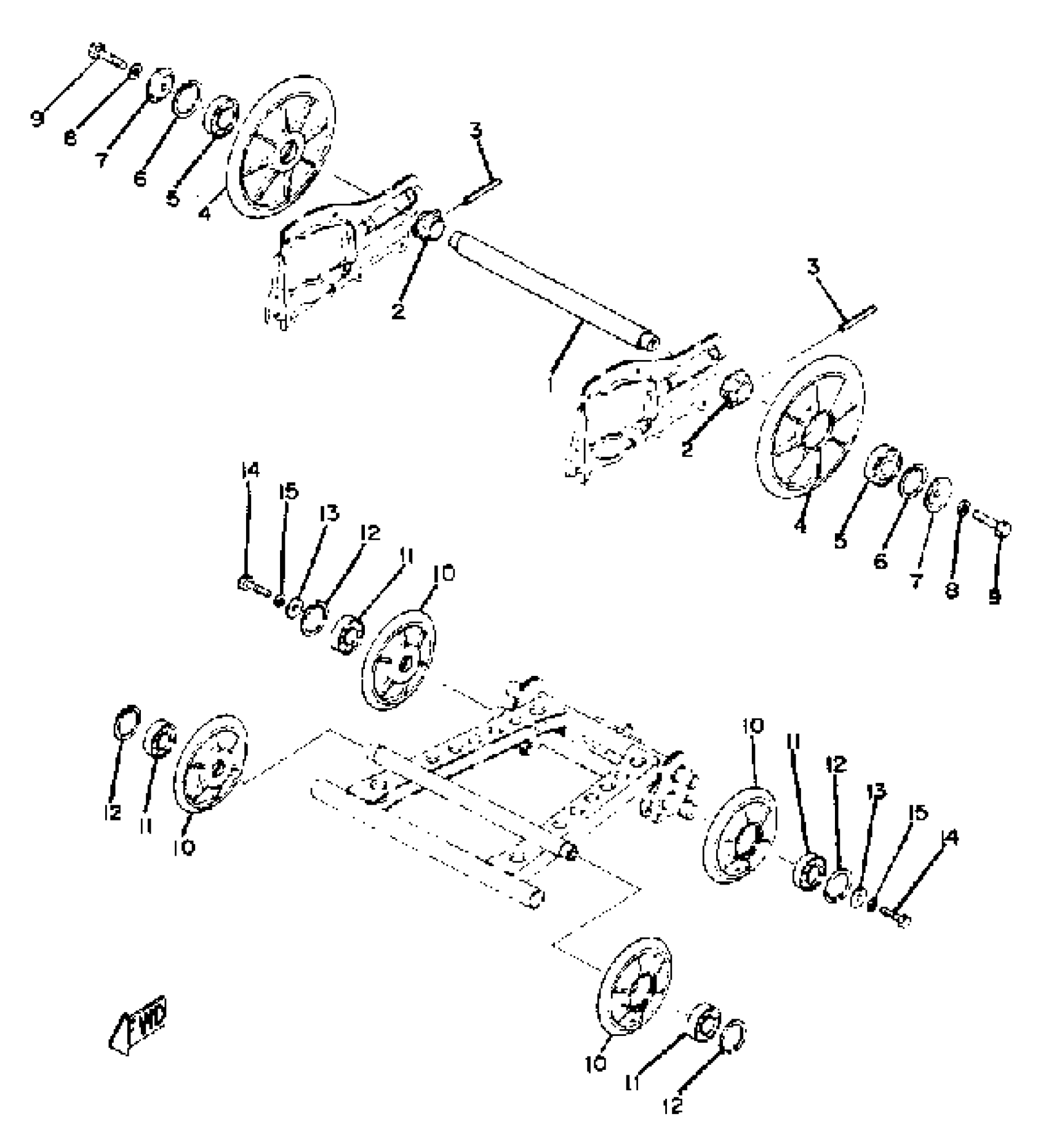

Yamaha GP300 1976 REAR AXLE-WHEEL Diagram

AXLE, REAR

COLLAR 3

PIN, SPRING (663)

WHEEL GUIDE COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

WASHER, SPEC''L SHAP

YBS67-8 WASHER, SPRING

BOLT (682)

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

WASHER, SPEC''L SHAP

BOLT, HEXAGON

WASHER, SPRING
