OIL PUMP

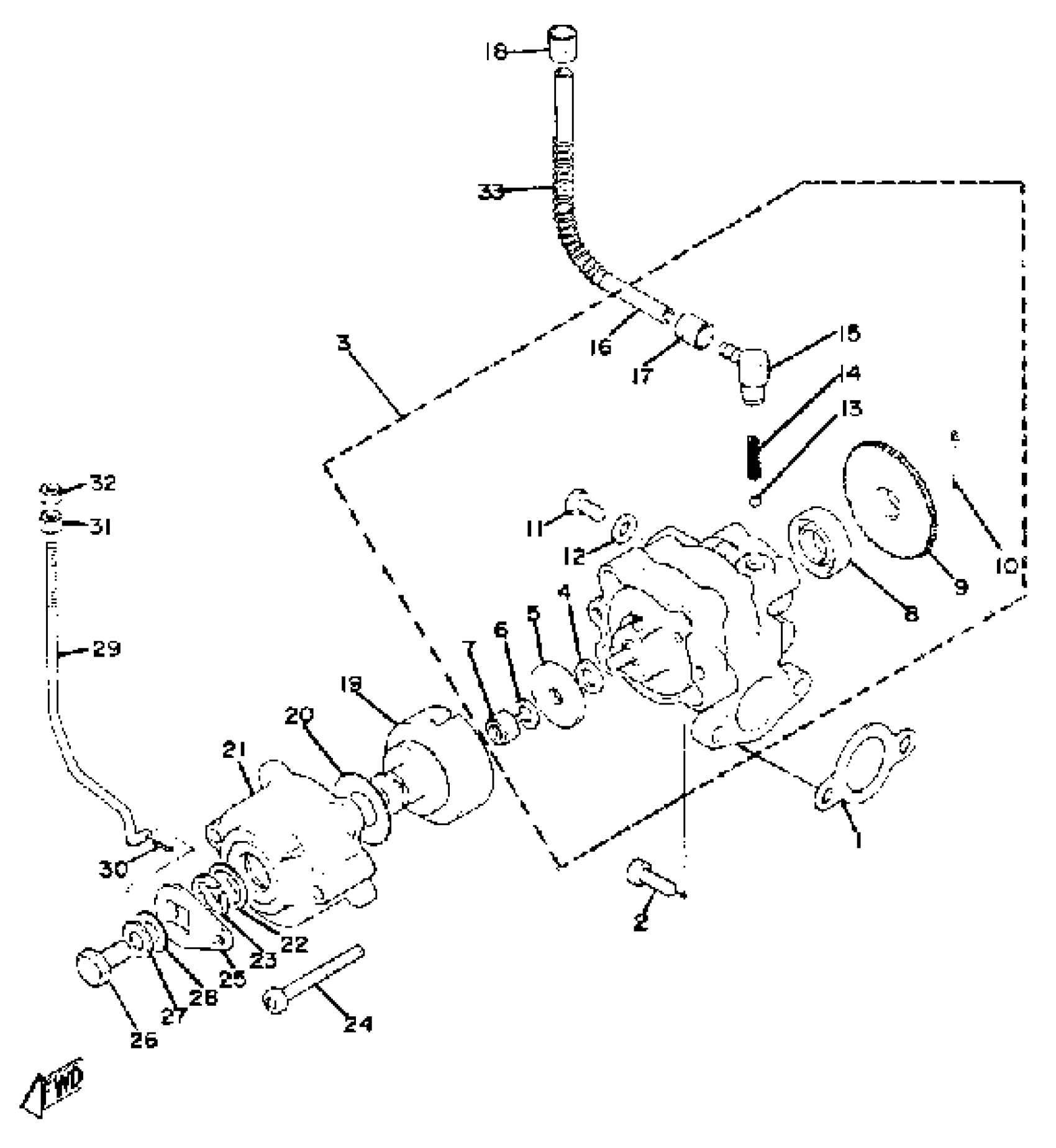

Yamaha GP300 1976 OIL PUMP Diagram
#
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
2
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
3
OIL PUMP ASSEMBLY
(899-13101-00-00)
Unavailable
4
SHIM,PLUNGER
137-13137-00-10
$7.99
4
SHIM, PLUNGER
(137-13137-00-30)
Unavailable
5
PLATE, ADJUSTING
137-13138-01-00
Unavailable
6
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
7
NUT, HEXAGON (663)
95380-05600-00
$8.49
8
OIL SEAL (J10)
93101-10090-00
$8.49
9
PLATE, STARTER
(137-13128-00-00)
Unavailable
10
PIN, COTTER
91490-16020-00
Unavailable
11
BOLT
(90109-04178-00)
Unavailable
12
GASKET 137131870000
90430-04004-00
$9.49
13
BALL
93505-32002-00
$2.92
14
SPRING (278-13169-00)
90501-02018-00
$9.49
15
NOZZLE
353-13552-01-00
Unavailable
16
HOSE (L700)
90445-05M07-00
Unavailable
17
CLIP (214-13164-00)
90468-02033-00
Unavailable
18
CLIP (214-13164-00)
90468-02033-00
Unavailable
19
SHAFT, PUMP CONTROL
860-13153-00-00
Unavailable
20
SEAL, GREASE
860-13119-00-00
Unavailable
21
COVER, AJST PULLEY
(812-13146-00-00)
Unavailable
22
SHIM
(812-13147-00-00)
Unavailable
23
CIRCLIP(J51)
99080-09600-00
Unavailable
24
SCREW, PAN
98507-04030-00
Unavailable
25
LEVER, PUMP CONTROL
(812-13156-00-00)
Unavailable
26
BOLT (661)
97013-06012-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
Unavailable
29
ROD, PUMP CONTROL
864-13157-00-00
Unavailable
30
. PIN, COTTER
91490-12012-00
Unavailable
31
NUT, HEXAGON (807-13139-00)
90170-03008-00
Unavailable
32
NUT, SELF-LOCKING (838-13139-00)
90185-03007-00
Unavailable
33
SPRING, COMPRESSION
(90501-04019-00)
Unavailable
