1976 Yamaha GP300 Fuel Tank Diagram

← All diagrams

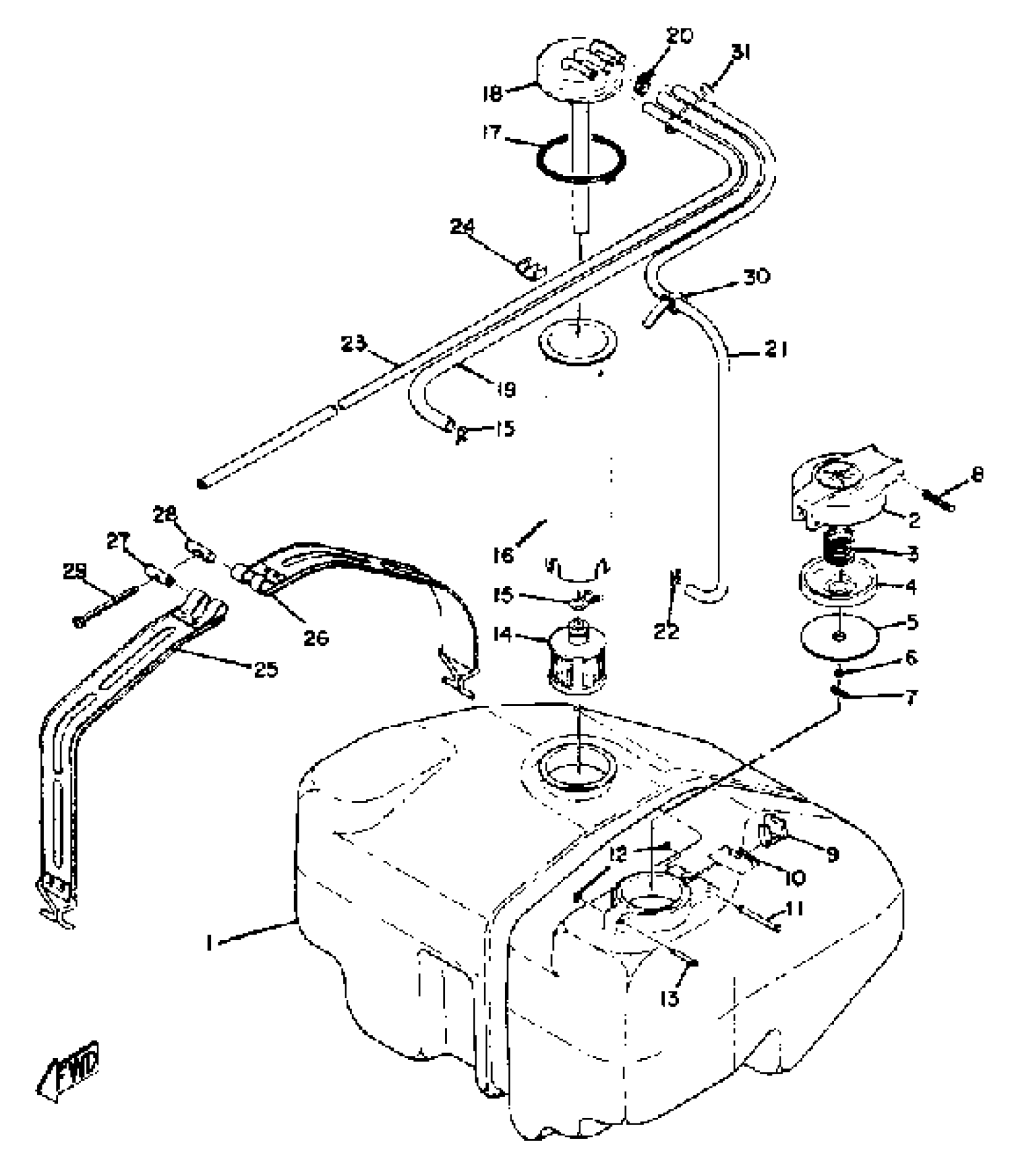

Find the part on the Fuel Tank diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha GP300 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

865-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

HOOK

83M-24628-00-00

1

$19.68

In stock

10

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

11

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

PIN (813)

90249-03017-00

1

$2.25

In stock

14

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

15

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

16

PIPE, SUCTION 2

865-24336-00-00

1
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

18

PIPE, SUCTION 1

(865-24335-00-00)

1
Out of stock

19

HOSE

(90446-11035-00)

1
Out of stock

20

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

21

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

22

CLAMP, HOSE

90460-09001-00

1
Out of stock

23

HOSE

90446-09057-00

1
Out of stock

24

CLIP (867)

90468-15020-00

—
Out of stock

25

UNAVAILABLE IN PRICE BOOK

96524-17300-00

1
Out of stock

26

BAND, TNK FITTING 2

(865-24199-00-00)

1
Out of stock

27

CLAMP

806-24135-00-00

—

$3.20

In stock

28

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

29

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

31

CLAMP

(90465-11025-00)

1
Out of stock
