1976 Yamaha GP300 Carburetor Diagram

← All diagrams

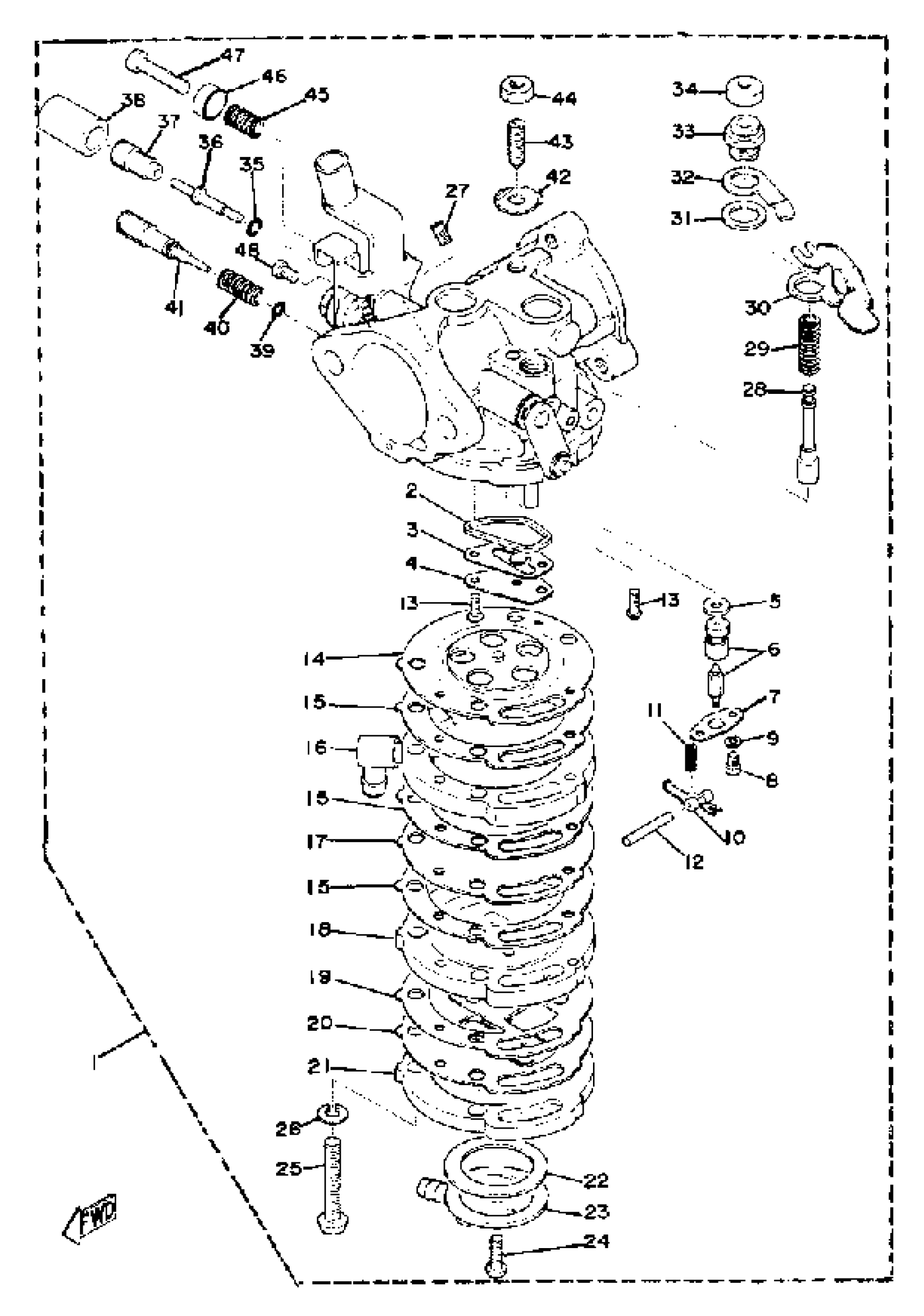

Find the part on the Carburetor diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha GP300 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(899-14101-00-00)

1
Out of stock

2

GASKET

(878-24468-00-00)

1
Out of stock

3

VALVE, CHECK SEAT

(878-14272-00-00)

1
Out of stock

4

PLATE, NEEDLE FTNG

(878-14946-00-00)

1
Out of stock

5

WASHER, NEEDLE VLV

(849-14195-00-00)

1
Out of stock

6

. NEEDLE VALVE ASSEMBLY

864-14190-15-00

1
Out of stock

7

PLATE

(849-14146-00-00)

1
Out of stock

8

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

9

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

10

ARM, DIAPHRAGM

(864-14387-00-00)

1
Out of stock

11

SPRING, DIAPHRAGM

(812-24423-00-00)

1
Out of stock

12

. PIN, FLOAT

439-14186-00-00

1

$12.49

In stock

13

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

14

. DIAPHRGM

849-24471-00-00

1
Out of stock

15

. GASKET, BODY

849-24434-00-00

1
Out of stock

16

BODY 1

(849-24412-00-00)

1
Out of stock

17

. DIAPHRAGM

849-24411-00-00

1
Out of stock

18

BODY 2

(849-24413-00-00)

1
Out of stock

19

. GASKET, BODY 2

849-24435-00-00

1
Out of stock

20

. VALVE, CHECK

849-24421-00-00

1
Out of stock

21

BODY 3

(849-24414-00-00)

1
Out of stock

22

. GASKET

812-24468-00-00

1
Out of stock

23

. COVER

812-24452-00-00

1
Out of stock

24

. SCREW

812-24453-00-00

1
Out of stock

25

SCREW, PAN

98507-05035-00

—

$6.69

In stock

26

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

27

JET, PILOT (#72.5)

620-14142-72-00

1
Out of stock

28

PLUNGER, STARTER

849-14171-00-00

1
Out of stock

29

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

30

LEVER, STARTER 1

(849-14175-00-00)

1
Out of stock

31

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

32

PLATE, STARTER LVR

(849-14178-00-00)

1
Out of stock

33

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

34

COVER, PLUNGER CAP

(849-14173-00-00)

1
Out of stock

35

JET, MAIN #130

(849-14143-26-00)

1
Out of stock

35

JET, MAIN #135

(849-14143-27-00)

1
Out of stock

35

O-RING (248)

93210-03119-00

—
Out of stock

36

JET, MAIN #140

(849-14143-28-00)

1
Out of stock

36

JET, MAIN #145

(849-14143-29-00)

1
Out of stock

37

SCREW, GUIDE

(849-14245-00-00)

1
Out of stock

38

CAP

(849-14169-00-00)

1
Out of stock

39

O-RING

(849-14147-00-00)

1
Out of stock

40

SPRING, PILOT ADJUSTING

(849-14212-00-00)

1
Out of stock

41

SCREW, AIR ADJUSTING

(849-14123-00-00)

1
Out of stock

42

WASHER

(849-14596-00-00)

1
Out of stock

43

SCREW

(849-24453-00-00)

1
Out of stock

44

NUT

(849-14595-00-00)

1
Out of stock

45

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

46

CAP

(864-14118-00-00)

1
Out of stock

47

SCREW, THROTTLE

(864-14922-00-00)

1
Out of stock

48

SCREW

(864-24453-00-00)

1
Out of stock
