1976 Yamaha GP300 Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

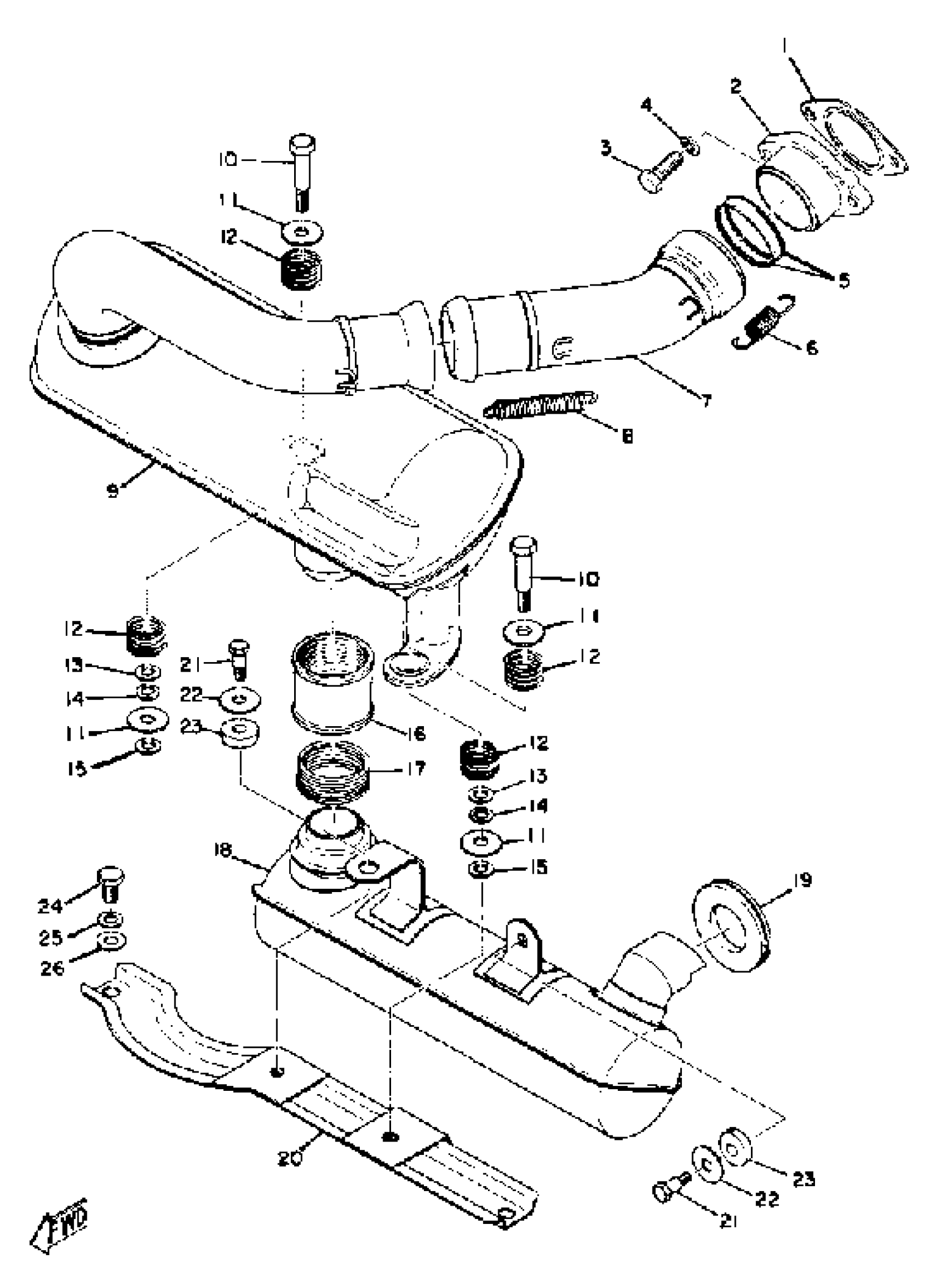

1976 Yamaha GP300 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, EXHAUST

834-14613-09-00

—

$12.89

In stock

2

NUT, RING

(853-14612-00-00)

1
Out of stock

3

BOLT (682)

97013-08025-00

1

$6.80

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

GASKET, EXST PIPE

(812-14623-00-00)

1
Out of stock

6

SPRING, HOOK (864)

90506-20074-00

1

$7.74

In stock

7

EXHAUST PIPE ASSEMBLY L

860-14610-02-00

1
Out of stock

8

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

9

MUFFLER ASSEMBLY L

864-14710-00-00

1
Out of stock

10

BOLT

90109-08293-00

1
Out of stock

11

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

12

SPRING, MUFFLER

853-14773-02-00

1
Out of stock

13

SPACER

(90560-08065-00)

1
Out of stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

WASHER, PLATE

(90201-07080-00)

1
Out of stock

16

GASKET, MUFFLER

841-14714-00-00

1
Out of stock

17

SPRING, COMPRESSION

(90504-30004-00)

1
Out of stock

18

MUFFLER ASSEMBLY R

(860-14720-01-00)

1
Out of stock

19

PROTECTOR, MUFF 1

841-14718-00-00

1
Out of stock

20

STAY, MUFFLER 1

(860-14771-01-00)

1
Out of stock

21

BOLT 306258330000

90109-06018-00

—

$7.92

In stock

22

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

23

WASHER, PLATE

90202-08085-00

1
Out of stock

24

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

26

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
