1976 Yamaha GP300 Crankcase-Cylinder Diagram

← All diagrams

Find the part on the Crankcase-Cylinder diagram for your 1976 Yamaha GP300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

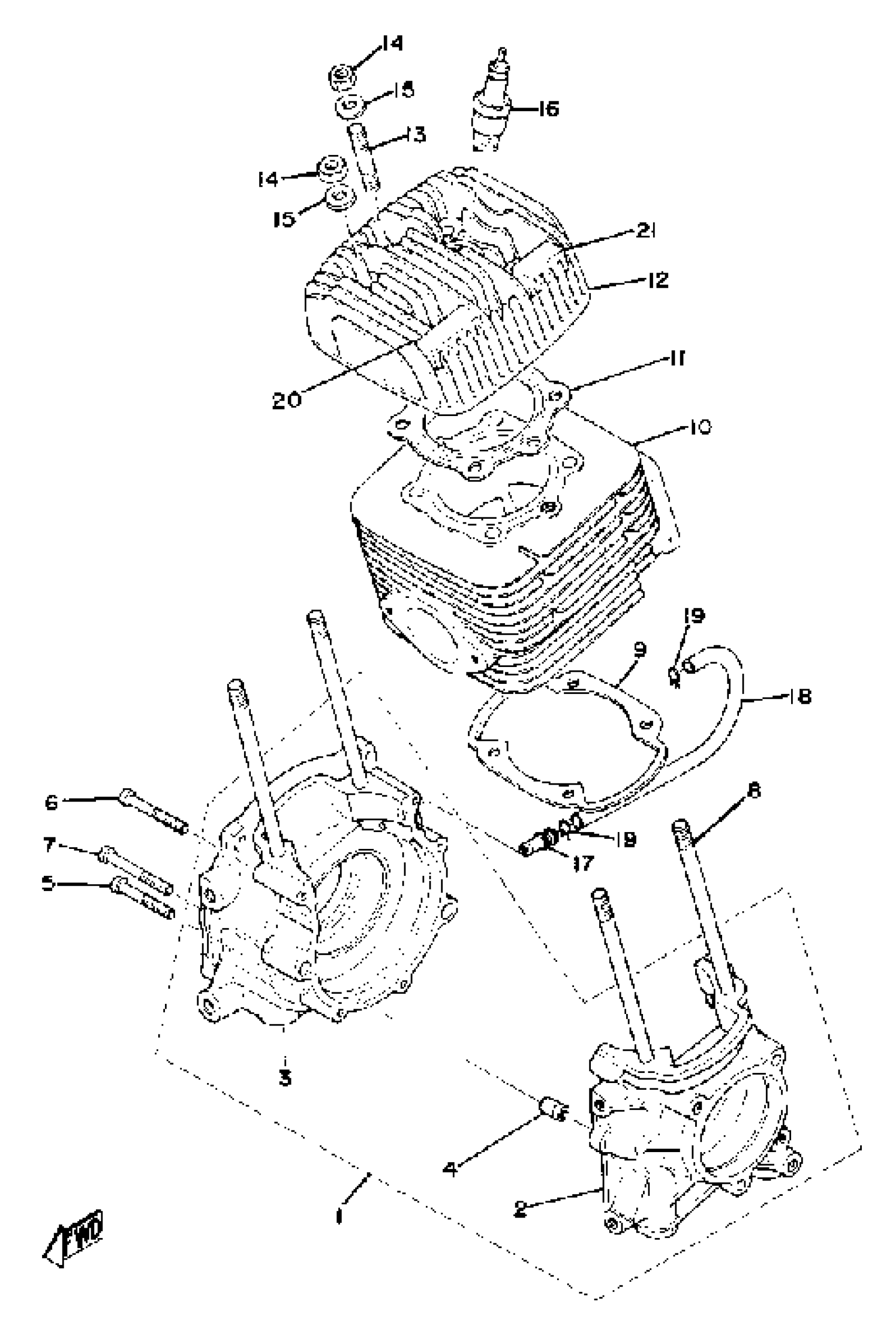

1976 Yamaha GP300 Crankcase-Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

839-15100-00-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

7

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

8

BOLT, STUD

(90116-08083-00)

1
Out of stock

9

GASKET, CYLINDER

812-11351-09-00

1
Out of stock

10

CYLINDER 1

(864-11311-00-00)

1
Out of stock

11

GASKET, CYLINDER HEAD 1

812-11181-00-00

1
Out of stock

12

HEAD, CYLINDER 1

(845-11111-00-00)

1
Out of stock

13

BOLT, STUD

90116-08057-00

1
Out of stock

14

NUT, HOLDING (812-11171-00)

812-11171-00-00

1
Out of stock

15

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

16

NGK BR8EV 4PK

NGK-BR8EV-00-00

1
Out of stock

17

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

18

HOSE (6-120) (813-24316-00)

90445-10132-00

1
Out of stock

19

CLIP

90467-090A2-00

—

$2.51

In stock

20

ABSORBER 1

(899-11161-00-00)

1
Out of stock

21

ABSORBER 2

(899-11162-00-00)

1
Out of stock
