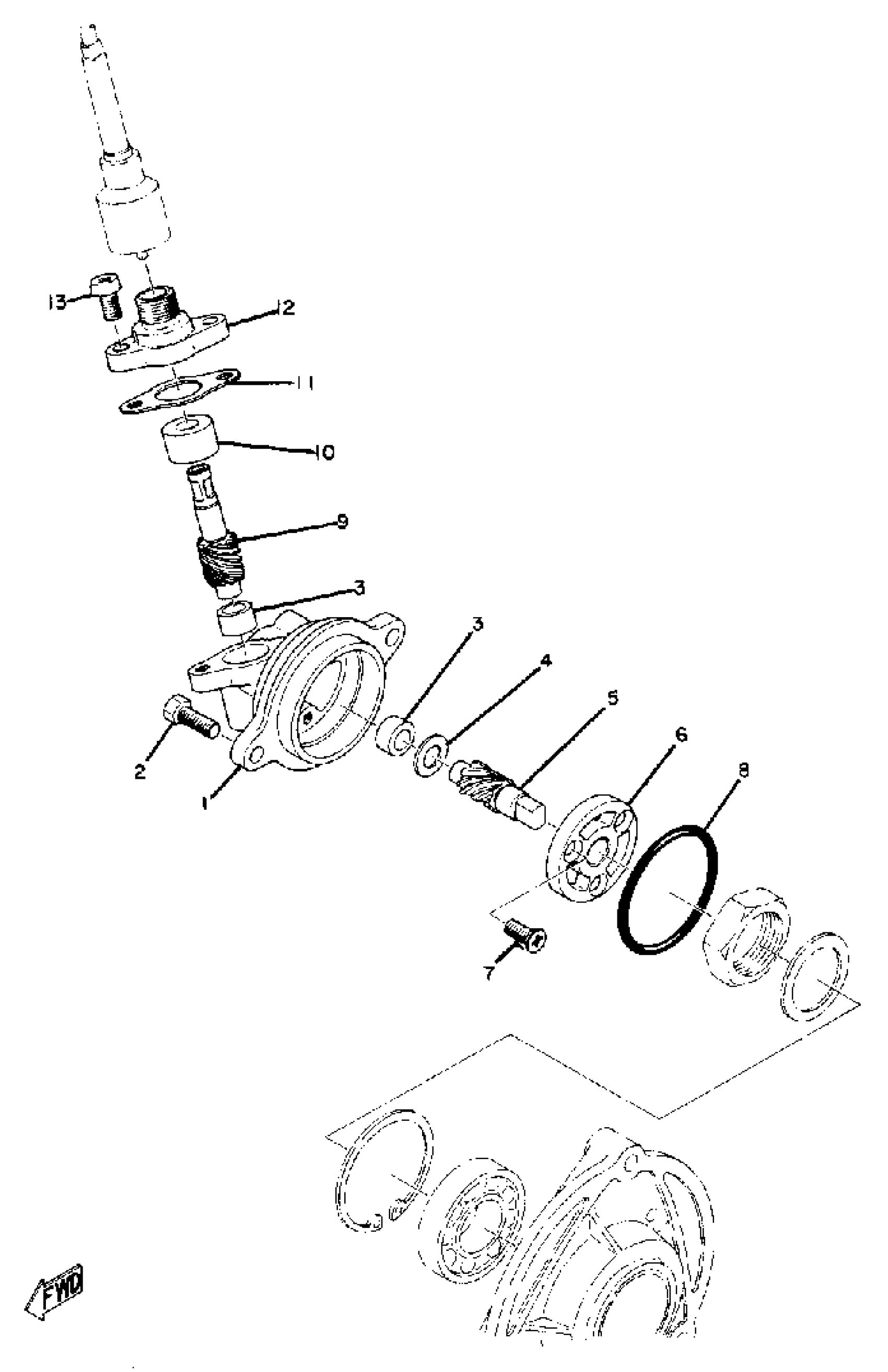

Yamaha GP292F 1974 SPEEDOMETER GEAR UNIT Diagram

#

Description

Price

1

HOUSING

8E6-47711-10-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

BUSH, SOLID

(90380-08002-00)

Unavailable

4

SHIM

810-47717-10-00

Unavailable

5

GEAR, DRIVE

810-47731-11-00

Unavailable

6

JOURNAL

853-47712-10-00

Unavailable

7

SCREW, FLAT

98707-04012-00

$2.18

8

O-RING

93210-43141-00

Unavailable

9

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

Unavailable

10

BUSH, SOLID

90380-08005-00

Unavailable

11

GASKET

810-47727-11-00

Unavailable

12

COVER, METER HOUSING

8E3-47721-10-00

Unavailable

13

SCREW,PAN HEAD (646)

98580-05012-00

$7.99
