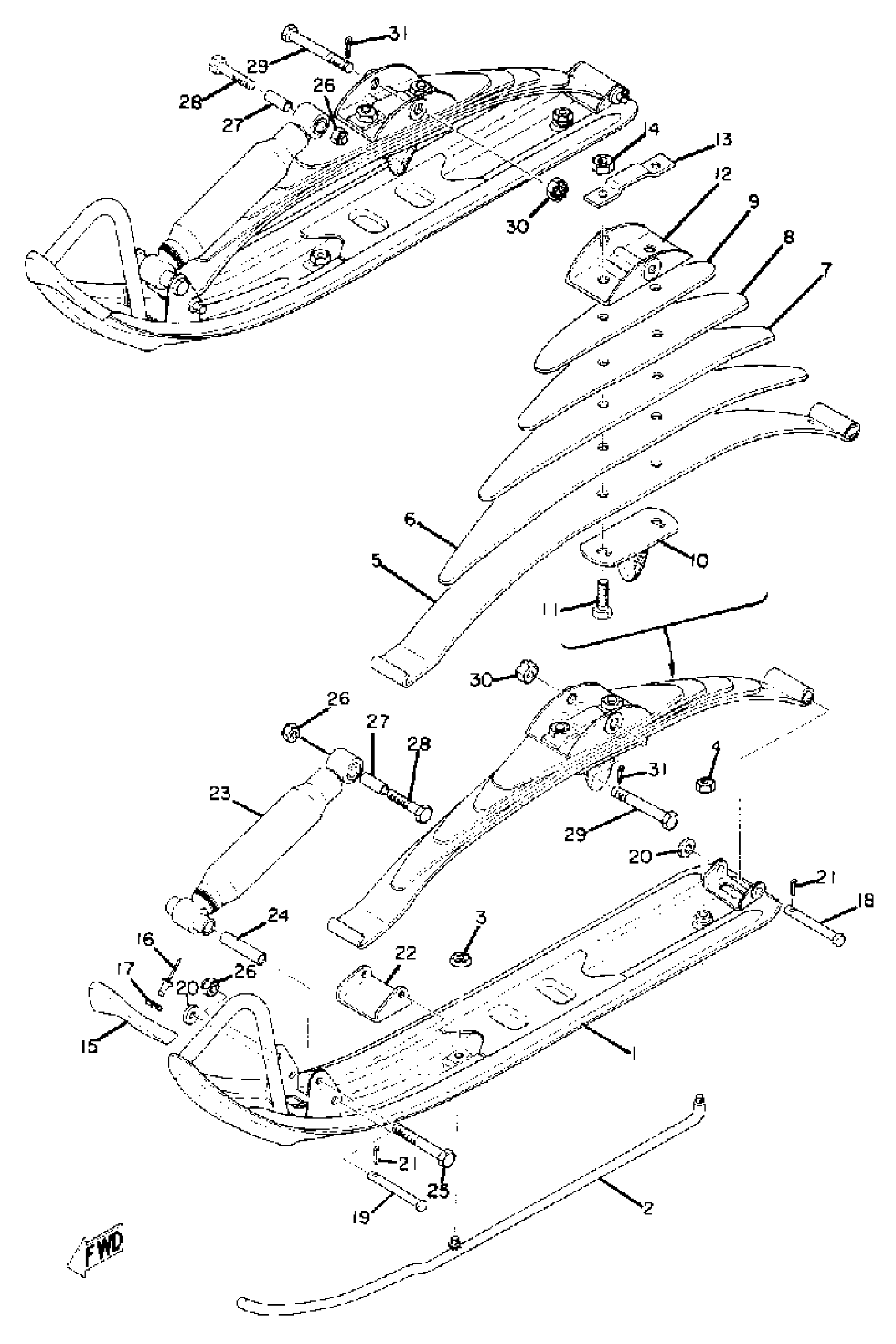

Yamaha GP292F 1974 SKI Diagram
#
1
SKI 1
864-23710-02-00
Unavailable
1
SPRING ASSEMBLY 1
(864-23760-00-00)
Unavailable
2
SKI RUNNER, (SV80)
853-23731-00-XX
Unavailable
2
SPRING ASSEMBLY 2
(864-23770-00-00)
Unavailable
3
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
4
NUT
90185-08055-00
$9.49
5
LEAF 1
(865-23761-00-00)
Unavailable
6
LEAF 2
865-23762-10-00
Unavailable
7
. LEAF 3
865-23763-00-00
Unavailable
8
LEAF 4
(865-23764-00-00)
Unavailable
9
. LEAF 5
865-23771-00-00
Unavailable
10
. SEAT, SPRING 1
878-23768-00-00
Unavailable
11
. BOLT
90101-10060-00
Unavailable
12
. SADDLE 1
806-23766-00-00
Unavailable
13
WASHER, SPEC''L SHAP
(90209-10037-00)
Unavailable
14
NUT(6TD)
95337-10600-00
Unavailable
15
PROTECTOR, SKI
867-23747-00-00
Unavailable
16
RIVET, BLIND
90267-40029-00
Unavailable
17
WASHER, PLATE (820-77116-00)
90201-04023-00
Unavailable
18
PIN, CLEVIS
90240-08018-00
Unavailable
19
PIN, CLEVIS
90240-08019-00
Unavailable
20
WASHER(6TC)
92907-08200-00
Unavailable
21
PIN COTTER
91490-30025-00
Unavailable
22
PLATE, WEAR 1
853-23735-00-00
Unavailable
23
SHOCK ABSORBER ASSEMBLY
8F7-23350-00-00
Unavailable
24
COLLAR (864)
90387-08224-00
Unavailable
25
BOLT, HEXAGON (ISO) (97206-08070)
97306-08070-00
Unavailable
26
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
27
COLLAR
90387-08223-00
Unavailable
28
BOLT(3HN)
97017-08045-00
Unavailable
29
BOLT, WITH HOLE
90102-10023-00
Unavailable
30
NUT, SLOTTED
95306-10900-00
Unavailable
31
PIN, COTTER
91490-20025-00
Unavailable
