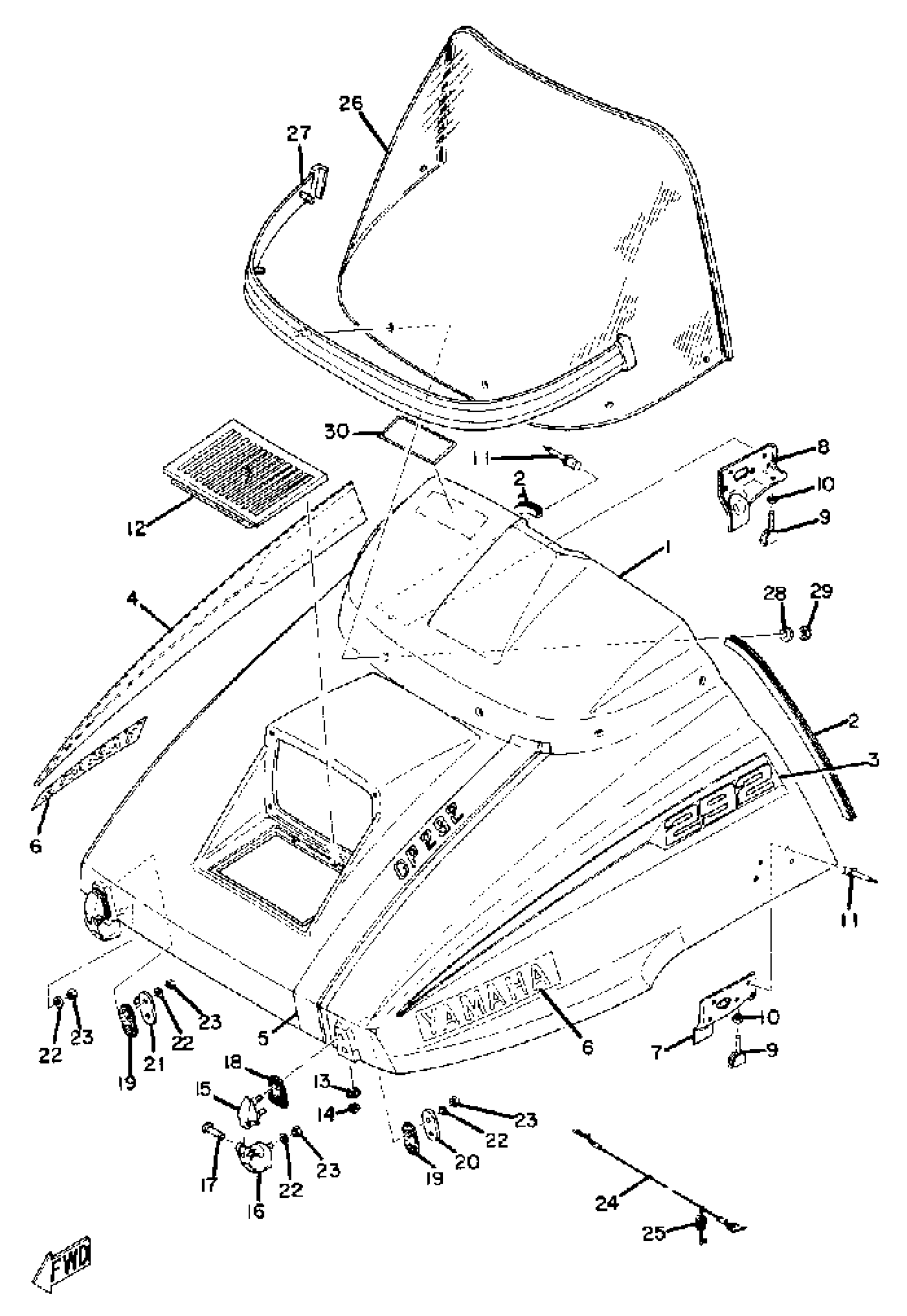

Yamaha GP292F 1974 SHROUD Diagram

#

Description

Price

1

SHROUD

(853-77111-00-00)

Unavailable

2

TRIM 2

(853-77166-00-00)

Unavailable

3

ORNAMENT 1

(867-77163-00-00)

Unavailable

4

ORNAMENT 2

867-77164-00-00

Unavailable

5

ORNAMENT 3

(864-77169-01-00)

Unavailable

6

EMBLEM 7

(863-77357-00-00)

Unavailable

7

CLAMP 2

(841-77136-00-00)

Unavailable

8

CLAMP 4

(841-77138-00-00)

Unavailable

9

BODY, LATCH 1

(841-77171-01-00)

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

RIVET, BLIND

90267-40936-00

Unavailable

12

LOUVER 1

853-77131-00-00

Unavailable

13

EMBLEM 3

838-77143-00-00

Unavailable

14

NUT 6504269100

90183-05003-00

$9.49

15

HINGEASSEMBLY

(841-77140-00-00)

Unavailable

16

HINGE 3

(841-77147-00-00)

Unavailable

17

PIN

90243-05003-00

Unavailable

18

DAMPER 2

841-77199-00-00

Unavailable

19

DAMPER 1

(841-77198-00-00)

Unavailable

20

PLATE, BACK UP 1

(841-77153-00-00)

Unavailable

21

PLATE, BACK UP 2

(841-77154-00-00)

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

STOPPER, SHROUD

8E4-77118-00-00

Unavailable

26

WINDSHIELD

853-77210-00-00

Unavailable

27

TRIM LOWER ASSEMBLY

(853-77220-00-00)

Unavailable

28

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

29

NUT, SELF-LOCKING

90185-05028-00

Unavailable

30

LABEL, SAFETY

288-21659-00-00

Unavailable
